2002 Four-Stroke Outboard 25 - DF25 UNDER OIL SEAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

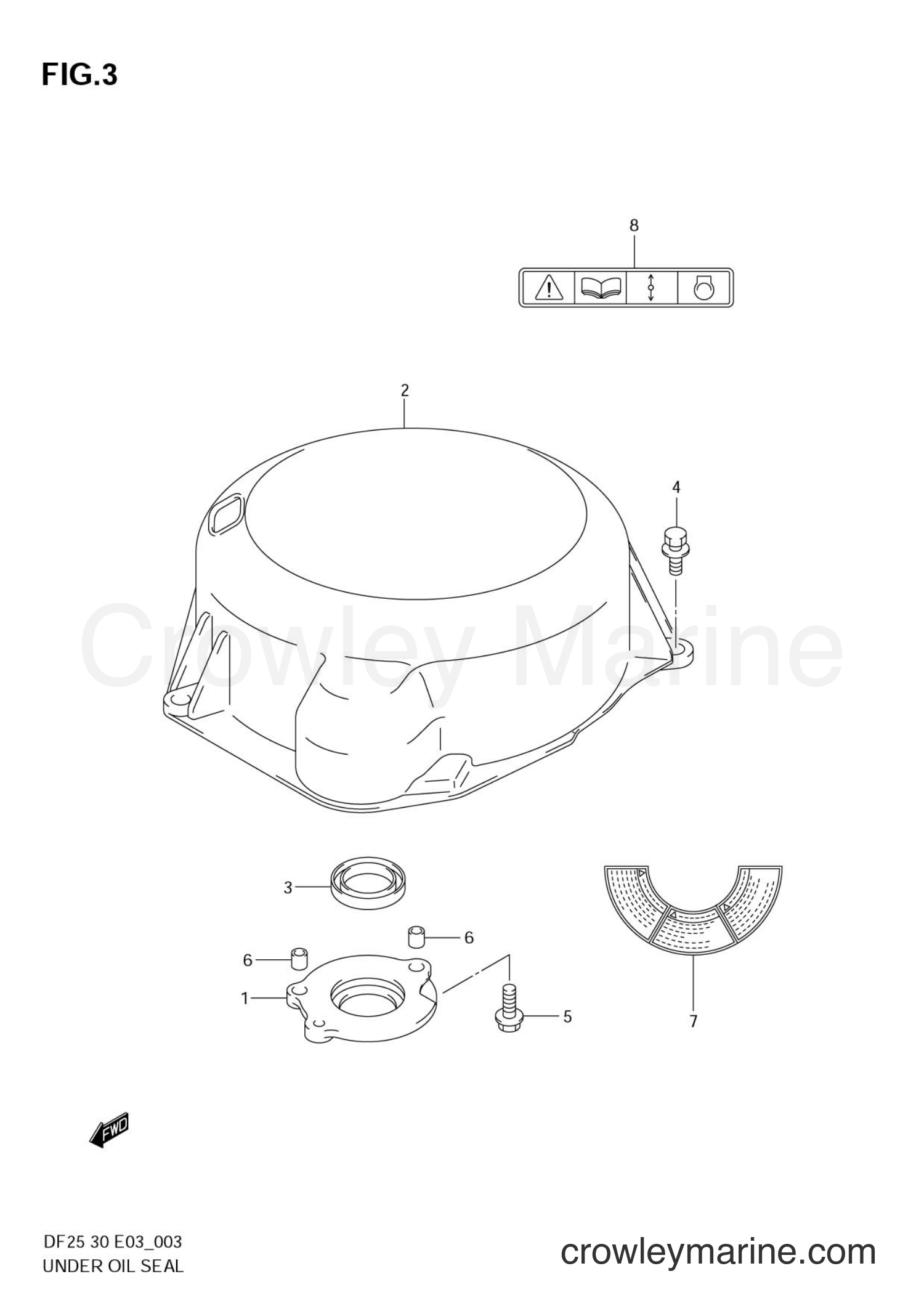

Suzuki Marine DF25 - UNDER OIL SEAL
Change View:
Obsolete Suzuki Part
1
Suzuki Marine
Obsolete Suzuki Part11431-89J00
Required: 1
HOUSING, UNDER OIL SEAL
Cross Ship
Leaves in 2-5 days
$16.14
$13.72
You save $2.42
More details
COVER,MAGNETO
2
Suzuki Marine
COVER,MAGNETO11511-89J00
Required: 1
COVER, MAGNETO
Cross Ship
Leaves in 2-5 days
$38.10
$32.38
You save $5.72
More details
COVER,MAGNETO
2
Suzuki Marine
COVER,MAGNETO11511-89J00
Required: 1
COVER, MAGNETO
Cross Ship
Leaves in 2-5 days
$38.10
$32.38
You save $5.72
More details
SEAL,DRIVE SHAF
3
Suzuki Marine
SEAL,DRIVE SHAF12281-87J00
Required: 1
SEAL, CRANKSHAFT UNDER OIL
Cross Ship
Leaves in 2-5 days
$18.93
$16.09
You save $2.84
More details
BOLT
5
Suzuki Marine
BOLT01560-0625A
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.87
$2.44
You save $0.43
More details
DOWEL PIN
6
Suzuki Marine
DOWEL PIN04211-09109
Required: 2
PIN
Cross Ship
Leaves in 2-5 days
$1.99
$1.69
You save $0.30
More details
LABEL,RECOIL ST
7
Suzuki Marine
LABEL,RECOIL ST61472-93E32
Required: 1
LABEL, MAGNETO COVER
Cross Ship
Leaves in 2-5 days
$7.73
$6.57
You save $1.16
More details
LABEL,S.I.G.P
8
Suzuki Marine
LABEL,S.I.G.P69711-93E10
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$4.66
$3.96
You save $0.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
