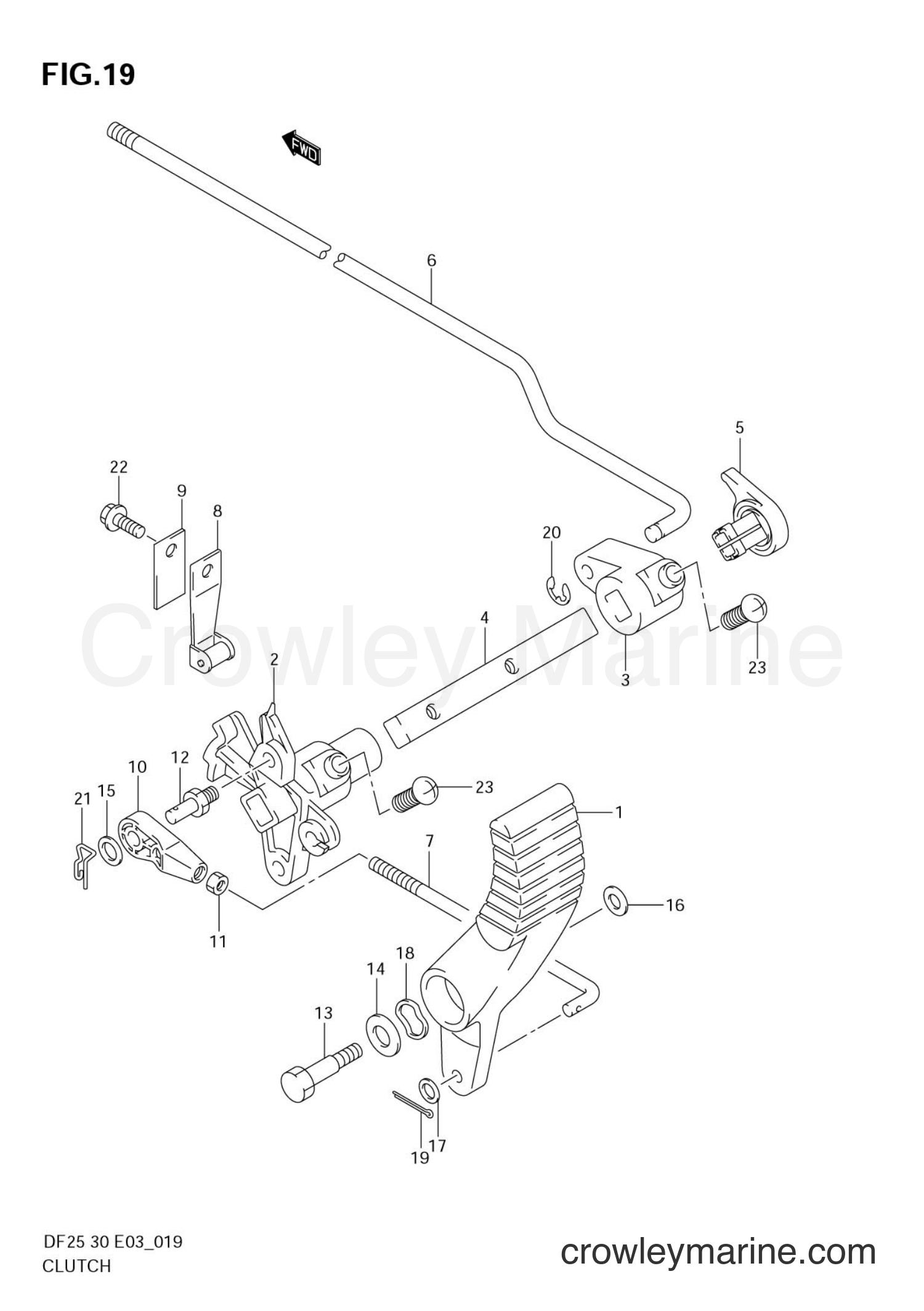

2005 Four-Stroke Outboard 25 - DF25 CLUTCH (TYPE:Q) diagram
1
Suzuki Marine
Obsolete Suzuki Part21111-89J00
Required: 1
LEVER, FRONT SHIFT
$12.59
You save $2.22
1
Required: 1
LEVER, FRONT SHIFT
Price unavailable
2
Suzuki Marine
PLATE,CLUTCH NO21120-89J00
Required: 1
PLATE, CLUTCH NOTCH
$13.84
You save $2.44
3
Suzuki Marine
Obsolete Suzuki Part21210-89J00
Required: 1
ARM, CLUTCH SHAFT
$4.73
You save $0.83
4
Suzuki Marine
SHAFT,CLUTCH21211-89J00
Required: 1
SHAFT, CLUTCH
$16.01
You save $2.83
5
Suzuki Marine
BUSH,CLUTCH LEV21221-89J00
Required: 1
BUSH, CLUTCH LEVER SHAFT
$3.88
You save $0.68
6
Suzuki Marine
ROD,CLUTCH(S)23111-89J00
Required: 1
ROD, CLUTCH (S)
$10.62
You save $1.87
6
Suzuki Marine
Obsolete Suzuki Part23111-89J10
Required: 1
ROD, CLUTCH (L)
$11.47
You save $2.03
7
Suzuki Marine
LINK,SHIFT LEVE23115-89J00
Required: 1
LINK, SHIFT LEVER
$9.27
You save $1.64
8
Suzuki Marine
Obsolete Suzuki Part23213-89J00
Required: 1
SPRING, NOTCH PLATE
$5.22
You save $0.92
9
Suzuki Marine
Obsolete Suzuki Part23214-89J00
Required: 1
SPRING, NOTCH PLATE
$1.57
You save $0.28
10
Suzuki Marine
SHIFT SHAFT CONNECTOR67467-89J01
Required: 1
CONNECTOR, CLUTCH LEVER LINK
In stock
Only 4 remaining
$6.89
You save $1.72
11
Suzuki Marine
NUT,REMOCON CAB67471-99E00
Required: 1
NUT, CLUTCH LEVER LINK
$3.17
You save $0.56
12
Suzuki Marine
PIN, CONNECTOR67473-89J00
Required: 1
PIN, CONNECTOR
$8.78
You save $1.55
13
Suzuki Marine
BOLT,6X28.809111-06069
Required: 1
BOLT (6X28.8)
$10.90
You save $1.92
14
Suzuki Marine
WASHER 5.5X12X009160-05029
Required: 1
WASHER (5.5X12X0.8)
$1.51
You save $0.38
15
Suzuki Marine
WASHER09160-06055
Required: 1
WASHER (7X12X1.0)
$1.51
You save $0.38
16
Suzuki Marine
WASHER09160-06082
Required: 1
WASHER (6.5X13X1.0)
In stock
Only 2 remaining
$1.38
You save $0.35
17
Suzuki Marine
WASHER09160-08082
Required: 1
WASHER (8.5X16X1.2)
$1.58
You save $0.40
18
Suzuki Marine
WASHER WAVE09164-08017
Required: 1
WASHER, WAVE (8.5X17X0.2)
$2.28
You save $0.40
In stock
Only 4 remaining
$1.51
You save $0.38
$0.67
You save $0.17
In stock
Only 4 remaining
$1.84
You save $0.46
In stock
5+ in stock
$2.23
You save $0.56
In stock
5+ in stock
$1.32
You save $0.33
In stock
5+ in stock
$2.23
You save $0.56
24
Required: 1
REFER TO FIG.20(C-10) FOR TYPE:QR/T
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
