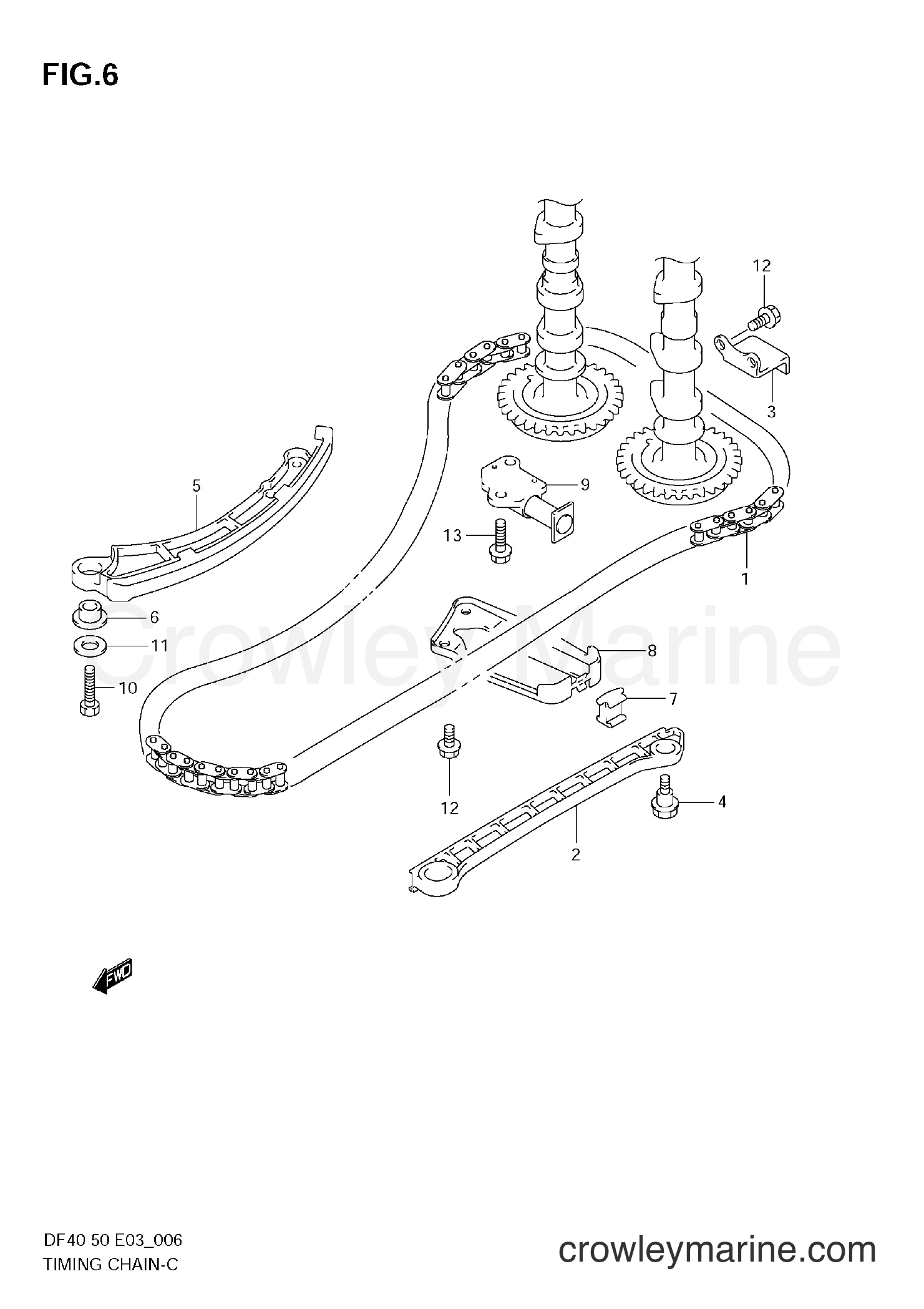

2002 Four-Stroke Outboard 50 - DF50 TIMING CHAIN diagram
1
Suzuki Marine
CHAIN,TIMING12761-73G01
Required: 1
CHAIN, TIMING
$104.78
You save $18.49
2
Suzuki Marine
GUIDE,TIMING CH12771-87J00
Required: 1
GUIDE, TIMING CHAIN
$20.60
You save $3.64
3
Suzuki Marine
GUIDE,TIMING CH12772-73G01
Required: 1
GUIDE, TIMING CHAIN NO.2
In stock
Only 1 remaining
$10.56
You save $1.86
4
Suzuki Marine
BOLT,TIMING CHA12776-85FA0
Required: 2
BOLT, TIMING CHAIN GUIDE
$4.38
You save $0.77
5
Suzuki Marine
TENSIONER,TIMIN12811-87J00
Required: 1
TENSIONER, TIMING CHAIN
$69.43
You save $12.25
6
Suzuki Marine
SPACER,TIMING C12812-73G10
Required: 1
SPACER, TIMING CHAIN TENSIONE
$6.06
You save $1.07
7
Suzuki Marine
ROD,TIMING CHAI12813-73G00
Required: 1
PAD, TIMING CHAIN TENSIONER
$3.87
You save $0.68
8
Suzuki Marine
LINK,TIMING CHA12821-87J01
Required: 1
LINK, TIMING CHAIN TENSIONER
$8.46
You save $1.49
9
Suzuki Marine
ADJUSTER ASSY,T12831-90J02
Required: 1
ADJUSTER ASSY, TENSIONER
Supersedes: 12831-90J00
$103.00
You save $18.18
9
Suzuki Marine
ADJUSTER ASSY,T12831-90J02
Required: 1
ADJUSTER ASSY, TENSIONER
Supersedes: 12831-90J01
$103.00
You save $18.18
9
Suzuki Marine
ADJUSTER ASSY,T12831-90J02
Required: 1
ADJUSTER ASSY, TENSIONER
$103.00
You save $18.18
$2.10
You save $0.37
$2.08
You save $0.37
12
Suzuki Marine
BOLT01550-0612A
Required: 4
BOLT
Supersedes: 01550-06123
$2.01
You save $0.36
$2.01
You save $0.36
$2.01
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
