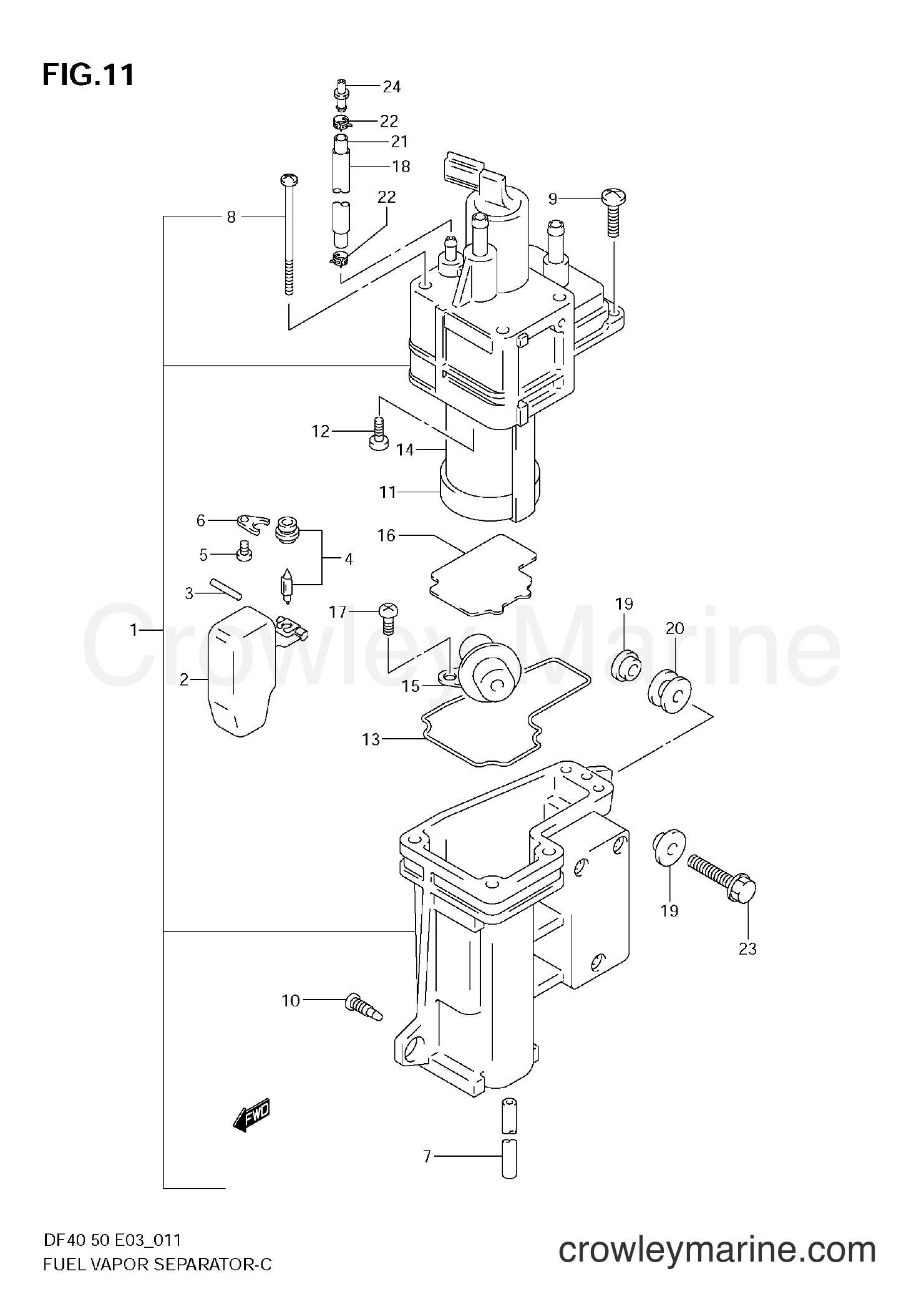

2005 Four-Stroke Outboard 40 - DF40 FUEL VAPOR SEPARATOR (MODEL:99) diagram
1
Suzuki Marine
SEPARATOR ASSY,15600-87J13
Required: 1
SEPARATOR, FUEL VAPOR
Supersedes: 15600-87J00
$661.88
You save $116.80
In stock
Only 1 remaining
$64.70
You save $11.42
$2.35
You save $0.42
4
Suzuki Marine
Needle Valve13370-99E00
Required: 1
.VALVE, NEEDLE
In stock
Only 2 remaining
$46.31
You save $8.17
5
Suzuki Marine
Screw (M8 X 40)02112-0408A
Required: 1
.SCREW
Supersedes: 02112-04083
$1.13
You save $0.20
$7.17
You save $1.27
7
Suzuki Marine
Hose15683-87J00
Required: 1
.HOSE, DRAIN
$3.19
You save $0.56
8
Suzuki Marine
SCREW(L:70)15627-99E00
Required: 3
.SCREW (L:70)
$5.01
You save $0.88
9
Suzuki Marine
SCREW(L:15)15628-99E00
Required: 2
.SCREW (L:15)
In stock
Only 3 remaining
$2.28
You save $0.40
10
Suzuki Marine
SCREW,DRAIN15629-99E10
Required: 1
.SCREW, DRAIN
$5.18
You save $0.92
11
Suzuki Marine
FILTER,FUEL PUM15641-99E01
Required: 1
.FILTER, FUEL PUMP
Supersedes: 15641-99E00
$25.19
You save $4.44
12
Suzuki Marine
Screw (M8 X 40)02112-0510A
Required: 1
.SCREW
Supersedes: 02112-05103
$1.47
You save $0.26
In stock
Only 1 remaining
$12.09
You save $2.13
$414.22
You save $73.10
$221.37
You save $39.07
$8.29
You save $1.46
17
Suzuki Marine
Screw (M8 X 40)02112-0510A
Required: 2
.SCREW
Supersedes: 02112-05103
$1.47
You save $0.26
18
Suzuki Marine
PROTECTOR,HOSE(18498-87JC1
Required: 1
PROTECTOR
Supersedes: 18498-87JC0
$4.77
You save $0.84
$3.52
You save $0.62
20
Suzuki Marine
CUSHION,SILENCE09320-09059
Required: 3
CUSHION
Supersedes: 09320-09039
$3.37
You save $0.60
$10.41
You save $1.84
$1.90
You save $0.34
In stock
Only 3 remaining
$2.37
You save $0.42
24
Suzuki Marine
JET,EVAPORIZATN15661-87J01
Required: 1
JET, EVAPORATION HOSE
$5.55
You save $0.98
25
Required: 1
REFER TO FIG.12(C- 3) FOR MODEL:00~10
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
