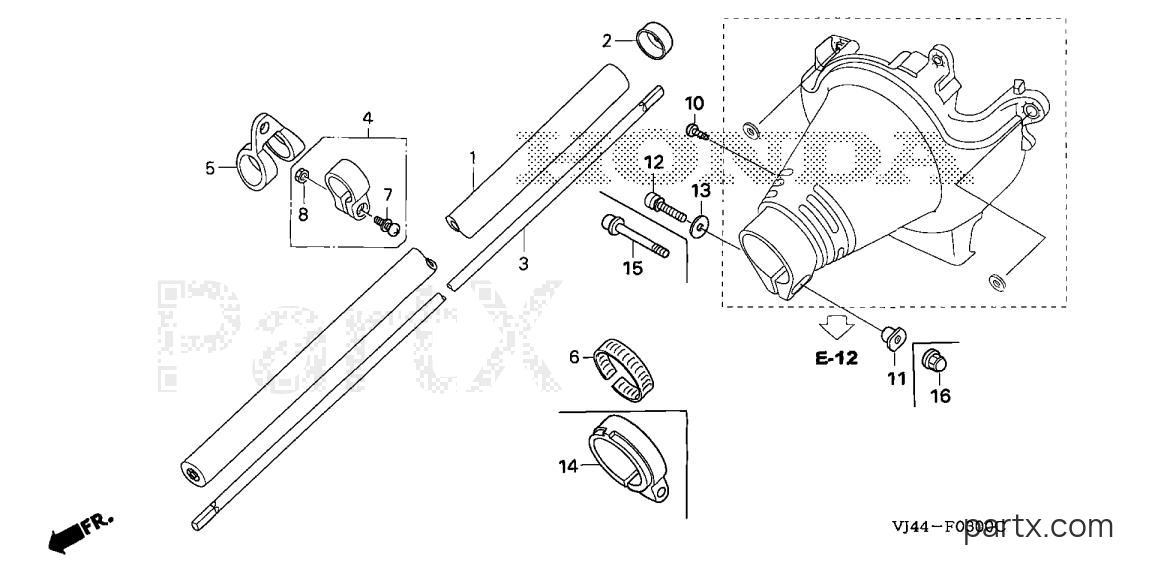

All Years Trimmers HHT - HHT25S LTA FRAME PIPE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda HHT25S LTA - FRAME PIPE
Change View:
PIPE ASSY., FRAME
001
Honda
PIPE ASSY., FRAME40230-VJ4-000
Required: 1
PIPE ASSY., FRAME
N
Cross Ship
Leaves in 2-5 days
$112.88
$95.95
You save $16.93
More details
CAP, FRAME
002
Honda
CAP, FRAME40238-VJ4-000
Required: 1
CAP, FRAME
N
Cross Ship
Leaves in 2-5 days
$1.78
$1.51
You save $0.27
More details
SHAFT, DRIVE
003
Honda
SHAFT, DRIVE41411-VH8-640
Required: 1
SHAFT, DRIVE
N
Cross Ship
Leaves in 2-5 days
$17.76
$15.10
You save $2.66
More details
HOLDER A, HANGER
004
Honda
HOLDER A, HANGER50374-VH8-641
Required: 1
HOLDER A, HANGER
N
Cross Ship
Leaves in 2-5 days
$10.92
$9.28
You save $1.64
More details
HOLDER B, HANGER
005
Honda
HOLDER B, HANGER50376-VF9-701
Required: 1
HOLDER B, HANGER
N
Cross Ship
Leaves in 2-5 days
$11.34
$9.64
You save $1.70
More details
006
Required: 1
RING, TOLERANCE
N
Price unavailable
SCREW-WASHER (5X25)
007
Honda
SCREW-WASHER (5X25)93892-05025-00
Required: 1
SCREW-WASHER (5X25)
N
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
NUT, HEX. (5MM)
008
Honda
NUT, HEX. (5MM)94001-05000-0S
Required: 1
NUT, HEX. (5MM)
N
Cross Ship
Leaves in 2-5 days
$3.34
$2.84
You save $0.50
More details
SCREW, TAP (5X16)
010
Honda
SCREW, TAP (5X16)93911-25420
Required: 1
SCREW, TAPPING (5X16)
N
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
