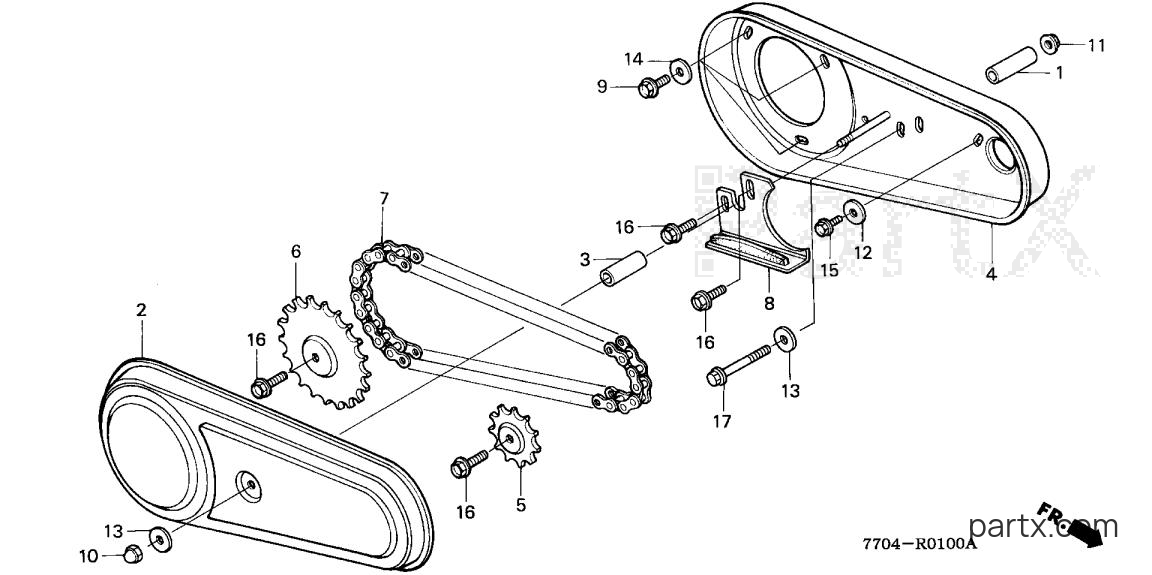

All Years Tillers FR - FR800 A PRIMARY CASE diagram
001
Honda
COLLAR, FR. ENG HGR50203-MS8-000
Required: 1
COLLAR, FR. ENGINE HANGER (A)
N
$4.25
You save $0.75
002
Required: 1
COVER, PRIMARY (NOT AVAILABLE)
N
Price unavailable
003
Honda
COLLAR, DISTANCE71115-723-750
Required: 1
COLLAR, DISTANCE
N
$7.04
You save $1.24
004
Honda
CASE, PRIMARY *R280*71121-770-000ZC
Required: 1
CASE, PRIMARY *R280*(POWER RED)
N
$56.81
You save $10.03
005
Honda
SPROCKET (10T)73511-770-000
Required: 1
SPROCKET, PRIMARY DRIVE (10T)
N
$47.60
You save $8.40
006
Honda
SPROCKET (23T)73521-770-000
Required: 1
SPROCKET, PRIMARY DRIVEN (23T)
N
$75.11
You save $13.25
007
Honda
CHAIN, PRIMARY73531-723-751
Required: 1
CHAIN, PRIMARY
N
$109.94
You save $19.40
008
Honda
TENSIONER73615-770-000
Required: 1
TENSIONER, PRIMARY CHAIN
N
$12.21
You save $2.15
009
Honda
BOLT, FLANGE (8MM)90105-952-720
Required: 3
BOLT, FLANGE (8MM)
N
$4.69
You save $0.83
010
Honda
NUT, CAP (8MM)94021-08000-0S
Required: 1
NUT, CAP (8MM)
N
$1.68
You save $0.30
011
Honda
NUT, FLANGE (8MM)94050-08000
Required: 1
NUT, FLANGE (8MM)
N
In stock
5+ in stock
$0.94
You save $0.24
012
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 2
WASHER, PLAIN (6MM)
N
$0.64
You save $0.16
013
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 2
WASHER, PLAIN (8MM)
N
$0.85
You save $0.15
014
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 3
WASHER, PLAIN (8MM)
N
$2.01
You save $0.35
015
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 2
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
016
Honda
BOLT, FLANGE (8X16)95701-08016-08
Required: 4
BOLT, FLANGE (8X16)
N
$1.87
You save $0.33
017
Required: 1
BOLT, FLANGE (8X30)
N
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
