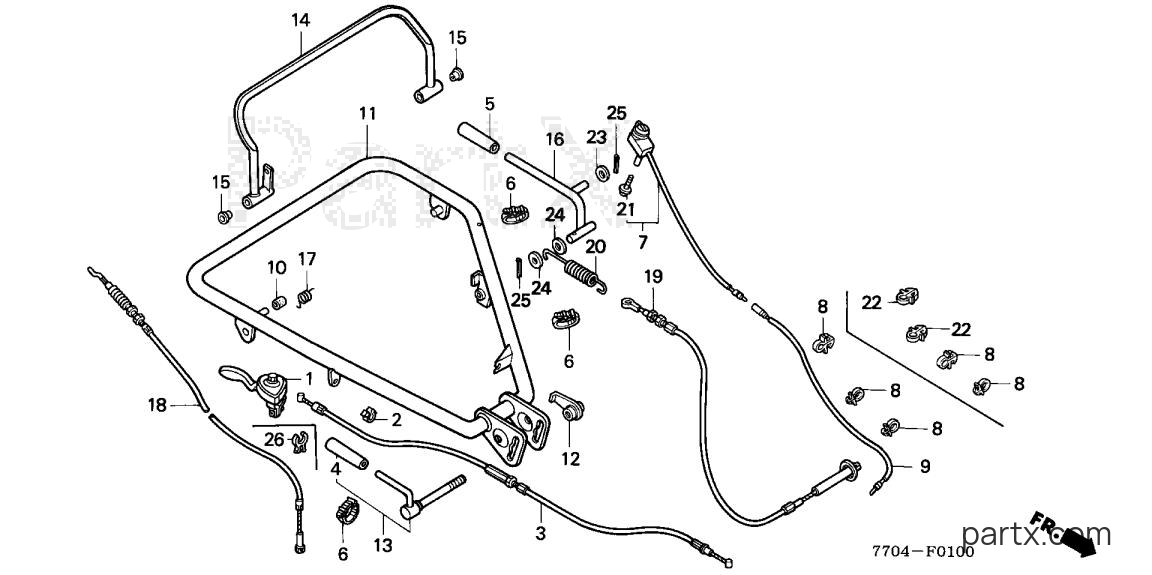

All Years Tillers FR - FR600 A HANDLEBAR diagram
001
Honda
LEVER, THROTTLE17850-723-003
Required: 1
LEVER ASSY., THROTTLE
N
$19.92
You save $3.52
001
Honda
LEVER, THROTTLE17850-723-013
Required: 1
LEVER ASSY., THROTTLE
N
$19.04
You save $3.36
$4.13
You save $0.73
003
Required: 1
CABLE, THROTTLE (NOT AVAILABLE)
N
Price unavailable
003
Honda
CABLE, THROTTLE17910-770-010
Required: 1
CABLE, THROTTLE
N
$25.13
You save $4.43
004
Honda
GRIP, FR.22542-900-000
Required: 1
GRIP, FR. CLUTCH LEVER
N
$5.76
You save $1.02
005
Required: 1
GRIP, CLUTCH LEVER (NOT AVAILABLE)
N
Price unavailable
006
Honda
BAND B1, WIRE32161-404-000
Required: 3
BAND B1, WIRE
N
$2.43
You save $0.43
006
Honda
BAND, CABLE (120MM)90674-WA8-003
Required: 3
BAND, CABLE (120MM) (BLACK)
N
$3.32
You save $0.58
007
Honda
SWITCH, ENGINE STOP35120-733-F51
Required: 1
SWITCH ASSY., ENGINE STOP
N
$39.71
You save $7.01
008
Honda
HOLDER36103-ZE1-000
Required: 3
HOLDER, STOP SWITCH WIRE
N
$2.04
You save $0.36
009
Honda
WIRE, ENGINE STOP36151-733-000
Required: 1
WIRE, ENGINE STOP
N
$15.10
You save $2.66
010
Honda
RUBBER, SHOE SPRING45104-HC3-000
Required: 1
RUBBER, SHOE SPRING
N
$1.99
You save $0.35
011
Required: 1
PIPE, HANDLE (CHROME PLATED) (NOT AVAILABLE)
N
Price unavailable
012
Honda
NUT, HANDLE LOCK53137-719-000
Required: 1
NUT, HANDLE LOCK
N
$22.56
You save $3.98
013
Honda
LEVER53140-770-000
Required: 1
LEVER, HANDLE ADJUSTING
N
$56.32
You save $9.94
014
Honda
LEVER *NH105*54410-770-700ZA
Required: 1
LEVER, CLUTCH *NH105*(MAT BLACK)
N
$91.82
You save $16.20
015
Honda
BUSH, CLUTCH LEVER54412-952-770
Required: 2
BUSH, CLUTCH LEVER
N
$3.79
You save $0.67
016
Honda
LEVER, MAIN CLUTCH54451-765-630
Required: 1
LEVER, MAIN CLUTCH
N
$29.31
You save $5.17
017
Honda
SPRING54468-734-A21
Required: 1
SPRING, MAIN CLUTCH ARM RETURN
N
$4.18
You save $0.74
018
Honda
CABLE, MAIN CLUTCH54510-770-A00
Required: 1
CABLE, MAIN CLUTCH
N
$47.12
You save $8.32
019
Honda
CABLE, ROTARY CLUTCH54650-770-A00
Required: 1
CABLE, ROTARY CLUTCH
N
$55.84
You save $9.86
020
Honda
SPRING54659-770-010
Required: 1
SPRING, ROTARY CLUTCH
N
$11.56
You save $2.04
021
Required: 1
BOLT (3X12) (SEMS) (NOT AVAILABLE)
N
Price unavailable
023
Honda
WASHER, PLAIN (10MM)94102-10000
Required: 1
WASHER, PLAIN (10MM)
N
$0.78
You save $0.14
024
Honda
WASHER, PLAIN (10MM)94103-10000
Required: 2
WASHER, PLAIN (10MM)
N
$0.70
You save $0.12
025
Honda
PIN, SPLIT (2.0X22)94201-20220
Required: 2
PIN, SPLIT (2.0X22)
N
$1.07
You save $0.19
025
Honda
PIN, SPLIT (2.0X18)94201-20350
Required: 2
PIN, SPLIT (2.0X35)
N
$1.07
You save $0.19
026
Honda
CLIP, THROTTLE17851-777-003
Required: 1
CLIP, THROTTLE
N
$1.96
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
