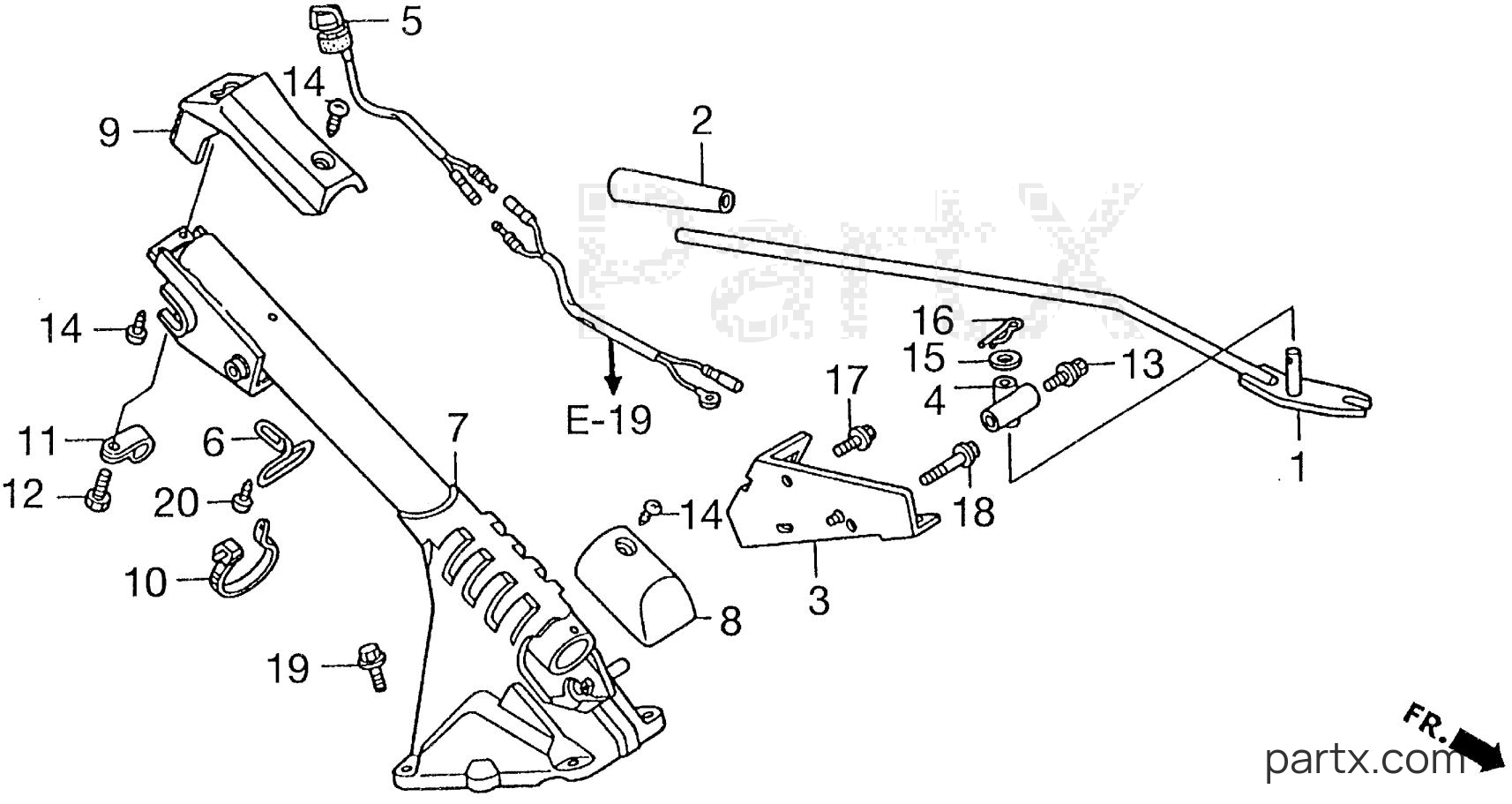

All Years Tillers FG - FG500 A2 HANDLE COLUMN diagram
003
Honda
BRKT, CHANGE LEVER24427-V08-000
Required: 1
BRACKET, CHANGE LEVER
N
$31.57
You save $5.57
005
Required: 1
SWITCH ASSY., ENGINE STOP
N
Price unavailable
006
Honda
GUIDE, CABLE50275-727-000
Required: 1
GUIDE, CABLE
N
$6.70
You save $1.18
007
Required: 1
COLUMN, HANDLE *NH105*(MAT BLACK) (NOT AVAILABLE)
N
Price unavailable
008
Honda
CVR, COLUMN (LOWER)53291-V08-000
Required: 1
COVER, COLUMN (LOWER)
N
$10.18
You save $1.80
009
Honda
COVER, HANDLE COLUMN54231-733-E80
Required: 1
COVER, HANDLE COLUMN
N
$20.82
You save $3.68
010
Honda
BAND, SUCTION HOSE90679-SG9-E01
Required: 1
BAND, SUCTION HOSE (BLACK)
N
$3.86
You save $0.68
011
Honda
CLIP, HARN (6.3MM)91475-SB6-000
Required: 1
CLIP, WIRE HARNESS (6.3MM)
N
$8.72
You save $1.54
012
Honda
BOLT, HEX. (5X14)92101-05014-0B
Required: 1
BOLT, HEX. (5X14)
N
$1.19
You save $0.21
014
Honda
SCREW, TAP (5X12)93903-25280
Required: 3
SCREW, TAPPING (5X12)
N
$1.44
You save $0.26
017
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
N
In stock
Only 1 remaining
$1.58
You save $0.40
018
Honda
BOLT, FLANGE (6X30)95701-06030-00
Required: 2
BOLT, FLANGE (6X30)
N
$1.96
You save $0.35
019
Honda
BOLT, FLANGE (8X16)95701-08016-00
Required: 4
BOLT, FLANGE (8X16)
N
$1.76
You save $0.44
020
Honda
SCREW, TAP (5X10)93903-35110
Required: 1
SCREW, TAPPING (5X10)
N
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
