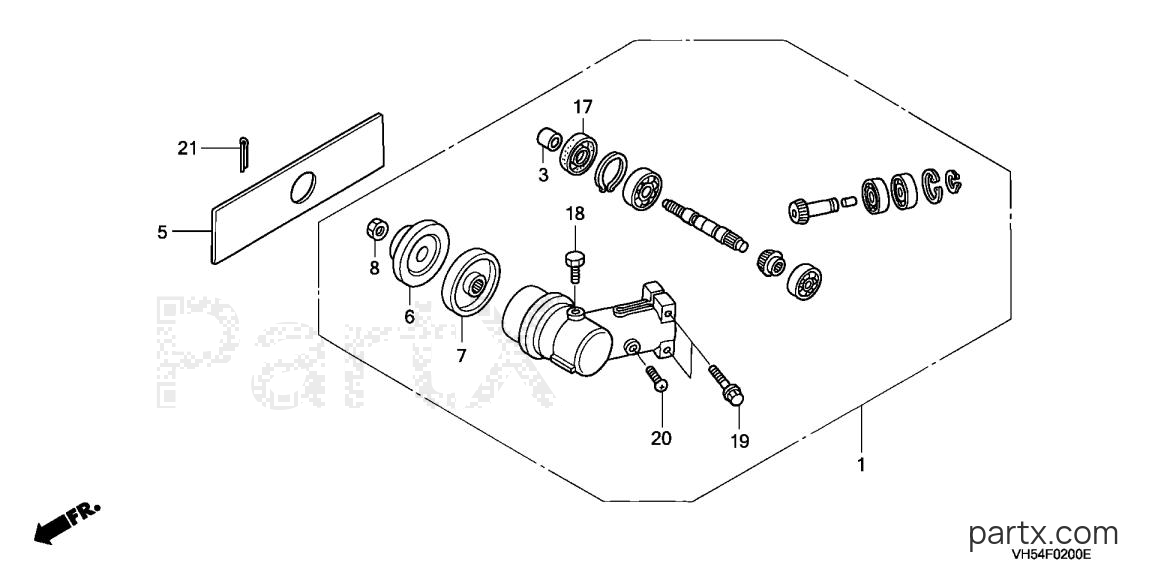

All Years Stick Edger HHE - HHE31C A GEAR CASE diagram
001
Required: 1
CASE ASSY., GEAR (NOT AVAILABLE)
N
Price unavailable
001
Honda
KIT, GEAR41100-VH5-999
Required: 1
KIT, GEAR (DOESN'T INCLUDE NUT AND HOLDERS A AND B. ORDER SEPARATELY.) (SOURCE: VINTAGE PARTS INC.)
N
$73.73
You save $13.01
003
Honda
COLLAR, SPLINE41102-VH5-003
Required: 1
COLLAR, SPLINE
N
$11.58
You save $2.04
005
Honda
BLADE, ROTARY72511-VH5-000
Required: 1
BLADE, ROTARY
N
$9.38
You save $1.66
006
Required: 1
HOLDER A, BLADE (NOT AVAILABLE)
N
Price unavailable
007
Honda
HOLDER B, BLADE72621-VH5-000
Required: 1
HOLDER B, BLADE (SOURCE: VINTAGE PARTS INC.)
N
$12.14
You save $2.14
008
Required: 1
NUT, HEX. (M10) (NOT AVAILABLE)
N
Price unavailable
$2.11
You save $0.37
018
Honda
BOLT, HEX. (8X10)92201-08010-0H
Required: 1
BOLT, HEX. (8X10)
N
$0.99
You save $0.17
019
Honda
BOLT-WASHER (5X25)93403-05025-04
Required: 2
BOLT-WASHER (5X25)
N
$2.01
You save $0.35
020
Honda
SCREW-WASHER (5X12)93893-05012-08
Required: 1
SCREW-WASHER (5X12)
N
$1.39
You save $0.25
021
Honda
PIN, SPLIT (2.0X22)94201-20220
Required: 1
PIN, SPLIT (2.0X22)
N
$1.07
You save $0.19
021
Honda
PIN, SPLIT (2.0X18)94201-20350
Required: 1
PIN, SPLIT (2.0X35)
N
$1.07
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
