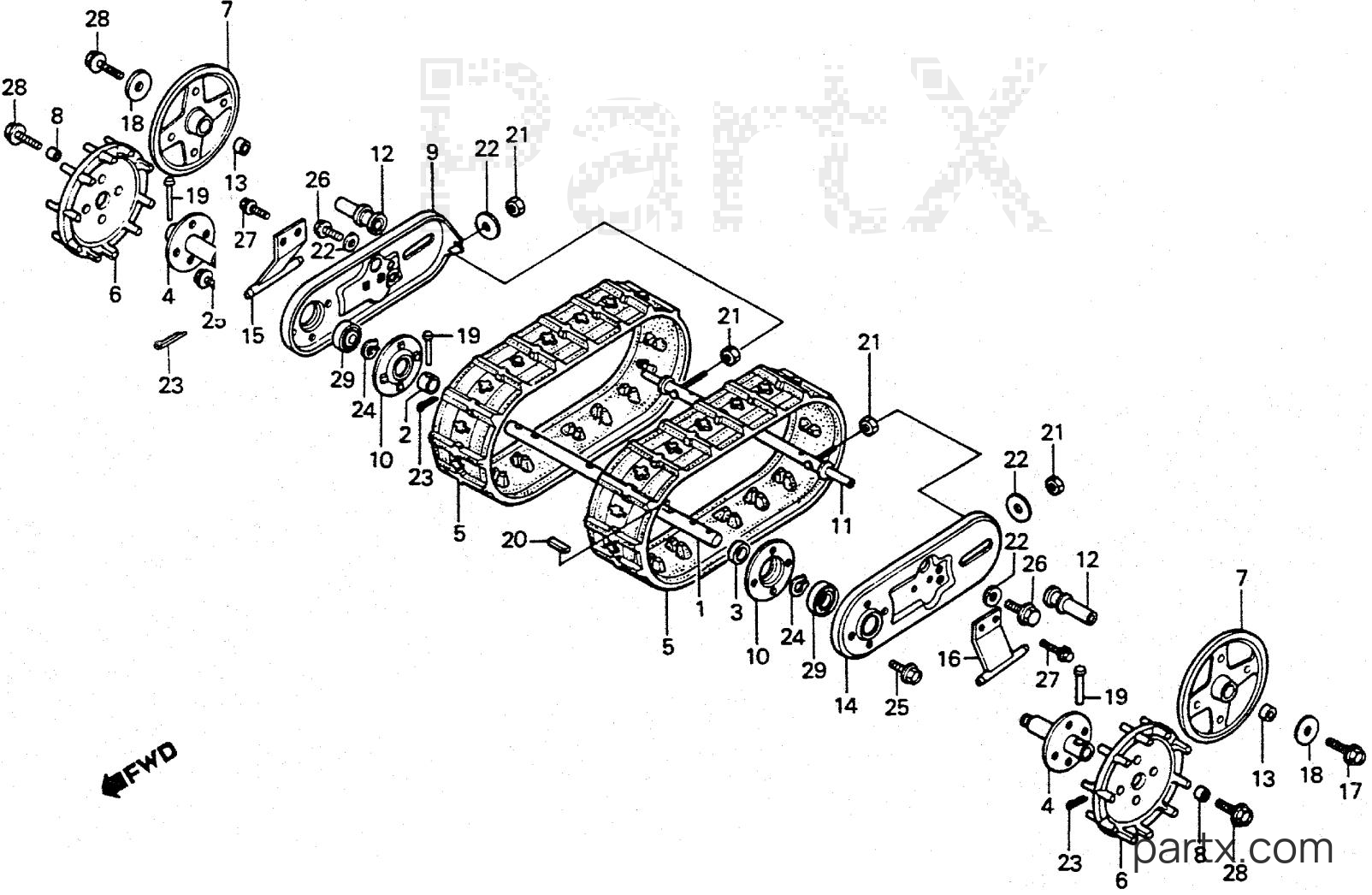

Honda HS50 TA - CRAWLER

Change View:

001

Required: 1

SHAFT, WHEEL (NOT AVAILABLE)

N

Price unavailable

002

Required: 1

COLLAR, WHEEL SHAFT (NOT AVAILABLE)

N

Price unavailable

003

Required: 1

COLLAR, WHEEL SHAFT (B) (NOT AVAILABLE)

N

Price unavailable

004

Required: 2

HUB, CRAWLER (NOT AVAILABLE)

N

Price unavailable

005

Required: 2

CRAWLER (NOT AVAILABLE)

N

Price unavailable

006

Required: 2

SPROCKET, CRAWLER (NOT AVAILABLE)

N

Price unavailable

007

Required: 2

ROLLER, CRAWLER (NOT AVAILABLE)

N

Price unavailable

008

Required: 8

COLLAR, SPROCKET (NOT AVAILABLE)

N

Price unavailable

009

Required: 1

PLATE, R. CRAWLER (NOT AVAILABLE)

N

Price unavailable

010

Required: 2

HOLDER, CRAWLER BEARING (NOT AVAILABLE)

N

Price unavailable

011

Required: 1

PIPE, CRAWLER (NOT AVAILABLE)

N

Price unavailable

012

Required: 2

SHAFT, ROLLER (NOT AVAILABLE)

N

Price unavailable

013

Required: 4

BUSH, ROLLER (NOT AVAILABLE)

N

Price unavailable

014

Required: 1

PLATE, L. CRAWLER (NOT AVAILABLE)

N

Price unavailable

015

Required: 1

GUIDE, R. CRAWLER (NOT AVAILABLE)

N

Price unavailable

016

Required: 1

GUIDE, L. CRAWLER (NOT AVAILABLE)

N

Price unavailable

017

Required: 1

BOLT, L. (8X22) (NOT AVAILABLE)

N

Price unavailable
