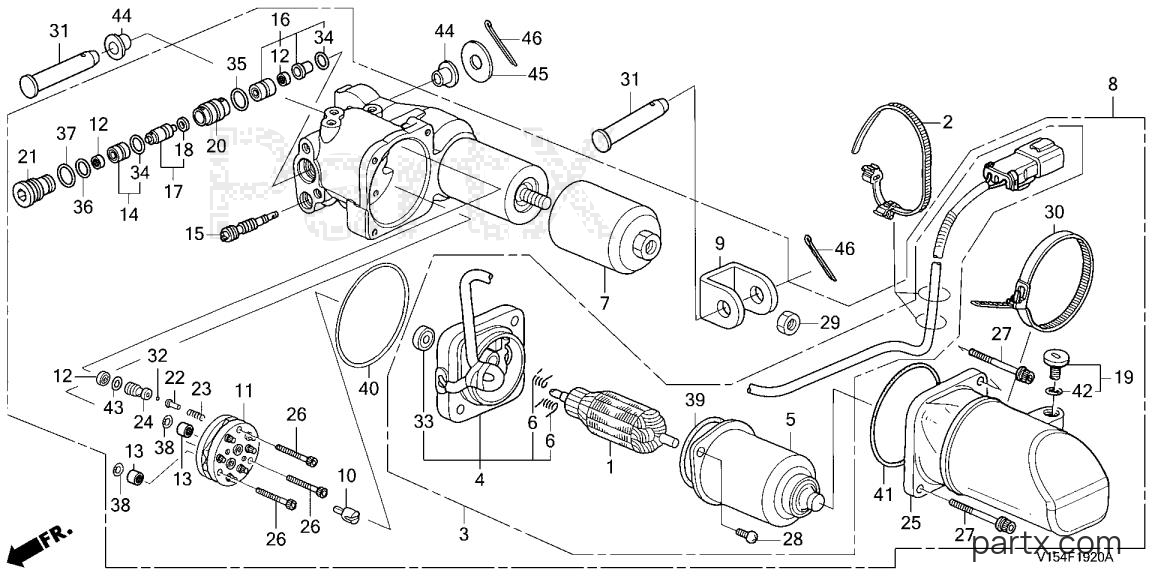

All Years Snowblower HSM - HSM1336IK2 ATDR POWER ROLLING diagram
$81.12
You save $14.32
002
Honda
BAND, WIRE HARNESS32161-V15-003
Required: 2
BAND, WIRE HARNESS
N
$3.94
You save $0.70
003
Honda
MOTOR, POWER ROLLING36120-V15-701
Required: 1
MOTOR ASSY., POWER ROLLING
N
$253.01
You save $44.65
004
Honda
BRACKET ASSY.36122-V15-701
Required: 1
BRACKET ASSY.
N
$223.92
You save $39.52
$33.56
You save $5.92
006
Honda
SPRING, MOTOR36136-V15-013
Required: 2
SPRING, MOTOR
N
$4.98
You save $0.88
007
Honda
COVER, DUST END52689-V15-003
Required: 1
COVER, DUST END
N
$6.03
You save $1.07
008
Honda
ROLLING ASSY., POWER56001-V15-906
Required: 1
ROLLING ASSY., POWER
N
$1082.25
You save $190.99
009
Honda
JOINT, METAL56113-V15-003
Required: 1
JOINT, METAL
N
$17.27
You save $3.05
010
Honda
JOINT, DRIVE56113-ZW1-701
Required: 1
JOINT, DRIVE
N
$18.55
You save $3.27
$146.12
You save $25.78
012
Required: 3
FILTER
N
Price unavailable
$8.62
You save $1.52
$79.61
You save $14.05
015
Honda
VALVE, MANUAL56141-V15-023
Required: 1
VALVE, MANUAL
N
$63.61
You save $11.23
$79.61
You save $14.05
017
Honda
SPOOL, VALVE56150-V15-703
Required: 1
SPOOL, VALVE
N
$36.43
You save $6.43
018
Honda
RING, BACK-UP56151-ZV5-822
Required: 1
RING, BACK-UP
N
$6.26
You save $1.10
019
Honda
BOLT, PLUG56160-V15-003
Required: 1
BOLT, PLUG
N
$10.34
You save $1.82
$28.75
You save $5.07
$25.07
You save $4.43
022
Honda
GUIDE, SPRING56182-V15-003
Required: 1
GUIDE, SPRING
N
$14.09
You save $2.49
023
Honda
SPRING, VALVE56183-V15-003
Required: 1
SPRING, VALVE
N
$3.23
You save $0.57
024
Required: 1
SEAT, VALVE
N
Price unavailable
$41.28
You save $7.28
026
Honda
BOLT, SOCKET90101-V15-003
Required: 3
BOLT, SOCKET
N
$7.57
You save $1.33
027
Honda
BOLT, SOCKET90102-V15-003
Required: 2
BOLT, SOCKET
N
$9.67
You save $1.71
028
Honda
SCREW, PAN (5X0.8)90134-V15-003
Required: 2
SCREW, PAN (5X0.8)
N
$3.67
You save $0.65
$4.37
You save $0.77
030
Honda
BAND, WIRE HARNESS90620-766-801
Required: 1
BAND, WIRE HARNESS
N
$7.57
You save $1.33
031
Honda
PIN (12X46)90752-V15-000
Required: 2
PIN (12X46)
N
$13.04
You save $2.30
032
Honda
BALL, STEEL90921-766-801
Required: 1
BALL, STEEL
N
$2.63
You save $0.47
$34.78
You save $6.14
034
Honda
O-RING (1.5X10.7)91305-ZV5-822
Required: 2
O-RING (1.5X10.7)
N
$2.63
You save $0.47
035
Honda
O-RING (1.5X13.5)91306-ZV5-821
Required: 1
O-RING (1.5X13.5)
N
$3.60
You save $0.64
036
Honda
O-RING (1.5X15.5)91307-ZV5-821
Required: 1
O-RING (1.5X15.5)
N
$3.60
You save $0.64
037
Honda
O-RING (1.8X18.8)91308-V15-003
Required: 1
O-RING (1.8X18.8)
N
$3.67
You save $0.65
038
Honda
O-RING (1.5X8.5)91309-797-A01
Required: 2
O-RING (1.5X8.5)
N
$4.88
You save $0.86
$4.95
You save $0.87
040
Honda
O-RING (2.0X62.5)91351-V15-003
Required: 1
O-RING (2.0X62.5)
N
$9.13
You save $1.61
041
Honda
O-RING (2.4X66.6)91352-V15-003
Required: 1
O-RING (2.4X66.6)
N
$6.85
You save $1.21
042
Honda
O-RING (1.9X9.8)91353-V15-003
Required: 1
O-RING (1.9X9.8)
N
$2.74
You save $0.48
043
Required: 1
O-RING (1.5X5.5)
N
Price unavailable
044
Honda
BUSH, CYLINDER91552-V15-000
Required: 2
BUSH, CYLINDER (UPPER)
N
$2.36
You save $0.42
045
Honda
WASHER, PLAIN (12MM)94103-12000
Required: 1
WASHER, PLAIN (12MM)
N
$0.90
You save $0.16
046
Honda
PIN, SPLIT (3.0X25)94201-30250
Required: 2
PIN, SPLIT (3.0X25)
N
$1.07
You save $0.19
046
Honda
PIN, SPLIT (3.0X45)94201-30450
Required: 2
PIN, SPLIT (3.0X45)
N
$1.07
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
