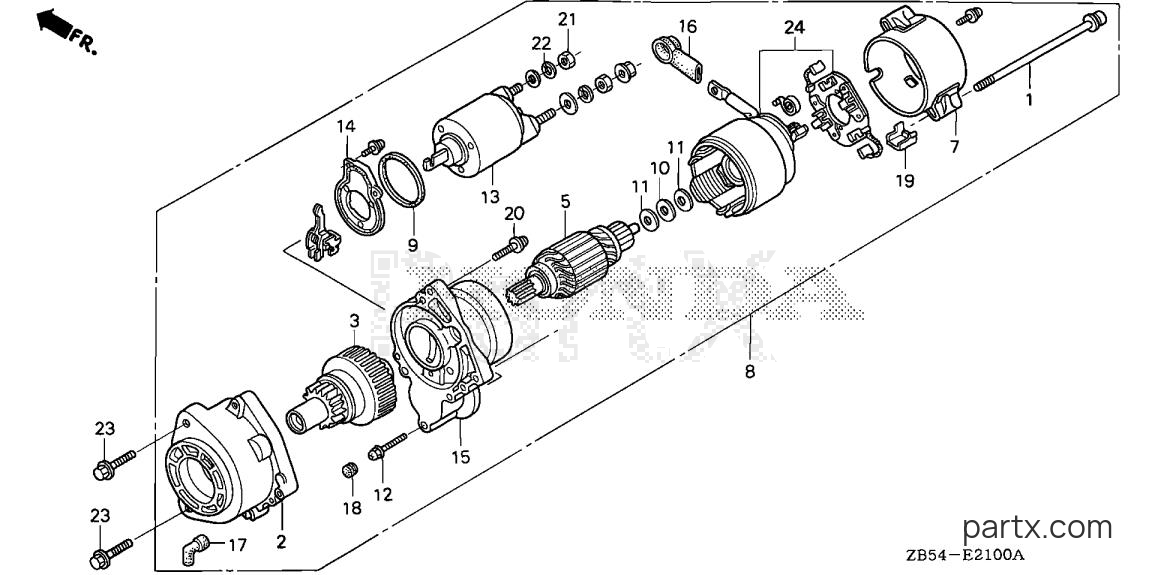

All Years Rv Generators EVD - EVD4010 ADV STARTER MOTOR (1) diagram
001
Required: 2
BOLT, THROUGH (MITSUBA)
N
Price unavailable
002
Honda
COVER, GEAR31203-ZA0-981
Required: 1
COVER, GEAR
N
$121.31
You save $21.41
003
Required: 1
GEAR ASSY. (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
ARMATURE (MITSUBA) (N/A: SEE ASSEMBLY)
N
Price unavailable
007
Required: 1
BRACKET ASSY., RR. (NOT AVAILABLE)
N
Price unavailable
008
Honda
STARTER MOTOR ASSY.31210-ZA0-984
Required: 1
STARTER MOTOR ASSY.
N
$609.97
You save $107.64
009
Required: 1
RING, SQUARE (MITSUBA) (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
WASHER, THRUST (1.2) (MITSUBA)
N
Price unavailable
011
Required: 2
WASHER, THRUST (0.2) (MITSUBA)
N
Price unavailable
012
Honda
SCREW-WASHER (4X28)31217-PC2-006
Required: 3
SCREW-WASHER (4X28) (MITSUBA)
N
$4.61
You save $0.81
013
Required: 1
SWITCH ASSY. (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
PLATE, FR. (NOT AVAILABLE)
N
Price unavailable
015
Honda
BRACKET ASSY., FR.31229-ZA0-981
Required: 1
BRACKET ASSY., FR.
N
$114.85
You save $20.27
016
Required: 1
COVER, TERMINAL (MITSUBA)
N
Price unavailable
017
Required: 1
TUBE, LABYRINTH (NOT AVAILABLE)
N
Price unavailable
018
Honda
RUBBER, BUSH31252-PD2-006
Required: 3
RUBBER, BUSH (MITSUBA) (NOT AVAILABLE)
N
$3.26
You save $0.58
019
Required: 1
COVER, DRAIN (NOT AVAILABLE)
N
Price unavailable
020
Required: 3
SCREW-WASHER (6X30)
N
Price unavailable
021
Honda
NUT, HEX. (8MM)94002-08000-0S
Required: 1
NUT, HEX. (8MM)
N
$1.36
You save $0.24
022
Honda
WASHER, SPRING (8MM)94111-08800
Required: 1
WASHER, SPRING (8MM)
N
$1.02
You save $0.18
023
Honda
BOLT, FLANGE (8X20)95701-08020-00
Required: 2
BOLT, FLANGE (8X20)
N
$1.94
You save $0.34
024
Required: 1
STATOR SET (NOT AVAILABLE)
N
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
