All diagrams for this model

All Years Pumps WX - WX10K1 AT FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

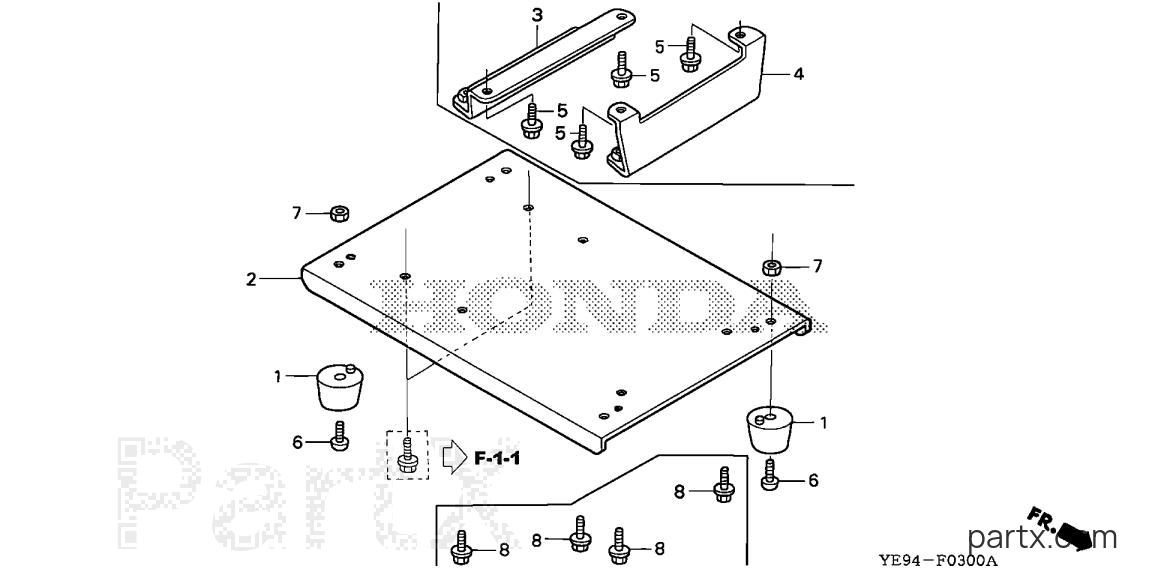

Honda WX10K1 AT - FRAME
Change View:
RUBBER (LOWER)
001
Honda
RUBBER (LOWER)60407-812-001
Required: 4
RUBBER (LOWER)
N
Cross Ship
Leaves in 2-5 days
$19.66
$16.71
You save $2.95
More details
002
Required: 1
BED, FRAME (NOT AVAILABLE)
N
Price unavailable
BRACKET A, ENGINE
003
Honda
BRACKET A, ENGINE78315-YE9-000
Required: 1
BRACKET A, ENGINE (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$10.86
$9.23
You save $1.63
More details
BRACKET B, ENGINE
004
Honda
BRACKET B, ENGINE78319-YE9-000
Required: 1
BRACKET B, ENGINE (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$7.92
$6.73
You save $1.19
More details
BOLT, FLANGE (5X12)
005
Honda
BOLT, FLANGE (5X12)90003-892-000
Required: 4
BOLT, FLANGE (5X12)
N
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
SCREW, PAN (6X10)
006
Honda
SCREW, PAN (6X10)93500-06010-0A
Required: 4
SCREW, PAN (6X10)
N
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
007
Required: 4
NUT, HEX. (6MM)
N
Price unavailable
NUT, HEX. (6MM)
007
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 4
NUT, HEX. (6MM)
N
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
BOLT, FLANGE (6X14)
008
Honda
BOLT, FLANGE (6X14)95701-06014-00
Required: 4
BOLT, FLANGE (6X14)
N
Cross Ship
Leaves in 2-5 days
$1.22
$1.04
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
