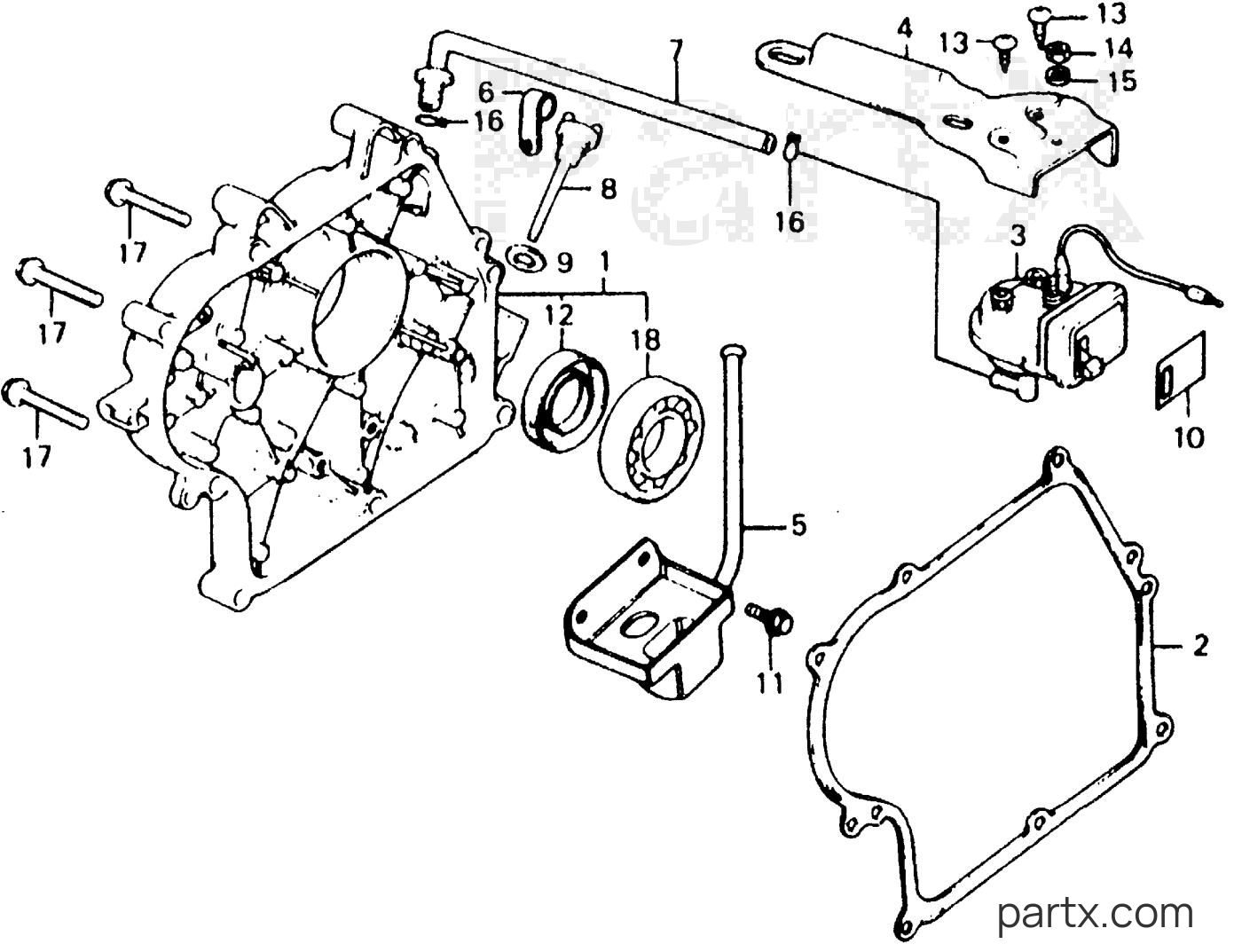

All Years Pumps WT - WT30 C WT30 CRANKCASE COVER diagram
001
Required: 1
COVER, CRANKCASE (NOT AVAILABLE)
N
Price unavailable
002
Honda
GASKET, CASE COVER11381-889-800
Required: 1
GASKET, CASE COVER
N
$13.89
You save $2.45
003
Honda
SW, OIL ALERT UNIT15520-883-881
Required: 1
SWITCH ASSY., OIL ALERT UNIT
N
$86.60
You save $15.28
004
Honda
BRACKET15521-883-890
Required: 1
BRACKET, OIL ALERT UNIT SWITCH
N
$29.16
You save $5.15
$17.51
You save $3.09
006
Honda
CLAMP, TUBE15529-889-890
Required: 1
CLAMP, TUBE
N
$4.42
You save $0.78
007
Honda
TUBE, OIL ALERT15530-889-891
Required: 1
TUBE, OIL ALERT
N
$23.46
You save $4.14
008
Required: 1
CAP, OIL FILLER (YELLOW) (NOT AVAILABLE)
N
Price unavailable
009
Honda
GSKT, OIL FILLER CAP15621-896-010
Required: 1
GASKET, OIL FILLER CAP
N
$4.64
You save $0.82
010
Honda
MARK, CAUTION87522-883-660
Required: 1
MARK, CAUTION (ENGLISH/FRENCH/SPANISH)
N
$4.13
You save $0.73
011
Honda
BOLT, FLANGE (6X16)90061-161-000
Required: 2
BOLT, FLANGE (6X16)
N
$3.16
You save $0.56
012
Honda
OIL SEAL (30X45X8)91201-889-003
Required: 1
OIL SEAL (30X45X8)
N
$9.61
You save $1.70
013
Honda
SCREW, TAP (5X10)93903-25180
Required: 2
SCREW, TAPPING (5X10)
N
$0.94
You save $0.17
014
Honda
NUT, HEX. (5MM)94001-05080-0S
Required: 1
NUT, HEX. (5MM)
N
$1.07
You save $0.19
015
Honda
WASHER, SPRING (5MM)94111-05800
Required: 1
WASHER, SPRING (5MM)
N
$1.17
You save $0.21
016
Honda
CLIP, TUBE (C11)95002-70000
Required: 2
CLIP, TUBE (C11)
N
$1.70
You save $0.30
017
Honda
BOLT, FLANGE (8X40)95701-08040-08
Required: 8
BOLT, FLANGE (8X40)
N
$2.36
You save $0.42
018
Honda
BEARING (6206)96100-62060-00
Required: 1
BEARING, RADIAL BALL (6206)
N
$25.89
You save $4.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
