All Years Pumps WN - WN30 AX1 CASING (2) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

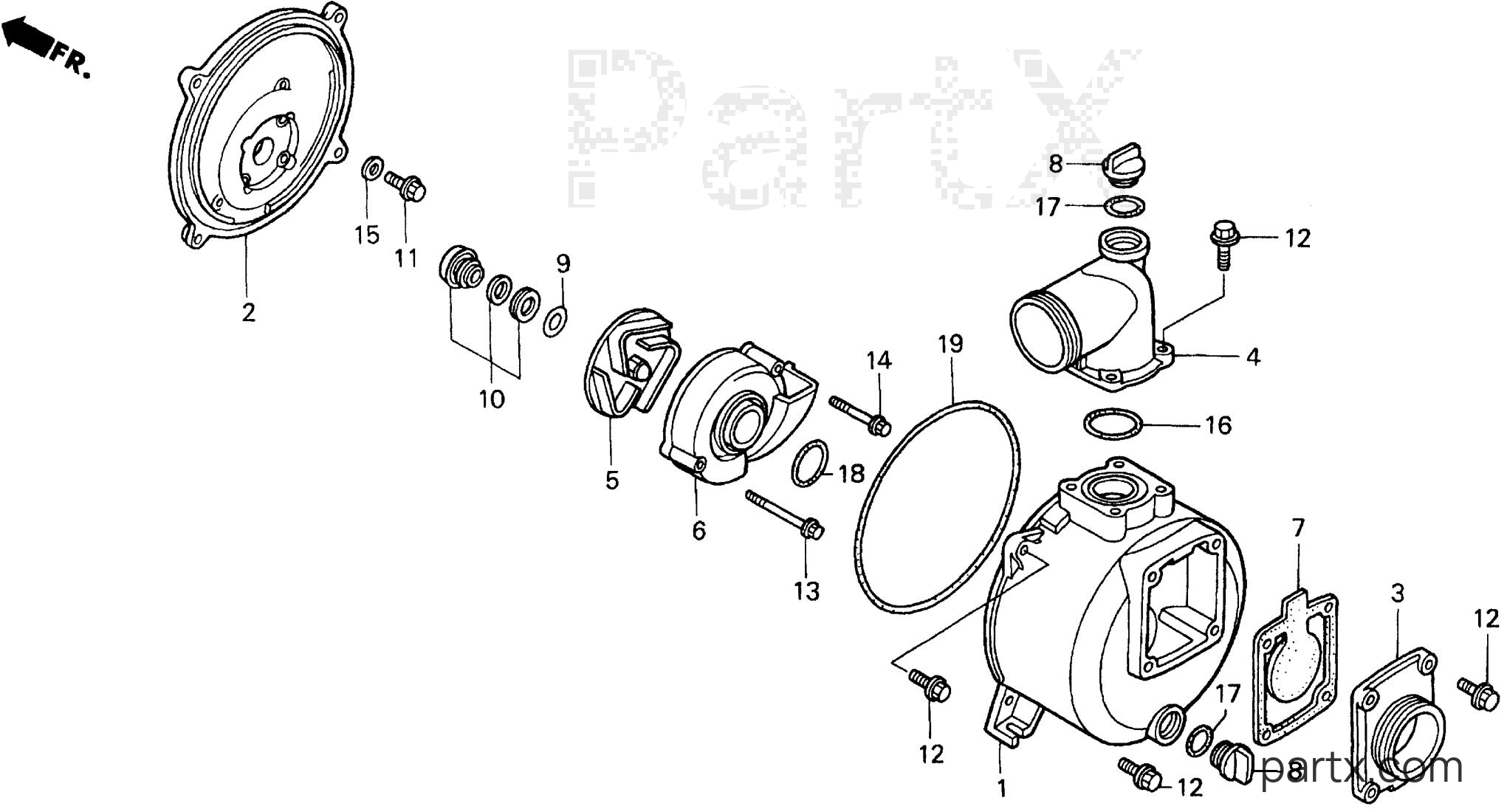

Honda WN30 AX1 - CASING (2)
Change View:
001
Required: 1
CASING (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
COVER, CASING (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PIPE, INLET (NOT AVAILABLE)
N
Price unavailable
PIPE, OUTLET
004
Honda
PIPE, OUTLET78104-YF4-612
Required: 1
PIPE, OUTLET
N
Cross Ship
Leaves in 2-5 days
$238.76
$202.95
You save $35.81
More details
005
Required: 1
IMPELLER (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
CASE, VOLUTE (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
VALVE, IN. (NOT AVAILABLE)
N
Price unavailable
CAP, FILLER
008
Honda
CAP, FILLER78117-YB7-020
Required: 2
CAP, FILLER
N
Cross Ship
Leaves in 2-5 days
$13.46
$11.44
You save $2.02
More details
CAP, FILLER
008
Honda
CAP, FILLER78117-YF3-702
Required: 2
CAP, FILLER
N
Cross Ship
Leaves in 2-5 days
$13.46
$11.44
You save $2.02
More details
009
SHIM A, ADJUSTER (0.3) (STD) (NOT AVAILABLE)
N
Price unavailable
009
SHIM B, ADJUSTER (OVER SIZE) (0.5) (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
SEAL ASSY., MECHANICAL (NOT AVAILABLE)
N
Price unavailable
011
Required: 4
BOLT, FLANGE (8X28) (NOT AVAILABLE)
N
Price unavailable
BOLT, FLANGE (8X25)
012
Honda
BOLT, FLANGE (8X25)90102-YF3-702
Required: 7
BOLT, FLANGE (8X25)
N
Cross Ship
Leaves in 2-5 days
$2.38
$2.02
You save $0.36
More details
013
Required: 1
BOLT, FLANGE (6X60) (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
BOLT, FLANGE (6X50) (NOT AVAILABLE)
N
Price unavailable
WASHER (8MM)
015
Honda
WASHER (8MM)90474-YF3-702
Required: 4
WASHER (8MM)
N
Cross Ship
Leaves in 2-5 days
$2.36
$2.01
You save $0.35
More details
O-RING (86X3.5)
016
Honda
O-RING (86X3.5)91351-YF4-702
Required: 1
O-RING (86X3.5)
N
Cross Ship
Leaves in 2-5 days
$6.04
$5.13
You save $0.91
More details
017
Required: 2
O-RING (24X3.5) (NOT AVAILABLE)
N
Price unavailable
018
Required: 1
O-RING (70X5.7) (NOT AVAILABLE)
N
Price unavailable
O-RING (225X3.5)
019
Honda
O-RING (225X3.5)91354-YF4-702
Required: 1
O-RING (225X3.5)
N
Cross Ship
Leaves in 2-5 days
$15.64
$13.29
You save $2.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
