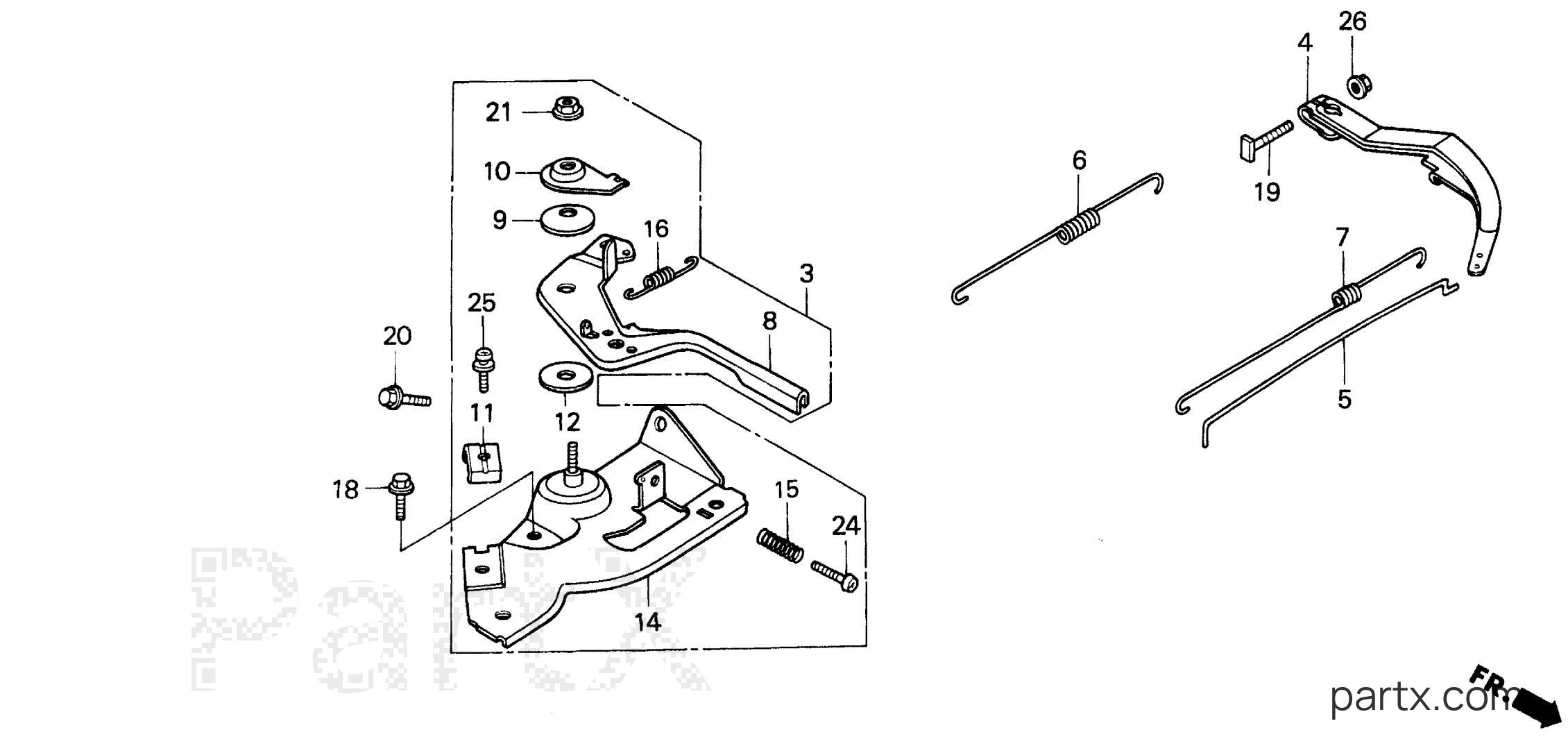

All Years Pumps WDP - WDP30XK1 AT CONTROL diagram
003
Honda
CONTROL ASSY.16500-ZH7-820
Required: 1
CONTROL ASSY. (REMOTE)
N
$31.65
You save $5.59
004
Honda
ARM, GOVERNOR16551-ZE0-010
Required: 1
ARM, GOVERNOR
N
$12.92
You save $2.28
005
Honda
ROD, GOVERNOR16555-ZE0-000
Required: 1
ROD, GOVERNOR
N
$5.02
You save $0.88
-50%
006
Honda
SPRING, GOVERNOR16561-ZE0-030
Required: 1
SPRING, GOVERNOR
N
In stock
Only 1 remaining
$1.82
You save $1.82
-50%
007
Honda
SPRING16562-ZE0-020
Required: 1
SPRING, THROTTLE RETURN
N
In stock
Only 2 remaining
$2.20
You save $2.20
008
Honda
LEVER, CONTROL16571-ZH7-000
Required: 1
LEVER, CONTROL
N
$12.60
You save $2.22
009
Honda
SPRING, LEVER16574-ZE1-000
Required: 1
SPRING, LEVER
N
$3.50
You save $0.62
010
Honda
WASHER16575-ZH8-000
Required: 1
WASHER, CONTROL LEVER
N
$4.78
You save $0.84
011
Honda
HOLDER, CABLE16576-891-000
Required: 1
HOLDER, CABLE
N
$4.20
You save $0.74
012
Honda
SPACER16578-ZE1-000
Required: 1
SPACER, CONTROL LEVER
N
$4.44
You save $0.78
014
Honda
BASE, CONTROL16580-ZH7-810
Required: 1
BASE, CONTROL
N
$16.90
You save $2.98
015
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
N
$4.13
You save $0.73
016
Honda
SPRING, CABLE RETURN16592-ZE1-810
Required: 1
SPRING, CABLE RETURN
N
$1.85
You save $0.33
018
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
N
In stock
Only 3 remaining
$1.60
You save $0.28
019
Honda
BOLT, GOVERNOR ARM90015-ZE5-010
Required: 1
BOLT, GOVERNOR ARM
N
$2.60
You save $0.46
020
Honda
BOLT (6X20) (CT200)90022-888-010
Required: 1
BOLT, FLANGE (6X20) (CT200)
N
$2.50
You save $0.44
021
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
N
In stock
Only 3 remaining
$3.12
You save $0.78
024
Honda
SCREW, PAN (5X25)93500-05025-0H
Required: 1
SCREW, PAN (5X25)
N
$0.78
You save $0.14
025
Honda
SCREW, PAN (5X16)93500-05016-0A
Required: 1
SCREW, PAN (5X16)
N
$0.94
You save $0.17
025
Honda
SCREW-WASHER (5X16)93893-05016-00
Required: 1
SCREW-WASHER (5X16)
N
$1.14
You save $0.20
026
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
N
$0.66
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
