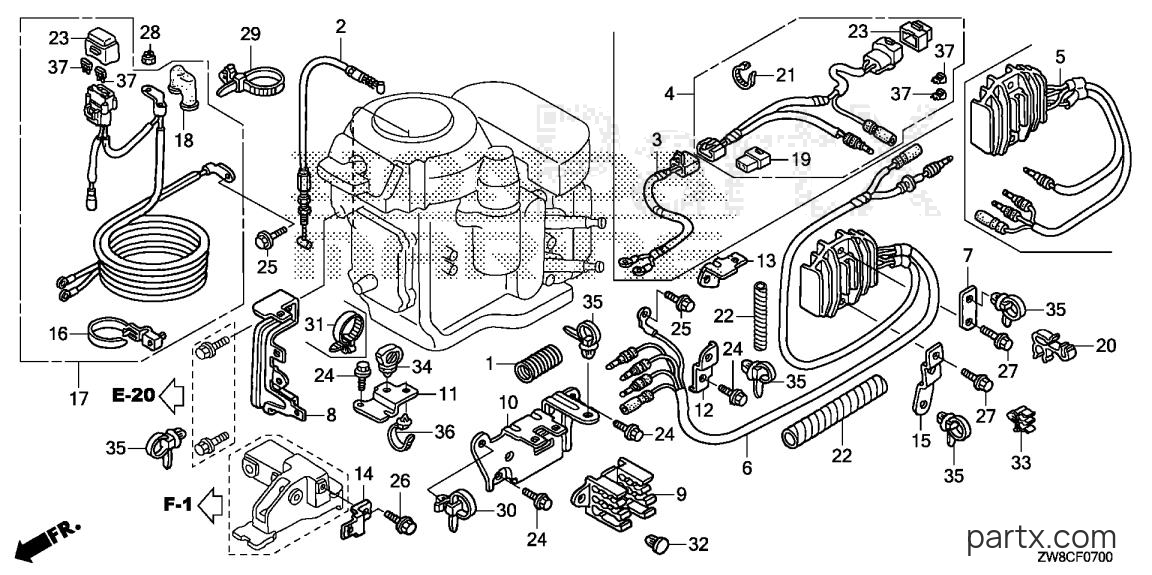

2007 And Later Outboard BF - BF9.9DK3 LRA REGULATOR - STARTER CABLE (1) diagram
001
Honda
TUBE (15MM)17735-ZW9-730
Required: 1
TUBE, CORRUGATE (15MM)
N
$2.11
You save $0.37
002
Honda
CABLE17940-ZW9-010
Required: 1
CABLE, NEUTRAL STARTING
N
$14.18
You save $2.50
006
Honda
RECTIFIER, REGULATOR31750-ZW9-732
Required: 1
RECTIFIER ASSY., REGULATOR
N
$117.84
You save $20.80
007
Honda
BRACKET, CLIP F32103-ZW9-020
Required: 1
BRACKET, CLIP F
N
$1.61
You save $0.28
008
Honda
BRACKET, CONNECTOR A32108-ZW9-010
Required: 1
BRACKET, CONNECTOR A
N
$11.00
You save $1.94
009
Honda
BRACKET, CONNECTOR32109-ZV4-000
Required: 1
BRACKET, CONNECTOR (B)
N
$9.32
You save $1.64
010
Honda
BRACKET, CONNECTOR C32111-ZW9-010
Required: 1
BRACKET, CONNECTOR C
N
$12.82
You save $2.26
011
Honda
BRKT, STARTER CABLE32112-ZW9-010
Required: 1
BRACKET, STARTER CABLE
N
$4.73
You save $0.83
012
Honda
BRACKET, CLIP B32114-ZVL-000
Required: 1
BRACKET, CLIP B
N
$3.26
You save $0.58
013
Honda
BRACKET, FUSE CASE32115-ZW9-010
Required: 1
BRACKET, FUSE CASE
N
$4.28
You save $0.76
015
Honda
BRACKET, E-CLIP32118-ZW9-731
Required: 1
BRACKET, E-CLIP
N
$5.12
You save $0.90
016
Honda
BAND, WIRE32121-HA0-003
Required: 1
BAND, WIRE
N
$8.82
You save $1.56
016
Honda
BAND, WIRE (165MM)90651-KV6-003
Required: 1
BAND, WIRE (165MM) (BLACK)
N
$3.62
You save $0.64
017
Honda
CABLE ASSY., STARTER32410-ZW9-731
Required: 1
CABLE ASSY., STARTER
N
$199.87
You save $35.27
018
Honda
COVER32412-ZY1-801
Required: 1
COVER, MAGNETIC SWITCH TERMINAL
N
$4.64
You save $0.82
020
Honda
CLAMP32765-PD6-000
Required: 1
CLAMP, DISTRIBUTOR WIRE
N
$5.68
You save $1.00
022
Honda
TUBE, SPIRAL A36104-ZW9-003
Required: 2
TUBE, SPIRAL A
N
$8.65
You save $1.53
023
Honda
COVER, FUSE (20A)38218-ZW9-003
Required: 1
COVER ASSY., FUSE (20A)
N
$7.38
You save $1.30
024
Honda
BOLT (6X14) (CT200)90011-ZW9-000
Required: 4
BOLT, FLANGE (6X14) (CT200)
N
$1.94
You save $0.34
024
Honda
BOLT (6X14) (CT200)90011-ZZ5-M01
Required: 4
BOLT, FLANGE (6X14) (CT200)
N
$1.34
You save $0.24
-50%
025
Honda
BOLT, FLANGE (6X12)90013-ZW9-000
Required: 2
BOLT, FLANGE (6X12)
N
In stock
Only 4 remaining
$0.98
You save $0.98
-50%
027
Honda
BOLT (6X26) (CT200)90114-ZW9-030
Required: 2
BOLT, FLANGE (6X26) (CT200)
N
In stock
Only 2 remaining
$1.30
You save $1.30
028
Honda
NUT, LOCK (6MM)90204-ZY1-003
Required: 1
NUT, LOCK (6MM)
N
$4.52
You save $0.80
029
Honda
BAND, WIRE (95MM)90650-KV6-003
Required: 1
BAND, WIRE (95MM)
N
$3.55
You save $0.63
030
Honda
STRAP, CABLE (118MM)90672-SA0-003
Required: 1
STRAP, CABLE (118MM) (BLACK)
N
$7.77
You save $1.37
032
Honda
CLIP, ANCHOR90683-ZV4-003
Required: 1
CLIP, ANCHOR
N
$2.04
You save $0.36
033
Honda
CLIP, FUEL TUBE90684-SB3-003
Required: 1
CLIP, FUEL TUBE
N
$6.54
You save $1.16
-50%
035
Honda
CLIP (151.5MM)91540-S30-003
Required: 5
CLIP, HARNESS BAND (151.5MM) (NATURAL)
N
In stock
Only 3 remaining
$2.09
You save $2.09
036
Honda
BAND, HARN (123.5MM)91547-SF4-003
Required: 1
BAND, WIRE HARNESS (123.5MM) (BLUE)
N
$6.60
You save $1.16
037
Honda
FUSE, BLADE (20A)98200-32000
Required: 2
FUSE, BLADE (20A)
N
$1.36
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
