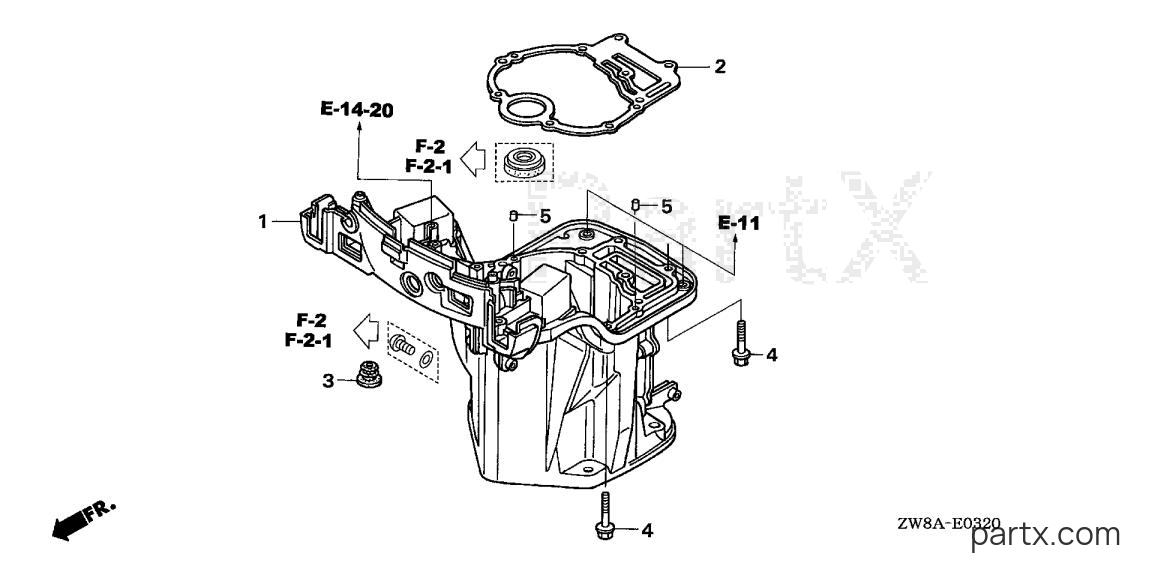

All Years Outboard BFP - BFP8D5 LHTA OIL CASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

001

Honda

CASE, OIL *NH282MU*11321-ZW9-425ZA

Required: 1

CASE, OIL *NH282MU*(OYSTER SILVER METALLIC-U)

~~$562.64~~

$478.24

You save $84.40

More details

002

Honda

GASKET, OIL PAN11381-ZW9-003

Required: 1

GASKET, OIL PAN

~~$25.58~~

$21.74

You save $3.84

More details

003

Honda

GROMMET, WATER TUBE19252-ZW9-000

Required: 1

GROMMET, WATER TUBE

~~$6.96~~

$5.92

You save $1.04

More details

004

Honda

BOLT, FLANGE (8X35)90008-ZW9-000

Required: 9

BOLT, FLANGE (8X35)

~~$5.72~~

$4.86

You save $0.86

More details

005

Honda

PIN, DOWEL (6X10)94301-06100

Required: 2

PIN, DOWEL (6X10)

~~$2.74~~

$2.33

You save $0.41

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
