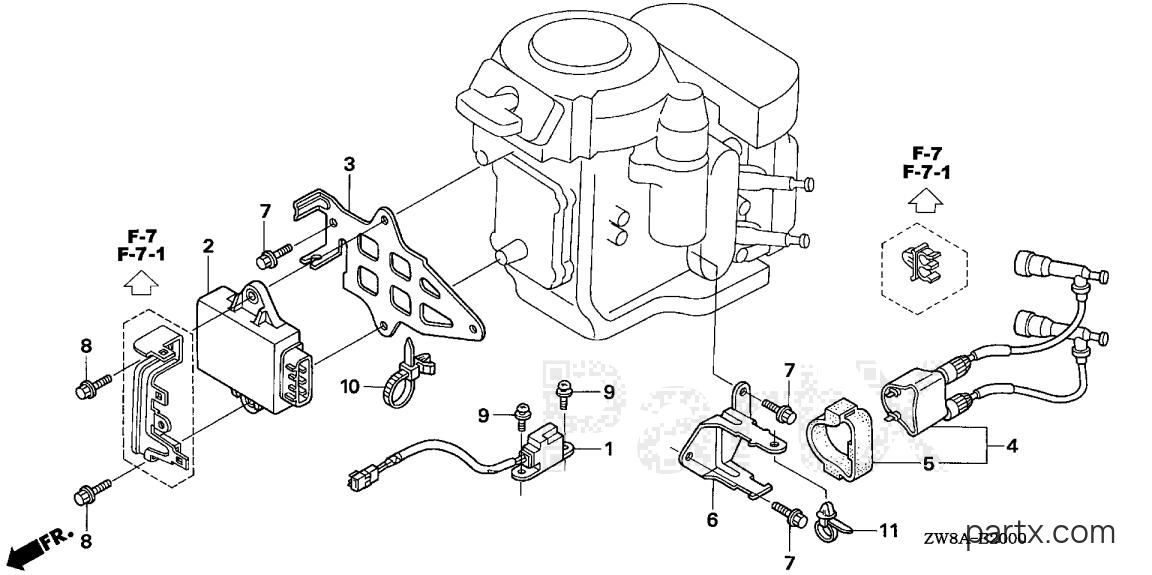

2005 Outboard BF - BF9.9D5 LRA IGNITION COIL - C.D.I. UNIT diagram
001
Honda
COIL ASSY., PULSER30310-ZW9-003
Required: 1
COIL ASSY., PULSER
N
$62.78
You save $11.08
002
Honda
MODULE, IGN CONT30400-ZW8-003
Required: 1
MODULE, IGNITION CONTROL (CDI)
N
$227.95
You save $40.04
003
Honda
PLATE, C.D.I.30401-ZW9-010
Required: 1
PLATE, C.D.I.
N
$14.65
You save $2.59
004
Required: 1
COIL ASSY., IGNITION
N
Price unavailable
004
Honda
COIL ASSY., IGNITION30500-ZW9-013
Required: 1
COIL ASSY., IGNITION
N
$61.43
You save $10.84
005
Honda
SUSPENSION30506-ML4-003
Required: 1
SUSPENSION, IGNITION COIL
N
$6.36
You save $1.12
005
Honda
SUSPENSION30506-ZW9-003
Required: 1
SUSPENSION, IGNITION COIL
N
$6.61
You save $1.17
006
Required: 1
BRACKET, IGNITION COIL
N
Price unavailable
006
Honda
BRKT, IGNITION COIL30515-ZW9-652
Required: 1
BRACKET, IGNITION COIL
N
$10.32
You save $1.82
007
Honda
BOLT (6X14) (CT200)90011-ZW9-000
Required: 3
BOLT, FLANGE (6X14) (CT200)
N
$1.94
You save $0.34
008
Required: 2
BOLT, FLANGE (6X25)
N
Price unavailable
009
Honda
SCREW-WASHER (5X16)90018-ZW9-000
Required: 2
SCREW-WASHER (5X16)
N
$1.46
You save $0.26
010
Honda
STRAP, CABLE (118MM)90672-SA0-003
Required: 1
STRAP, CABLE (118MM) (BLACK)
N
$7.77
You save $1.37
-50%
011
Honda
CLIP (151.5MM)91540-S30-003
Required: 1
CLIP, HARNESS BAND (151.5MM) (NATURAL)
N
In stock
Only 3 remaining
$2.09
You save $2.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
