All Years Outboard BFP - BFP8D1 LHA OIL CASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

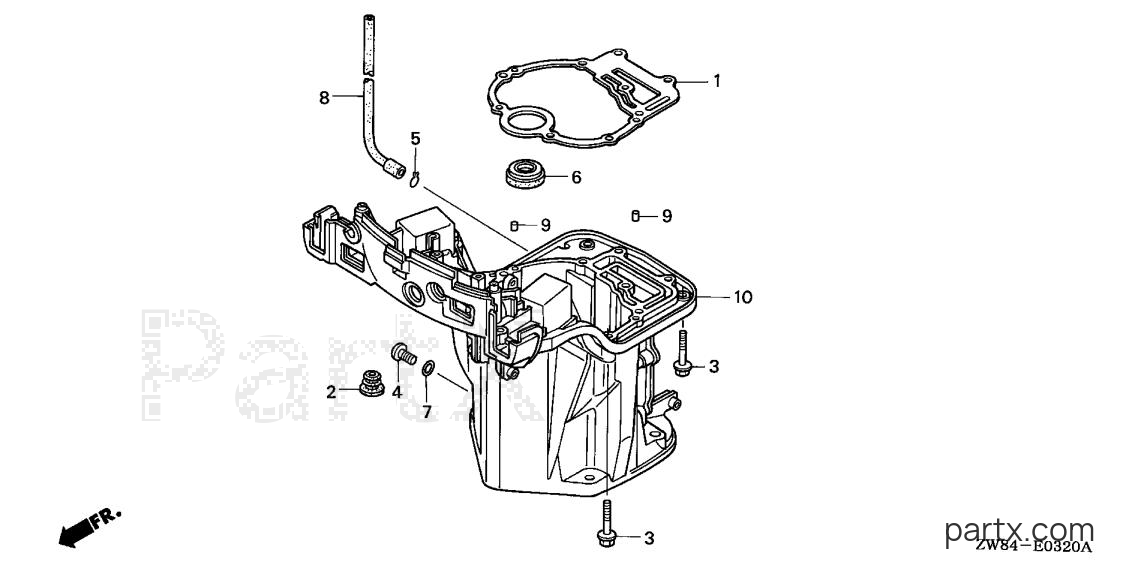

Honda BFP8D1 LHA - OIL CASE
Change View:
GASKET, OIL PAN
001
Honda
GASKET, OIL PAN11381-ZW9-003
Required: 1
GASKET, OIL PAN
N
Cross Ship
Leaves in 2-5 days
$25.58
$21.74
You save $3.84
More details
GROMMET, WATER TUBE
002
Honda
GROMMET, WATER TUBE19252-ZW9-000
Required: 1
GROMMET, WATER TUBE
N
Cross Ship
Leaves in 2-5 days
$6.96
$5.92
You save $1.04
More details
BOLT, FLANGE (8X35)
003
Honda
BOLT, FLANGE (8X35)90008-ZW9-000
Required: 9
BOLT, FLANGE (8X35)
N
Cross Ship
Leaves in 2-5 days
$5.72
$4.86
You save $0.86
More details
004
Required: 1
BOLT, OIL CHECK (NOT AVAILABLE)
N
Price unavailable
CLIP, TUBE (B10)
005
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 1
CLIP, TUBE (B10)
N
Cross Ship
Leaves in 2-5 days
$1.88
$1.60
You save $0.28
More details
SEAL (13X28X7)
006
Honda
SEAL (13X28X7)91202-ZW9-632
Required: 1
SEAL, WATER (13X28X7)
N
Cross Ship
Leaves in 2-5 days
$7.84
$6.66
You save $1.18
More details
O-RING (5.5X1.5)
007
Honda
O-RING (5.5X1.5)91301-216-000
Required: 1
O-RING (5.5X1.5)
N
Cross Ship
Leaves in 2-5 days
$3.04
$2.58
You save $0.46
More details
TUBE, WATER CHECK
008
Honda
TUBE, WATER CHECK91402-ZW9-010
Required: 1
TUBE, WATER CHECK
N
Cross Ship
Leaves in 2-5 days
$5.78
$4.91
You save $0.87
More details
PIN, DOWEL (6X10)
009
Honda
PIN, DOWEL (6X10)94301-06100
Required: 2
PIN, DOWEL (6X10)
N
Cross Ship
Leaves in 2-5 days
$2.74
$2.33
You save $0.41
More details
010
Required: 1
CASE, OIL (NOT AVAILABLE)
N
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
