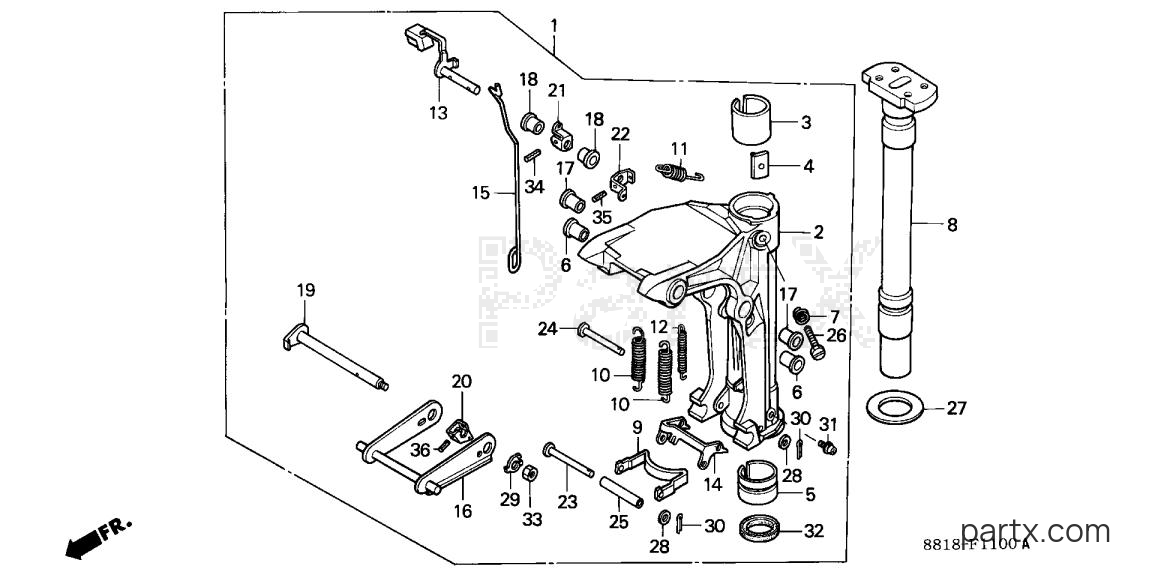

2005 Outboard BF - BF8A5 SA SWIVEL CASE diagram
001
Honda
CASE ASSY. *NH282MU*50200-881-844ZB
Required: 1
CASE ASSY., SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$275.12
You save $48.55
002
Required: 1
CASE, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
Price unavailable
003
Honda
LINER, SWIVEL CASE50211-881-010
Required: 1
LINER, SWIVEL CASE (NOT AVAILABLE)
N
$12.82
You save $2.26
004
Honda
BLOCK, FRICTION50212-881-000
Required: 1
BLOCK, FRICTION
N
$6.38
You save $1.13
005
Honda
BUSH, SWIVEL SHAFT50213-881-000
Required: 1
BUSH, SWIVEL SHAFT (NOT AVAILABLE)
N
$21.61
You save $3.81
006
Honda
BUSH, SWIVEL CASE50214-ZV4-003
Required: 2
BUSH, SWIVEL CASE
N
$7.12
You save $1.26
007
Honda
SPRING50233-881-000
Required: 1
SPRING, FRICTION ADJUSTING
N
$5.24
You save $0.92
008
Honda
SHAFT *NH282MU*50417-881-840ZB
Required: 1
SHAFT, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$143.39
You save $25.31
009
Required: 1
HOOK, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
010
Honda
SPRING, REVERSE LOCK50514-ZV4-000
Required: 2
SPRING, REVERSE LOCK (NOT AVAILABLE)
N
$12.97
You save $2.29
011
Honda
SPRING, TILT LEVER50515-ZV4-300
Required: 1
SPRING, TILT LEVER (NOT AVAILABLE)
N
$3.94
You save $0.70
012
Honda
SPRING, TILT LINK50516-ZV4-300
Required: 1
SPRING, TILT LINK
N
$5.27
You save $0.93
013
Honda
LEVER, TILT50517-ZV4-020
Required: 1
LEVER, TILT (NOT AVAILABLE)
N
$17.22
You save $3.04
014
Required: 1
ARM, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)
N
Price unavailable
$66.11
You save $11.67
017
Honda
BUSH, TILT LEVER50521-ZV1-000
Required: 2
BUSH, TILT LEVER
N
$6.65
You save $1.17
018
Honda
BUSH, TILT LEVER50522-ZV4-000
Required: 2
BUSH, TILT LEVER
N
$5.66
You save $1.00
019
Honda
SHAFT, TILT50525-ZV4-010
Required: 1
SHAFT, TILT
N
$25.04
You save $4.42
020
Honda
BRACKET, TILT SHAFT50526-ZV4-000
Required: 1
BRACKET, TILT SHAFT
N
$9.74
You save $1.72
021
Honda
BRACKET, RELEASE ROD50527-ZV4-010
Required: 1
BRACKET, RELEASE ROD
N
$5.63
You save $0.99
022
Honda
BRACKET, TILT LEVER50528-ZV4-010
Required: 1
BRACKET, TILT LEVER
N
$5.63
You save $0.99
023
Required: 1
SHAFT, REVERSE LOCK (A) (NOT AVAILABLE)
N
Price unavailable
024
Honda
SHAFT, REVERSE LOCK50532-ZV4-000
Required: 1
SHAFT, REVERSE LOCK (B)
N
$7.65
You save $1.35
025
Required: 1
COLLAR, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
026
Honda
BOLT, SPECIAL (8X20)90109-ZV4-000
Required: 1
BOLT, SPECIAL (8X20)
N
$4.13
You save $0.73
027
Honda
WASHER, THRUST90454-881-000
Required: 1
WASHER, THRUST
N
$3.18
You save $0.56
028
Honda
WASHER, PLAIN (6MM)90504-921-010
Required: 2
WASHER, PLAIN (6MM)
N
$1.43
You save $0.25
029
Honda
WASHER, LOCK90505-ZV4-000
Required: 1
WASHER, LOCK
N
$3.37
You save $0.59
030
Honda
PIN, SPLIT (2.0)90759-ZV1-000
Required: 2
PIN, SPLIT (2.0)
N
$1.60
You save $0.28
031
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 1
NIPPLE, GREASE
N
In stock
Only 3 remaining
$2.14
You save $0.38
032
Honda
OIL SEAL (32X37X7)91256-881-004
Required: 1
OIL SEAL (32X37X7) (NOK) (NOT AVAILABLE)
N
$10.68
You save $1.88
033
Honda
NUT, HEX. (6MM)94002-06490-0S
Required: 1
NUT, HEX. (6MM)
N
$2.79
You save $0.49
034
Honda
PIN, SPRING (3.0X22)90751-ZV4-C21
Required: 1
PIN, SPRING (3.0X22)
N
$3.06
You save $0.54
035
Honda
PIN, SPRING (3.0X25)90752-ZV4-C21
Required: 1
PIN, SPRING (3.0X25)
N
$3.06
You save $0.54
036
Honda
PIN, SPRING (3.0X25)90752-ZV4-C21
Required: 1
PIN, SPRING (3.0X25)
N
$3.06
You save $0.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
