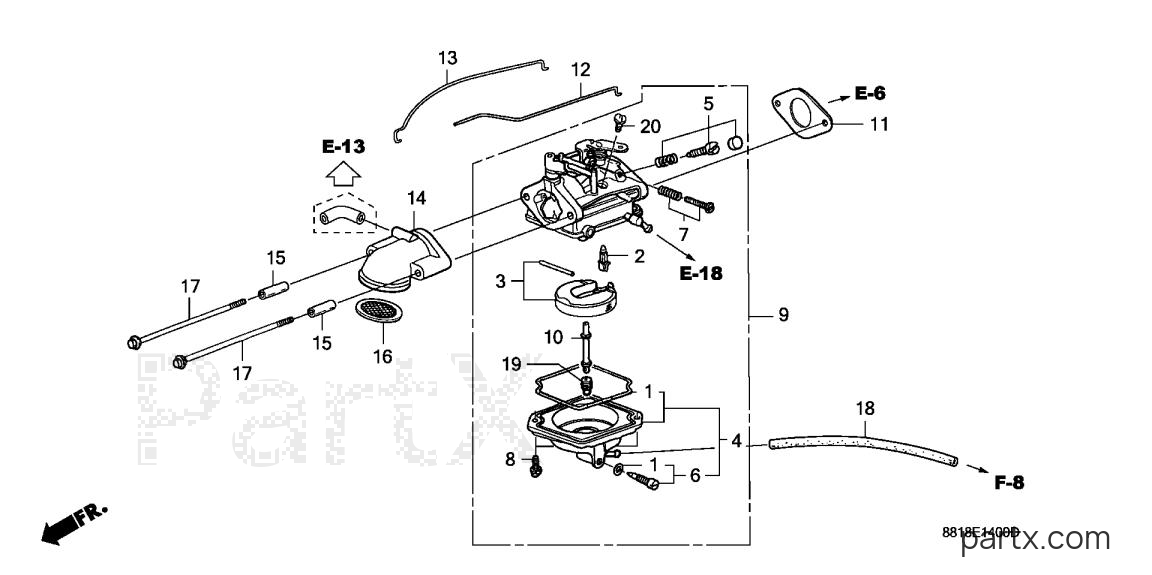

2000 Outboard BF - BF8AY XA CARBURETOR diagram
001
Honda
GASKET SET16010-881-A00
Required: 1
GASKET SET
N
$13.87
You save $2.45
002
Honda
VALVE SET, FLOAT16011-881-741
Required: 1
VALVE SET, FLOAT
N
$27.34
You save $4.82
003
Honda
FLOAT SET16013-881-003
Required: 1
FLOAT SET (NOT AVAILABLE)
N
$17.83
You save $3.15
004
Required: 1
CHAMBER SET, FLOAT (NOT AVAILABLE)
N
Price unavailable
005
Honda
SCREW SET16016-ZV1-E01
Required: 1
SCREW SET (NOT AVAILABLE)
N
$10.34
You save $1.82
006
Honda
SCREW SET, DRAIN16024-ZY3-000
Required: 1
SCREW SET, DRAIN
N
$13.77
You save $2.43
$11.12
You save $1.96
008
Honda
SCREW, PAN16081-ZV1-A00
Required: 2
SCREW, PAN
N
$1.97
You save $0.35
009
Required: 1
CARBURETOR ASSY. (BC01G B) (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
NOZZLE, MAIN (NOT AVAILABLE)
N
Price unavailable
011
Honda
GASKET, CARBURETOR16201-881-850
Required: 1
GASKET, CARBURETOR
N
$2.77
You save $0.69
012
Required: 1
ROD, THROTTLE (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
ROD, CHOKE (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
GUIDE, AIR
N
Price unavailable
014
Required: 1
GUIDE, AIR (NOT AVAILABLE)
N
Price unavailable
015
Required: 2
COLLAR, DISTANCE (NOT AVAILABLE)
N
Price unavailable
016
Required: 1
TRAP, FLAME (NOT AVAILABLE)
N
Price unavailable
017
Required: 2
BOLT, FLANGE (6X97) (NOT AVAILABLE)
N
Price unavailable
018
Honda
BULK HOSE, VINYL95003-05008-60M
Required: 1
BULK HOSE, VINYL (3.5X6.5X8000) OEM CUT SIZE: (3.5X6.5X140)
N
$23.20
You save $4.10
-50%
019
Honda
JET, MAIN (#82)99101-ZH8-0820
Required: 1
JET, MAIN (#82)
N
In stock
Only 1 remaining
$3.93
You save $3.93
019
Honda
JET, MAIN (#85)99101-ZH8-0850
Required: 1
JET, MAIN (#85)
N
$6.68
You save $1.18
019
Honda
JET, MAIN (#88)99101-ZH8-0880
Required: 1
JET, MAIN (#88)
N
$6.68
You save $1.18
020
Honda
JET (#40)99103-881-0400
Required: 1
JET (#40) (NOT AVAILABLE)
N
$13.29
You save $2.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
