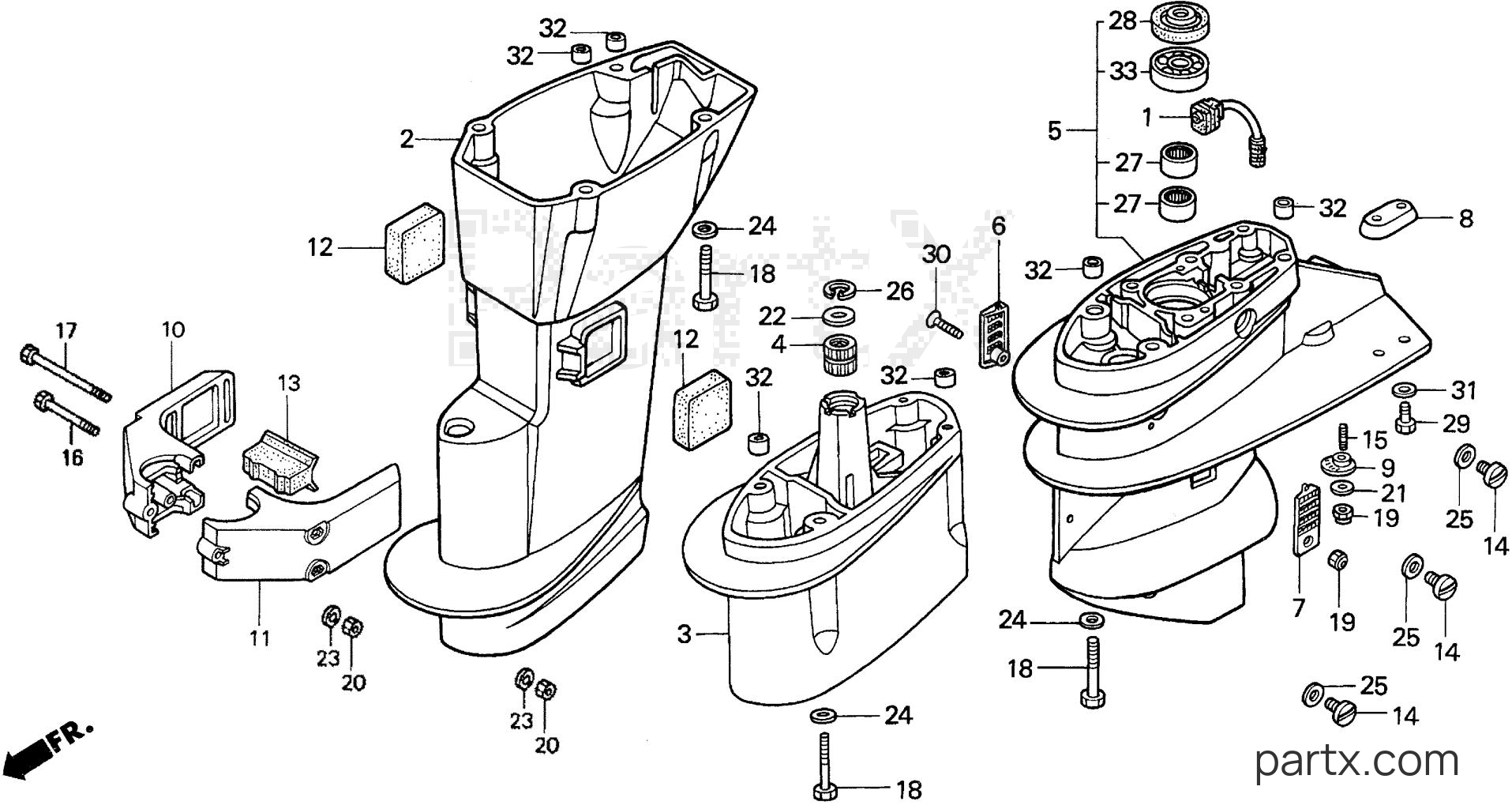

1997 Outboard BF - BF15AM SAS EXTENSION CASE diagram
001
Required: 1
TUBE, WATER (LOWER) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
CASE, EXTENSION *NH210MC* (L)(AQUA SILVER METALLIC-C)
N
Price unavailable
005
Required: 1
CASE, GEAR *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
006
Required: 1
SCREEN, R. WATER
N
Price unavailable
007
Honda
SCREEN, L. WATER41105-ZV4-010
Required: 1
SCREEN, L. WATER (NOT AVAILABLE)
N
$4.18
You save $0.74
008
Honda
METAL, ANODE41106-935-812
Required: 1
METAL, ANODE
N
$11.02
You save $1.94
009
Honda
SCREEN, WATER41108-ZV4-000
Required: 1
SCREEN, WATER (LOWER)
N
$5.61
You save $0.99
010
Required: 1
HOUSING, R. MOUNTING (LOWER) *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
011
Required: 1
HOUSING, L. MOUNTING (LOWER) *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
012
Required: 2
RUBBER, MOUNT (LOWER) (A)
N
Price unavailable
013
Required: 1
RUBBER, MOUNT (LOWER) (B) (NOT AVAILABLE)
N
Price unavailable
014
Honda
BOLT, OIL CHECK90105-ZV4-000
Required: 3
BOLT, OIL CHECK (NOT AVAILABLE)
N
$5.56
You save $0.98
015
Honda
BOLT, STUD (5X12)90106-ZV4-010
Required: 1
BOLT, STUD (5X12)
N
$3.08
You save $0.54
016
Honda
BOLT, HEX. (6X45)90121-ZV4-000
Required: 1
BOLT, HEX. (6X45)
N
$3.79
You save $0.67
017
Required: 2
BOLT, HEX. (6X130) (NOT AVAILABLE)
N
Price unavailable
018
Required: 8
BOLT, HEX. (8X50) (NOT AVAILABLE)
N
Price unavailable
019
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 2
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
020
Honda
NUT, HEX. (6MM)90304-ZV4-000
Required: 3
NUT, HEX. (6MM)
N
$2.40
You save $0.42
021
Honda
WASHER, PLAIN (5MM)90452-GK4-600
Required: 1
WASHER, PLAIN (5MM)
N
$1.44
You save $0.26
021
Honda
WASHER, PLAIN (5MM)90502-ZV4-000
Required: 1
WASHER, PLAIN (5MM)
N
$3.09
You save $0.55
023
Required: 3
WASHER, PLAIN (6X13X1.5) (NOT AVAILABLE)
N
Price unavailable
023
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 3
WASHER, PLAIN (6MM)
N
$2.77
You save $0.49
024
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 8
WASHER, PLAIN (8MM)
N
$2.50
You save $0.44
025
Honda
WASHER, NYLON (8MM)90507-921-000
Required: 3
WASHER, NYLON (8MM)
N
In stock
Only 5 remaining
$1.00
You save $0.18
027
Honda
BEARING (15X21X12)91052-ZV4-003
Required: 2
BEARING, NEEDLE (15X21X12)
N
$12.63
You save $2.23
028
Honda
SEAL, WATER (15MM)91252-935-004
Required: 1
SEAL, WATER (15MM) (NOK)
N
$19.31
You save $3.41
029
Honda
BOLT, HEX. (6X16)92101-06016-0B
Required: 2
BOLT, HEX. (6X16)
N
$1.34
You save $0.24
030
Required: 1
SCREW, OVAL (5X25) (NOT AVAILABLE)
N
Price unavailable
031
Honda
WASHER, PLAIN (6MM)94101-06200
Required: 2
WASHER, PLAIN (6MM)
N
$0.71
You save $0.13
032
Honda
PIN A, DOWEL (10X14)94301-10140
Required: 4
PIN A, DOWEL (10X14)
N
$2.55
You save $0.45
033
Honda
BEARING (6302)96100-63020-00
Required: 1
BEARING, RADIAL BALL (6302)
N
$9.81
You save $1.73
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
