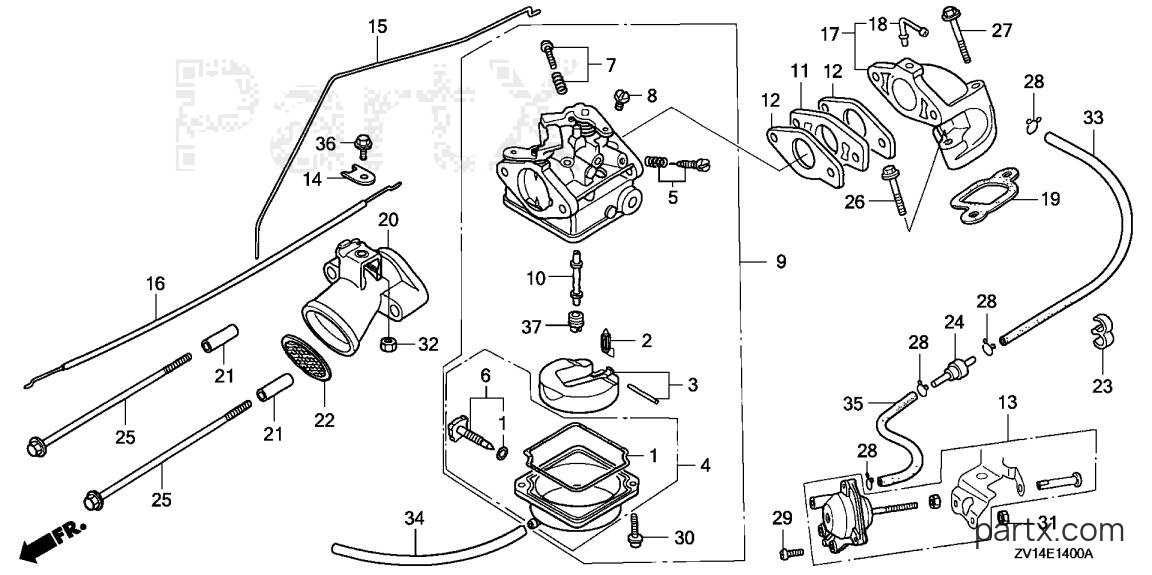

All Years Outboard BF - BF5AK LA CARBURETOR diagram
001
Honda
GASKET SET16010-881-003
Required: 1
GASKET SET
N
$16.34
You save $2.88
002
Honda
VALVE SET, FLOAT16011-881-741
Required: 1
VALVE SET, FLOAT
N
$27.34
You save $4.82
003
Required: 1
FLOAT SET
N
Price unavailable
004
Honda
CHAMBER SET, FLOAT16015-ZVD-701
Required: 1
CHAMBER SET, FLOAT
N
$48.48
You save $8.56
005
Required: 1
SCREW SET
N
Price unavailable
006
Honda
SCREW SET, DRAIN16024-881-003
Required: 1
SCREW SET, DRAIN
N
$8.76
You save $1.54
007
Required: 1
SCREW SET
N
Price unavailable
008
Required: 1
SCREW, PLUG (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
CARBURETOR ASSY. (BC05B C)
N
Price unavailable
010
Required: 1
NOZZLE, MAIN (NOT AVAILABLE)
N
Price unavailable
011
Honda
INSULATOR, CARB16211-ZV1-000
Required: 1
INSULATOR, CARBURETOR
N
$6.54
You save $1.16
012
Honda
GASKET, CARBURETOR16221-ZV1-850
Required: 2
GASKET, CARBURETOR
N
$2.11
You save $0.37
013
Required: 1
DIAPHRAGM ASSY. (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
HOLDER, CABLE (NOT AVAILABLE)
N
Price unavailable
015
Honda
ROD, THROTTLE16593-ZV1-000
Required: 1
ROD, THROTTLE
N
$11.08
You save $1.96
016
Required: 1
CABLE, CHOKE (NOT AVAILABLE)
N
Price unavailable
017
Required: 1
MANIFOLD, IN. *NH8*(DARK GRAY) (NOT AVAILABLE)
N
Price unavailable
018
Required: 1
JOINT, TUBE (NOT AVAILABLE)
N
Price unavailable
019
Honda
GASKET, IN. MANIFOLD17151-ZV1-850
Required: 1
GASKET, IN. MANIFOLD
N
$1.89
You save $0.33
020
Required: 1
GUIDE, AIR
N
Price unavailable
021
Required: 2
COLLAR, DISTANCE
N
Price unavailable
021
Honda
COLLAR, DISTANCE17202-ZV1-010
Required: 2
COLLAR, DISTANCE
N
$3.59
You save $0.63
022
Required: 1
TRAP, FLAME (NOT AVAILABLE)
N
Price unavailable
023
Required: 1
CLIP, TUBE (NOT AVAILABLE)
N
Price unavailable
024
Honda
VALVE, DASHPOT CHECK36135-ZV1-003
Required: 1
VALVE, DASHPOT CHECK (NOT AVAILABLE)
N
$28.34
You save $5.00
025
Honda
BOLT, FLANGE (6X102)90012-ZV1-010
Required: 2
BOLT, FLANGE (6X102)
N
$3.25
You save $0.57
026
Honda
BOLT (6X28) (CT200)90015-ZV0-000
Required: 1
BOLT, FLANGE (6X28) (CT200)
N
$2.99
You save $0.53
027
Honda
BOLT, FLANGE (6X42)90125-ZV1-010
Required: 1
BOLT, FLANGE (6X42)
N
$2.11
You save $0.37
028
Honda
CLIP B7, TUBE90605-921-000
Required: 4
CLIP B7, TUBE (NOT AVAILABLE)
N
$1.33
You save $0.23
029
Honda
SCREW, PAN (5X12)93500-05012-0B
Required: 2
SCREW, PAN (5X12)
N
$1.34
You save $0.24
030
Honda
SCREW-WASHER (4X12)93892-04012-08
Required: 2
SCREW-WASHER (4X12)
N
$0.66
You save $0.12
031
Honda
NUT, HEX. (5MM)94001-05490-0S
Required: 2
NUT, HEX. (5MM)
N
$1.04
You save $0.18
032
Honda
NUT, HEX. (6MM)94001-06020-0S
Required: 1
NUT, HEX. (6MM)
N
$1.43
You save $0.25
033
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X140)
N
$25.02
You save $4.42
034
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X165)
N
$25.02
You save $4.42
035
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X295)
N
$25.02
You save $4.42
036
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
N
In stock
Only 1 remaining
$1.58
You save $0.40
037
Honda
JET, MAIN (#70)99101-124-0700
Required: 1
JET, MAIN (#70)
N
$9.33
You save $1.65
037
Honda
JET, MAIN (#72)99101-124-0720
Required: 1
JET, MAIN (#72)
N
$9.33
You save $1.65
037
Honda
JET, MAIN (#75)99101-124-0750
Required: 1
JET, MAIN (#75)
N
$9.86
You save $1.74
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
