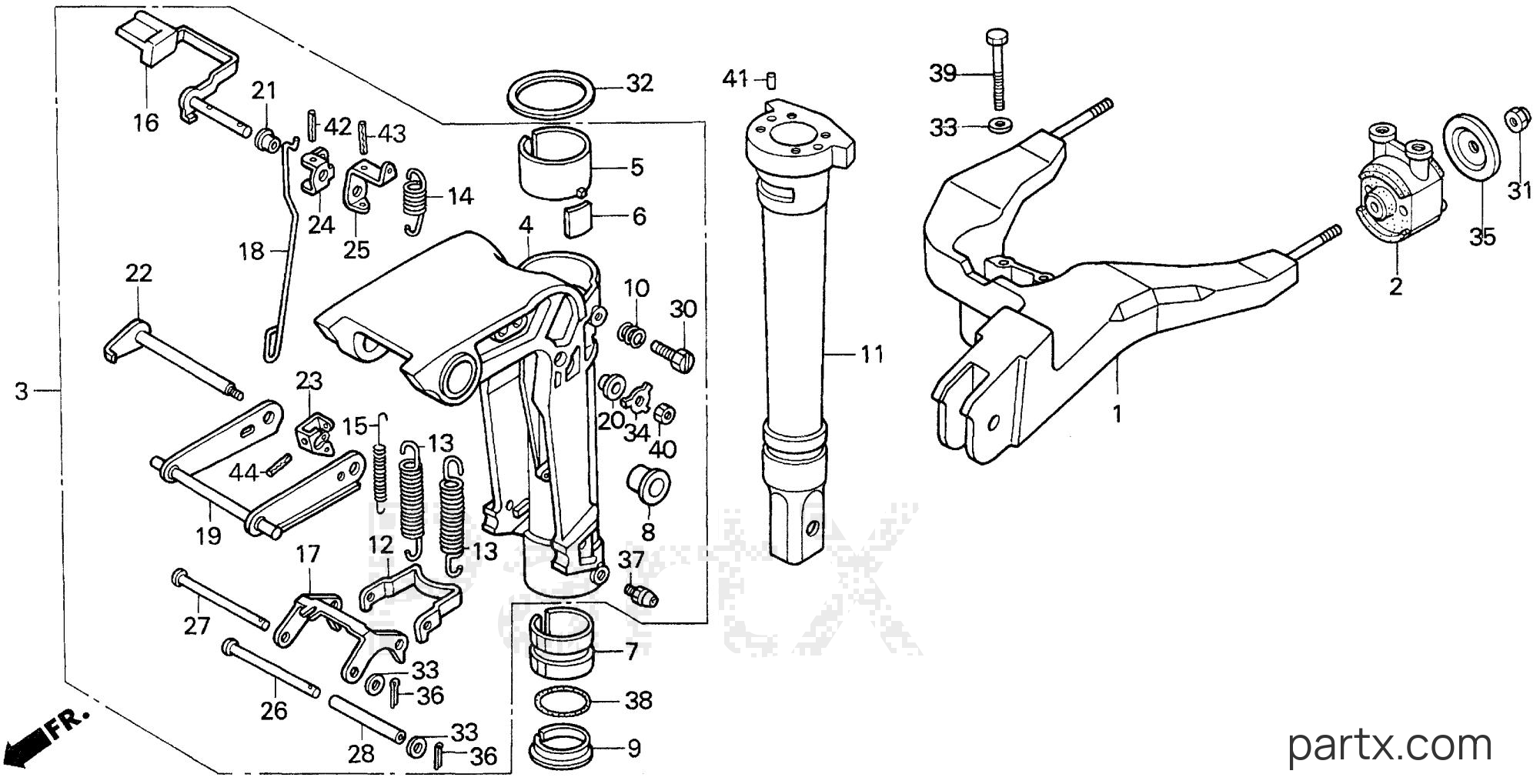

All Years Outboard BF - BF15AK SAS SWIVEL CASE diagram
001
Required: 1
FRAME, MOUNTING *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
002
Required: 2
MOUNT, RUBBER (UPPER) *NH210MC*(AQUA SILVER METALLIC-C) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
CASE ASSY., SWIVEL *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
004
Required: 1
CASE, SWIVEL *NH210MC*(AQUA SILVER METALLIC-C)
N
Price unavailable
005
Required: 1
LINER, SWIVEL CASE (NOT AVAILABLE)
N
Price unavailable
006
Honda
BLOCK, FRICTION50212-ZV4-000
Required: 1
BLOCK, FRICTION (NOT AVAILABLE)
N
$8.41
You save $1.48
007
Required: 1
BUSH, SWIVEL SHAFT (NOT AVAILABLE)
N
Price unavailable
008
Honda
BUSH, SWIVEL CASE50214-ZV4-003
Required: 2
BUSH, SWIVEL CASE
N
$7.12
You save $1.26
009
Required: 1
COLLAR, SWIVEL CASE (NOT AVAILABLE)
N
Price unavailable
010
Honda
SPRING50233-881-000
Required: 1
SPRING, FRICTION ADJUSTING
N
$5.24
You save $0.92
011
Required: 1
SHAFT, SWIVEL *NH210MC*(AQUA SILVER METALLIC-C) (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
HOOK, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
013
Honda
SPRING, REVERSE LOCK50514-ZV4-000
Required: 2
SPRING, REVERSE LOCK (NOT AVAILABLE)
N
$12.97
You save $2.29
014
Honda
SPRING, TILT LEVER50515-ZV4-300
Required: 1
SPRING, TILT LEVER (NOT AVAILABLE)
N
$3.94
You save $0.70
015
Honda
SPRING, TILT LINK50516-ZV4-300
Required: 1
SPRING, TILT LINK
N
$5.27
You save $0.93
016
Required: 1
LEVER, TILT
N
Price unavailable
017
Required: 1
ARM, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
018
Required: 1
ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)
N
Price unavailable
$66.11
You save $11.67
020
Honda
BUSH, TILT LEVER50521-ZV1-000
Required: 2
BUSH, TILT LEVER
N
$6.65
You save $1.17
021
Honda
BUSH, TILT LEVER50522-ZV4-000
Required: 2
BUSH, TILT LEVER
N
$5.66
You save $1.00
022
Required: 1
SHAFT, TILT
N
Price unavailable
022
Honda
SHAFT, TILT50525-ZV4-010
Required: 1
SHAFT, TILT
N
$25.04
You save $4.42
023
Honda
BRACKET, TILT SHAFT50526-ZV4-000
Required: 1
BRACKET, TILT SHAFT
N
$9.74
You save $1.72
024
Required: 1
BRACKET, RELEASE ROD (NOT AVAILABLE)
N
Price unavailable
025
Required: 1
BRACKET, TILT LEVER (NOT AVAILABLE)
N
Price unavailable
026
Required: 1
SHAFT, REVERSE LOCK (A) (NOT AVAILABLE)
N
Price unavailable
027
Honda
SHAFT, REVERSE LOCK50532-ZV4-000
Required: 1
SHAFT, REVERSE LOCK (B)
N
$7.65
You save $1.35
028
Required: 1
COLLAR, REVERSE LOCK (NOT AVAILABLE)
N
Price unavailable
030
Honda
BOLT, SPECIAL (8X20)90109-ZV4-000
Required: 1
BOLT, SPECIAL (8X20)
N
$4.13
You save $0.73
031
Honda
NUT, SELF-LOCK (8MM)90305-ZV4-000
Required: 2
NUT, SELF-LOCK (8MM)
N
$5.13
You save $0.91
032
Required: 1
WASHER, THRUST (51MM) (NOT AVAILABLE)
N
Price unavailable
033
Honda
WASHER, PLAIN (6MM)90504-921-010
Required: 6
WASHER, PLAIN (6MM)
N
$1.43
You save $0.25
034
Honda
WASHER, LOCK90505-ZV4-000
Required: 1
WASHER, LOCK
N
$3.37
You save $0.59
035
Honda
WASHER, PLAIN (8MM)90513-ZV4-000
Required: 2
WASHER, PLAIN (8MM)
N
$7.26
You save $1.28
036
Honda
PIN, SPLIT (2.0)90759-ZV1-000
Required: 2
PIN, SPLIT (2.0)
N
$1.60
You save $0.28
037
Required: 1
NIPPLE, GREASE (NOT AVAILABLE)
N
Price unavailable
038
Honda
O-RING (39.5X2.4)91356-MG9-003
Required: 1
O-RING (39.5X2.4) (ARAI)
N
$3.52
You save $0.62
039
Required: 4
BOLT, HEX. (6X45) (NOT AVAILABLE)
N
Price unavailable
040
Honda
NUT, HEX. (6MM)94002-06490-0S
Required: 1
NUT, HEX. (6MM)
N
$2.79
You save $0.49
041
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
N
$2.33
You save $0.41
042
Honda
PIN, SPRING (2.5X22)94305-25223
Required: 1
PIN, SPRING (2.5X22)
N
$1.51
You save $0.27
043
Honda
PIN, SPRING (2.5X25)94305-25253
Required: 1
PIN, SPRING (2.5X25)
N
$1.51
You save $0.27
044
Honda
PIN, SPRING (3X25)94305-30253
Required: 1
PIN, SPRING (3X25)
N
$1.51
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
