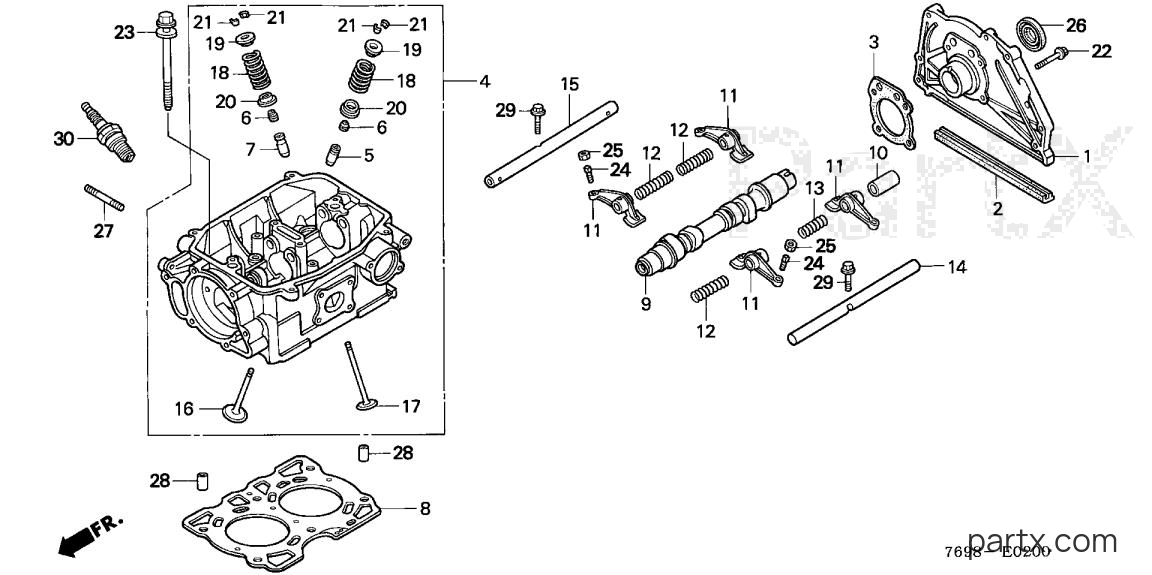

All Years Multi Purpose Tractor H - H5518 A2/B CYLINDER HEAD diagram
001
Required: 1
COVER, RR. TIMING BELT (NOT AVAILABLE)
N
Price unavailable
002
Honda
GASKET, RR.11842-ZG8-000
Required: 1
GASKET, RR. TIMING BELT COVER
N
$6.29
You save $1.11
003
Honda
GASKET, RR.11846-ZG8-000
Required: 1
GASKET, RR. TIMING BELT COVER
N
$6.29
You save $1.11
004
Honda
CYLINDER HEAD BARE12200-ZG8-L11
Required: 1
CYLINDER HEAD ASSY. BARE
N
$1074.52
You save $189.62
005
Required: 2
GUIDE, VALVE (OVER SIZE)
N
Price unavailable
006
Honda
SEAL, VALVE STEM12209-MA6-003
Required: 4
SEAL, VALVE STEM (ARAI)
N
$10.10
You save $1.78
007
Required: 2
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
N
Price unavailable
008
Honda
GASKET, CYL HD12251-ZG8-003
Required: 1
GASKET, CYLINDER HEAD
N
$63.49
You save $11.21
$272.41
You save $48.07
010
Honda
COLLAR, ROCKER ARM14482-ZG8-000
Required: 1
COLLAR, ROCKER ARM
N
$4.30
You save $0.76
011
Honda
ARM, ROCKER14621-ZG8-000
Required: 4
ARM, ROCKER
N
$34.88
You save $6.16
012
Honda
SPRING, ROCKER ARM A14628-ZG8-000
Required: 3
SPRING, ROCKER ARM A
N
$4.40
You save $0.78
013
Honda
SPRING, ROCKER ARM B14629-ZG8-000
Required: 1
SPRING, ROCKER ARM B
N
$3.62
You save $0.64
014
Honda
SHAFT14631-ZG8-000
Required: 1
SHAFT, IN. ROCKER ARM
N
$17.82
You save $3.14
015
Honda
SHAFT14641-ZG8-000
Required: 1
SHAFT, EX. ROCKER ARM
N
$27.15
You save $4.79
016
Honda
VALVE, IN.14711-ZG8-000
Required: 2
VALVE, IN.
N
$32.13
You save $5.67
017
Honda
VALVE, EX.14721-ZG8-010
Required: 2
VALVE, EX.
N
$45.87
You save $8.09
018
Honda
SPRING, VALVE14751-ZG8-000
Required: 4
SPRING, VALVE
N
$4.66
You save $0.82
019
Honda
RETAINER, VLV SPR14771-GB4-680
Required: 4
RETAINER, VALVE SPRING
N
$9.54
You save $1.68
020
Honda
SEAT, VALVE SPRING14775-ZG8-000
Required: 4
SEAT, VALVE SPRING
N
$3.45
You save $0.61
021
Honda
COTTER, VALVE14781-MA6-000
Required: 8
COTTER, VALVE
N
$3.32
You save $0.58
022
Honda
BOLT, FLANGE (6X30)90003-KN7-671
Required: 4
BOLT, FLANGE (6X30)
N
$3.32
You save $0.58
023
Honda
BOLT-WASHER (10X115)90005-PJ7-003
Required: 6
BOLT-WASHER (10X115)
N
$13.07
You save $2.31
024
Honda
SCREW, TAPPET ADJ90012-415-000
Required: 4
SCREW, TAPPET ADJUSTING
N
$6.58
You save $1.16
025
Honda
NUT, TAPPET ADJ90206-250-000
Required: 4
NUT, TAPPET ADJUSTING
N
$3.65
You save $0.65
026
Honda
OIL SEAL (28X40X8)91261-ZG8-003
Required: 1
OIL SEAL (28X40X8)
N
$7.22
You save $1.28
027
Honda
BOLT, STUD (8X22)92900-08022-1E
Required: 4
BOLT, STUD (8X22)
N
$2.41
You save $0.43
028
Honda
PIN, DOWEL (12X20)94301-12200
Required: 2
PIN, DOWEL (12X20)
N
$2.55
You save $0.45
029
Honda
BOLT, FLANGE (6X30)95801-06030-08
Required: 2
BOLT, FLANGE (6X30)
N
$1.82
You save $0.32
030
Honda
S/PLG (BPR5ES-11)98079-55145
Required: 2
SPARK PLUG (BPR5ES-11)
N
$2.74
You save $0.48
030
Honda
S/PLG (W16EPR-U11)98079-55155
Required: 2
SPARK PLUG (W16EPR-U11)
N
$3.08
You save $0.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
