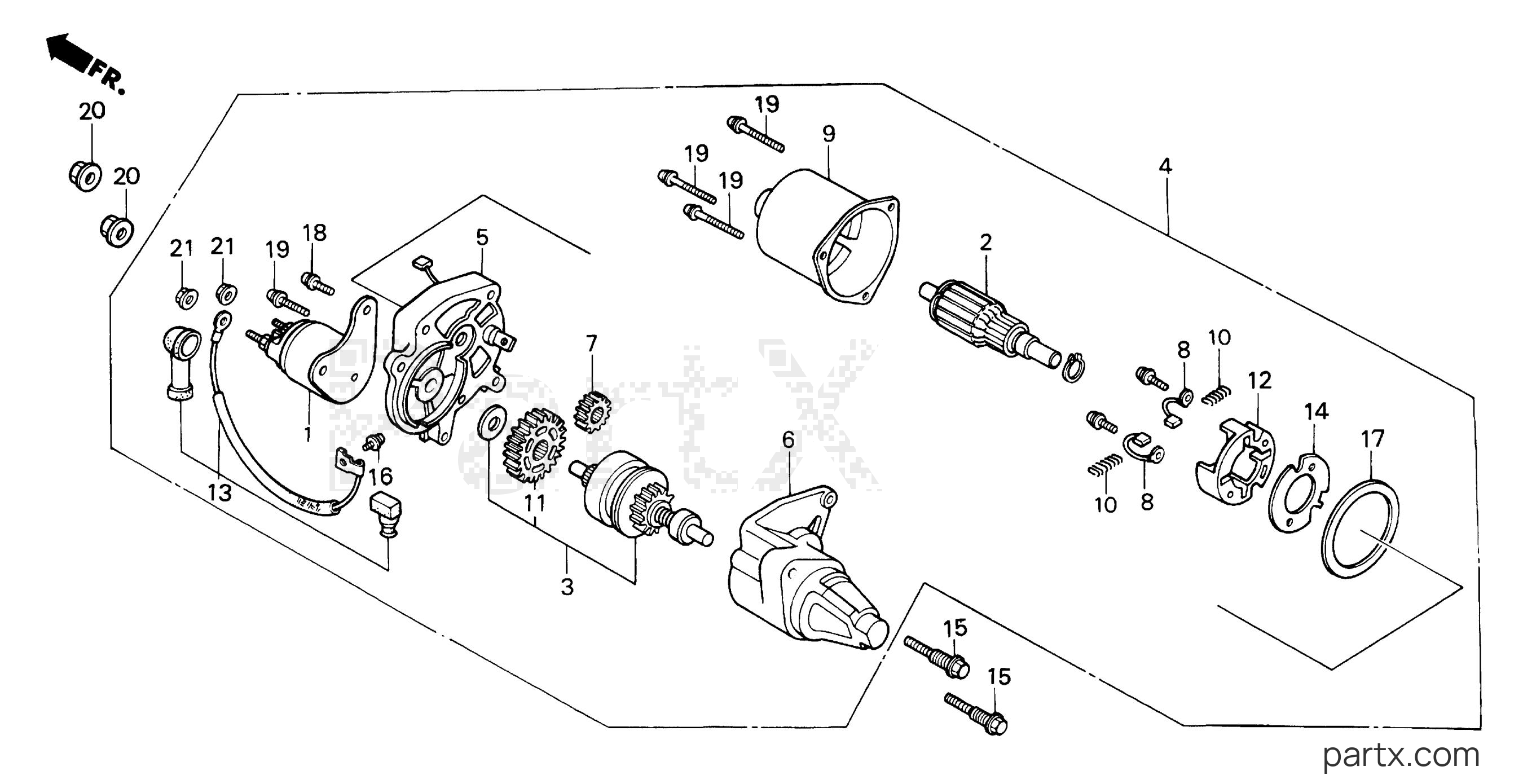

All Years Multi Purpose Tractor H - H5013 A2/C STARTER MOTOR diagram
001
Honda
CONTACTOR ASSY.31204-ZA0-003
Required: 1
CONTACTOR ASSY.
N
$119.80
You save $21.14
$76.16
You save $13.44
003
Honda
CLUTCH, OVERRUNNING31207-ZE3-003
Required: 1
CLUTCH, OVERRUNNING
N
$282.95
You save $50.35
004
Required: 1
STARTER MOTOR ASSY. (NOT AVAILABLE)
N
Price unavailable
005
Honda
BRACKET, CENTER31211-ZE2-003
Required: 1
BRACKET, CENTER
N
$91.56
You save $16.16
006
Required: 1
BRACKET, FR. (NOT AVAILABLE)
N
Price unavailable
007
Honda
GEAR, DRIVE PINION31213-ZE2-003
Required: 1
GEAR, DRIVE PINION
N
$46.92
You save $8.28
$10.45
You save $1.85
$40.48
You save $7.14
010
Honda
SPRING, BRUSH RETURN31219-ZE2-003
Required: 4
SPRING, BRUSH RETURN
N
$3.55
You save $0.63
011
Honda
GEAR, REDUCTION31222-ZE3-791
Required: 1
GEAR, REDUCTION
N
$30.16
You save $5.32
012
Honda
HOLDER, BRUSH31231-ZE2-003
Required: 1
HOLDER, BRUSH
N
$12.70
You save $2.24
013
Honda
WIRE, WATER COVER31232-ZE2-013
Required: 1
WIRE, WATER COVER
N
$4.86
You save $0.86
$11.12
You save $1.96
015
Required: 2
BOLT, STARTER MOTOR (NOT AVAILABLE)
N
Price unavailable
016
Honda
SCREW-WASHER (4X6)90110-ZE2-003
Required: 1
SCREW-WASHER (4X6)
N
$2.48
You save $0.44
$6.46
You save $1.14
018
Honda
SCREW-WASHER (5X14)93892-05014-08
Required: 2
SCREW-WASHER (5X14)
N
$1.14
You save $0.20
019
Honda
SCREW-WASHER (5X32)93892-05032-08
Required: 4
SCREW-WASHER (5X32)
N
$1.53
You save $0.27
020
Honda
NUT, FLANGE (8MM)94050-08080
Required: 2
NUT, FLANGE (8MM)
N
In stock
5+ in stock
$1.00
You save $0.18
021
Honda
NUT-WASHER (6MM)94070-06080
Required: 2
NUT-WASHER (6MM)
N
$1.51
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
