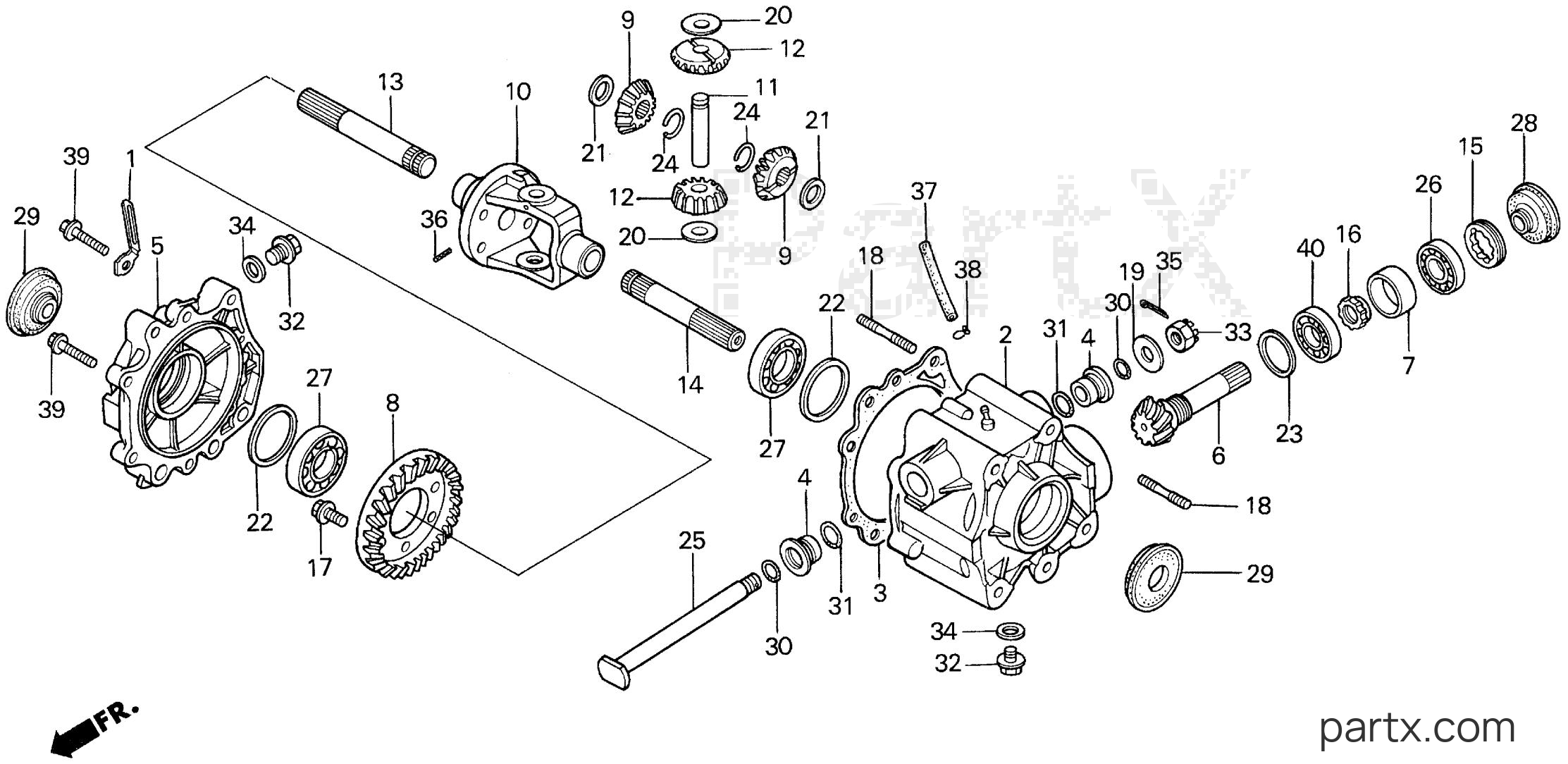

All Years Multi Purpose Tractor H - H5013 AC4/A FRONT DIFFERENTIAL GEAR diagram
001
Required: 1
CLIP A, WIRE HARNESS (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
HOUSING, FR. DIFFERENTIAL (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
GASKET, FR. DIFFERENTIAL HOUSING (NOT AVAILABLE)
N
Price unavailable
004
Required: 2
BUSH, CENTER PIN (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
COVER, FR. DIFFERENTIAL (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
SHAFT, FR. DIFFERENTIAL INPUT (NOT AVAILABLE)
N
Price unavailable
007
Honda
COLLAR, FR.41213-752-000
Required: 1
COLLAR, FR. DIFFERENTIAL INPUTSHAFT
N
$11.75
You save $2.07
008
Honda
GEAR, FR.41216-752-000
Required: 1
GEAR, FR. DIFFERENTIAL DRIVEN (NOT AVAILABLE)
N
$142.36
You save $25.12
009
Honda
GEAR (16T)41241-752-000
Required: 2
GEAR, DIFFERENTIAL (16T) (NOT AVAILABLE)
N
$61.59
You save $10.87
010
Required: 1
CASE, FR. DIFFERENTIAL (NOT AVAILABLE)
N
Price unavailable
011
Honda
SHAFT41321-750-000
Required: 1
SHAFT, DIFFERENTIAL PINION (NOT AVAILABLE)
N
$18.80
You save $3.32
012
Honda
PINION (16T)41341-750-000
Required: 2
PINION, DIFFERENTIAL (16T) (NOT AVAILABLE)
N
$69.02
You save $12.18
013
Required: 1
SHAFT, R. FR. DRIVE (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
DRIVESHAFT, L. FR. (NOT AVAILABLE)
N
Price unavailable
015
Honda
NUT, LOCK (55MM)44331-752-000
Required: 1
NUT, LOCK (55MM) (NOT AVAILABLE)
N
$22.39
You save $3.95
016
Honda
NUT, LOCK (25MM)44332-752-000
Required: 1
NUT, LOCK (25MM) (NOT AVAILABLE)
N
$12.39
You save $2.19
017
Honda
BOLT, HEX. (10MM)90011-689-000
Required: 6
BOLT, HEX. (10MM)
N
$10.29
You save $1.81
018
Honda
BOLT, STUD (10X45)90048-752-000
Required: 4
BOLT, STUD (10X45)
N
$7.07
You save $1.25
019
Honda
WASHER (14X30X2.5)90454-752-000
Required: 1
WASHER, THRUST (14X30X2.5)
N
$7.12
You save $1.26
020
Honda
WASHER A90521-750-000
Required: 2
WASHER A, DIFFERENTIAL PINION (16.2X30X0.7)
N
$4.30
You save $0.76
020
Required: 2
WASHER B, DIFFERENTIAL PINION (16.2X30X0.8) (NOT AVAILABLE)
N
Price unavailable
020
Required: 2
WASHER C, DIFFERENTIAL PINION (16.2X30X0.9) (NOT AVAILABLE)
N
Price unavailable
020
Honda
WASHER D90524-750-000
Required: 2
WASHER D, DIFFERENTIAL PINION (16.2X30X1.0)
N
$4.30
You save $0.76
021
Honda
WASHER90525-752-000
Required: 2
WASHER, DIFFERENTIAL GEAR
N
$6.48
You save $1.14
022
Honda
SHIM (54X64.5X1.8)90530-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.8) (L)
N
$18.38
You save $3.24
022
Honda
SHIM (54X64.5X1.85)90531-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.85) (M)
N
$18.38
You save $3.24
022
Honda
SHIM (54X64.5X1.9)90532-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.9) (N)
N
$18.43
You save $3.25
022
Honda
SHIM (54X64.5X1.95)90533-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.95) (O)
N
$18.38
You save $3.24
022
Honda
SHIM (54X64.5X2.0)90534-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.0) (P)
N
$18.43
You save $3.25
022
Honda
SHIM (54X64.5X2.05)90535-752-000
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.05) (Q)
N
$18.38
You save $3.24
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.25) (U)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.25) (A)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.3) (B)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.35) (C)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.4) (D)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.45) (E)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.5) (F) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.55) (G) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.6) (H) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.65) (I) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.7) (J) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.75) (K) (NOT AVAILABLE)
N
Price unavailable
023
Honda
SHIM, PINION90581-752-000
Required: 1
SHIM, PINION (45.5X51.5X1.35) (A)
N
$14.40
You save $2.54
023
Required: 1
SHIM, PINION (45.5X51.5X1.4) (B) (NOT AVAILABLE)
N
Price unavailable
023
Honda
SHIM, PINION90583-752-000
Required: 1
SHIM, PINION (45.5X51.5X1.45) (C)
N
$14.40
You save $2.54
023
Honda
SHIM (45.5X51.5X1.5)90584-752-000
Required: 1
SHIM, PINION (45.5X51.5X1.5) (D)
N
$11.46
You save $2.02
023
Required: 1
SHIM, PINION (45.5X51.5X1.55) (E) (NOT AVAILABLE)
N
Price unavailable
023
Required: 1
SHIM, PINION (45.5X51.5X1.6) (F) (NOT AVAILABLE)
N
Price unavailable
023
Required: 1
SHIM, PINION (45.5X51.5X1.65) (G) (NOT AVAILABLE)
N
Price unavailable
023
Honda
SHIM, PINION90598-752-000
Required: 1
SHIM, PINION (45.5X51.5X1.25) (R)
N
$14.40
You save $2.54
023
Honda
SHIM (45.5X51.5X1.3)90599-752-000
Required: 1
SHIM, PINION (45.5X51.5X1.3) (S)
N
$14.40
You save $2.54
024
Required: 2
CIRCLIP (OUTER) (22MM) (NOT AVAILABLE)
N
Price unavailable
025
Honda
PIN, CENTER90702-752-000
Required: 1
PIN, CENTER
N
$38.83
You save $6.85
026
Required: 1
BEARING, RADIAL BALL (6304) (FUJIKOSHI)
N
Price unavailable
027
Honda
BEARING (62/32)91008-752-003
Required: 2
BEARING, RADIAL BALL (62/32)
N
$43.16
You save $7.62
028
Required: 1
SEAL, WATER (33X58X12) (NOT AVAILABLE)
N
Price unavailable
029
Required: 2
OIL SEAL (22X52X11.5) (NOT AVAILABLE)
N
Price unavailable
030
Honda
O-RING (17.8X2.4)91256-383-721
Required: 2
O-RING (17.8X2.4) (SHOWA)
N
$2.38
You save $0.42
031
Honda
O-RING (23.5X2.6)91305-425-003
Required: 2
O-RING (23.5X2.6)
N
$3.82
You save $0.68
032
Honda
BOLT, DRAIN (14MM)92800-14000
Required: 2
BOLT, DRAIN PLUG (14MM)
N
$4.56
You save $0.80
033
Required: 1
NUT, CASTLE (14MM) (NOT AVAILABLE)
N
Price unavailable
034
Honda
WASHER, DRAIN (14MM)94109-14000
Required: 2
WASHER, DRAIN PLUG (14MM)
N
$0.66
You save $0.12
035
Honda
PIN, SPLIT (3.0X25)94201-30250
Required: 1
PIN, SPLIT (3.0X25)
N
$1.07
You save $0.19
035
Honda
PIN, SPLIT (3.0X45)94201-30450
Required: 1
PIN, SPLIT (3.0X45)
N
$1.07
You save $0.19
036
Honda
PIN, SPRING (4X32)94305-40320
Required: 1
PIN, SPRING (4X32) (NOT AVAILABLE)
N
$2.11
You save $0.37
037
Honda
BULK HOSE (4.5X3000)95001-45003-60M
Required: 1
BULK HOSE, FUEL (4.5X3000) OEM CUT SIZE: (4.5X200)
N
$44.00
You save $7.76
038
Honda
CLIP, TUBE (B8)95002-02080
Required: 1
CLIP, TUBE (B8)
N
In stock
Only 3 remaining
$1.87
You save $0.33
039
Honda
BOLT, FLANGE (8X32)95801-08032-08
Required: 6
BOLT, FLANGE (8X32)
N
$2.36
You save $0.42
-50%
040
Honda
BEARING (6205)96100-62050-00
Required: 1
BEARING, RADIAL BALL (6205)
N
In stock
Only 2 remaining
$12.06
You save $12.06
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
