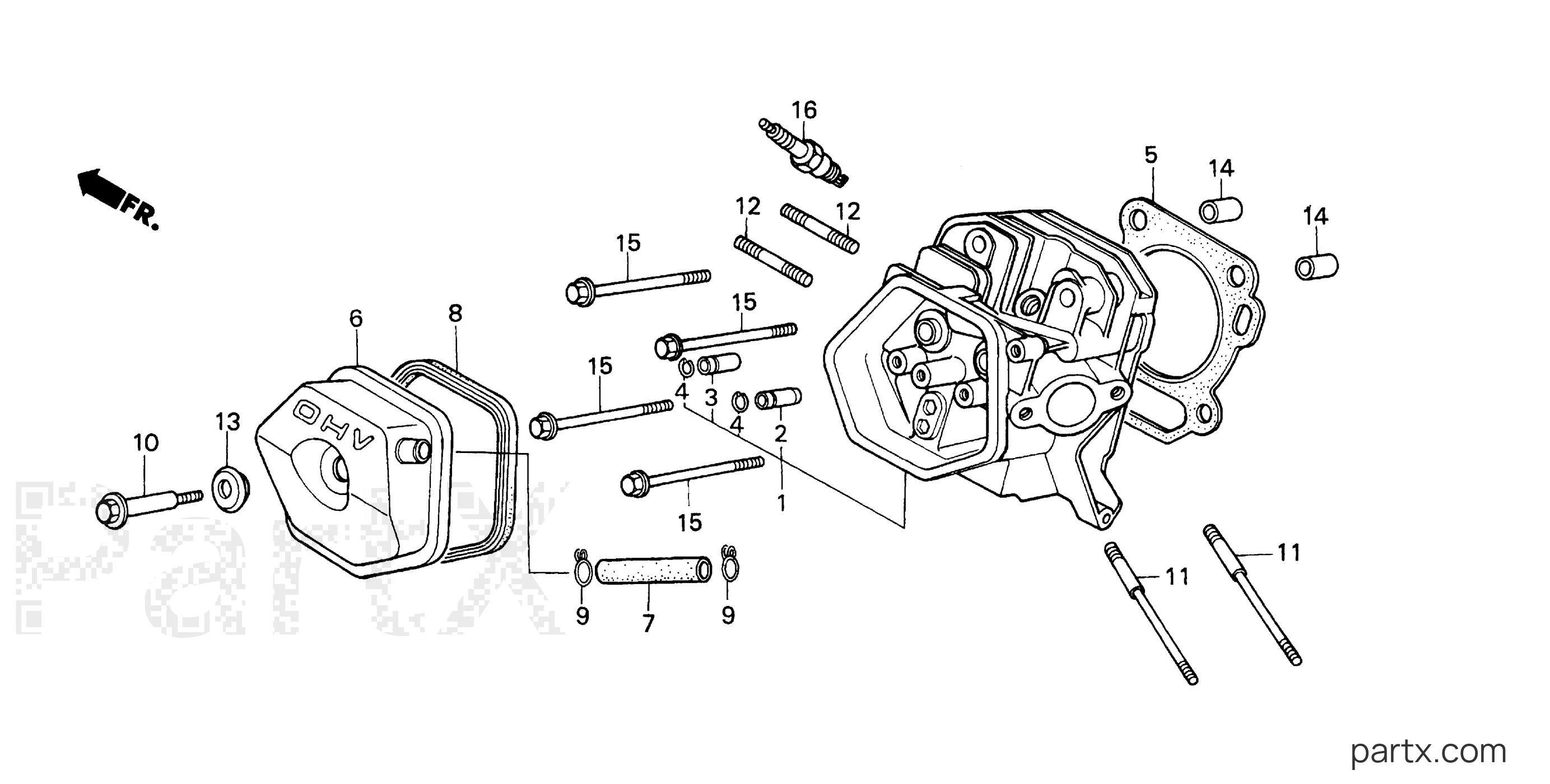

All Years Multi Purpose Tractor H - H5013 AC2/B CYLINDER HEAD diagram
001
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GUIDE, VALVE (OVER SIZE)
N
Price unavailable
003
Required: 1
GUIDE, EX. VALVE (OVER SIZE)
N
Price unavailable
-50%
004
Honda
CLIP, VALVE GUIDE12216-ZE2-300
Required: 2
CLIP, VALVE GUIDE
N
In stock
Only 1 remaining
$1.15
You save $1.15
005
Honda
GASKET, CYL HD12251-ZF6-W01
Required: 1
GASKET, CYLINDER HEAD
N
$16.80
You save $2.96
006
Required: 1
COVER, HEAD (BREATHER TUBE JOINT)
N
Price unavailable
007
Required: 1
TUBE, BREATHER (NOT AVAILABLE)
N
Price unavailable
008
Honda
GASKET, HEAD COVER12391-ZE2-020
Required: 1
GASKET, HEAD COVER
N
$9.83
You save $1.73
009
Honda
CLIP, BREATHER TUBE15772-292-010
Required: 2
CLIP, BREATHER TUBE
N
$3.20
You save $0.56
010
Honda
BOLT, HEAD COVER90014-ZE2-000
Required: 1
BOLT, HEAD COVER
N
$5.54
You save $0.98
011
Honda
BOLT, STUD (8X131.5)90042-ZE8-000
Required: 2
BOLT, STUD (8X131.5)
N
$7.38
You save $1.30
012
Required: 2
BOLT, STUD (8X25) (NOT AVAILABLE)
N
Price unavailable
013
Honda
WASHER, HEAD COVER90441-ZE2-010
Required: 1
WASHER, HEAD COVER
N
$5.32
You save $0.94
014
Honda
PIN, DOWEL (12X20)94301-12200
Required: 2
PIN, DOWEL (12X20)
N
$2.55
You save $0.45
015
Honda
BOLT, FLANGE (10X80)95701-10080-00
Required: 4
BOLT, FLANGE (10X80)
N
$3.40
You save $0.60
016
Honda
S/PLG (BPR5ES-11)98079-55145
Required: 1
SPARK PLUG (BPR5ES-11)
N
$2.74
You save $0.48
016
Honda
S/PLG (W16EPR-U11)98079-55155
Required: 1
SPARK PLUG (W16EPR-U11)
N
$3.08
You save $0.54
016
Honda
S/PLG (BPR6ES-11)98079-56145
Required: 1
SPARK PLUG (BPR6ES-11)
N
$3.16
You save $0.56
016
Honda
S/PLG (W20EPR-U11)98079-56155
Required: 1
SPARK PLUG (W20EPR-U11)
N
$2.89
You save $0.51
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
