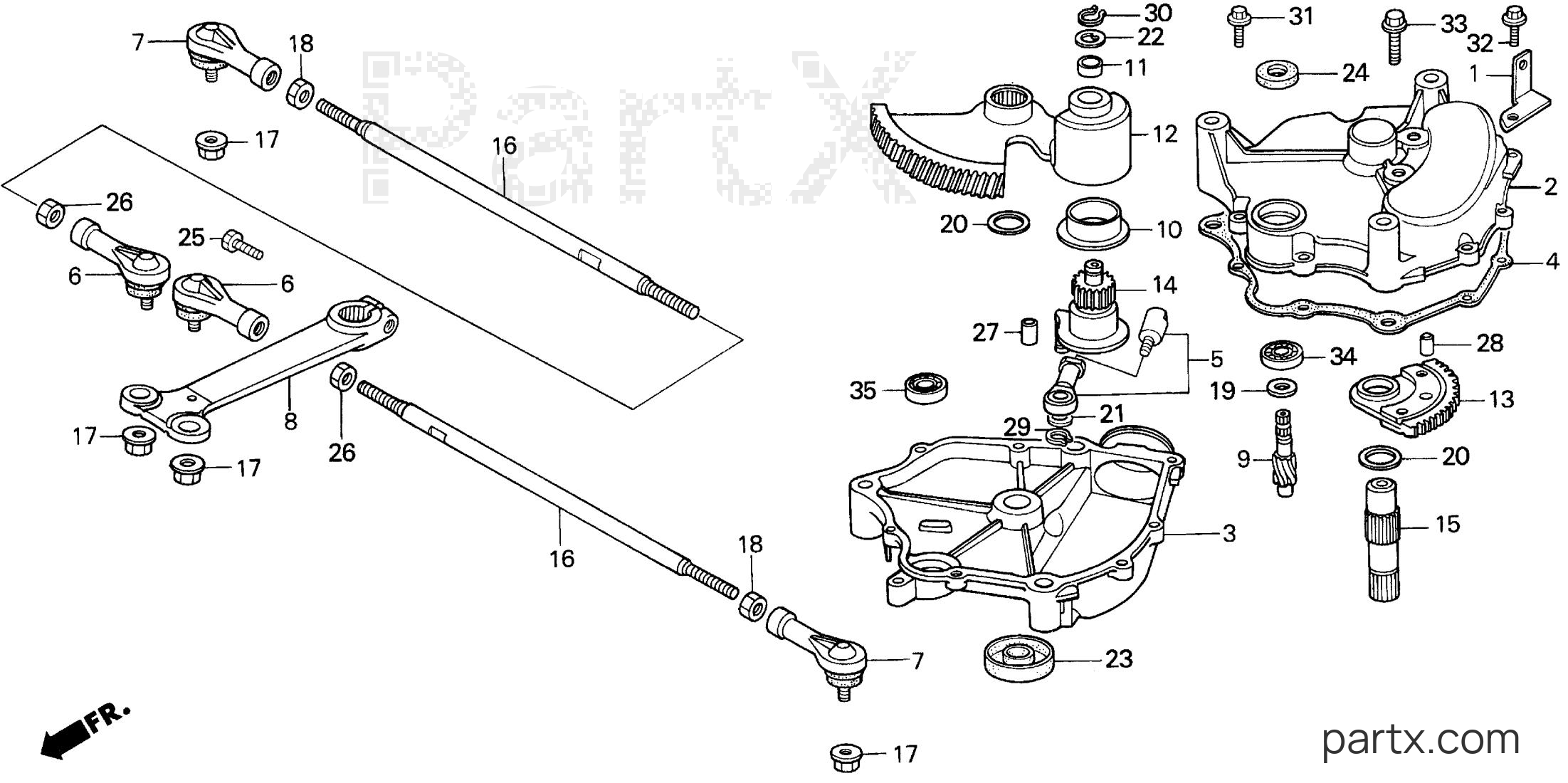

All Years Multi Purpose Tractor H - H5013 A4/B STEERING GEAR diagram
001
Required: 1
BRACKET, HARNESS CLIP (A) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
CASE, STEERING GEAR (UPPER) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
CASE, STEERING GEAR (LOWER) (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
GASKET, STEERING CASE (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
JOINT, ROD END (NOT AVAILABLE)
N
Price unavailable
006
Required: 2
JOINT, R. BALL (ER10) (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
JOINT, L. BALL (ER10)
N
Price unavailable
008
Required: 1
ARM, PITMAN (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
PINION, STEERING (NOT AVAILABLE)
N
Price unavailable
010
Honda
BUSH, PINION HOLDER53423-752-003
Required: 1
BUSH, PINION HOLDER (A)
N
$14.09
You save $2.49
011
Required: 1
BUSH, PINION HOLDER (B) (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
GEAR, STEERING (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
GEAR, SUN (67T) (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
GEAR, PLANETARY (19T) (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
SHAFT, STEERING SECTOR (NOT AVAILABLE)
N
Price unavailable
016
Required: 2
TIE ROD, FR. (NOT AVAILABLE)
N
Price unavailable
017
Honda
NUT (10MM)90212-671-005
Required: 4
NUT, SELF-LOCK (10MM)
N
$0.94
You save $0.17
018
Honda
NUT, HEX. (10MM)90303-752-000
Required: 2
NUT, HEX. (10MM)
N
$2.82
You save $0.50
019
Required: 1
WASHER, THRUST (15MM) (NOT AVAILABLE)
N
Price unavailable
020
Honda
WASHER (25MM)90421-961-000
Required: 2
WASHER, THRUST (25MM)
N
$6.38
You save $1.13
021
Honda
WASHER (12MM)90459-107-000
Required: 1
WASHER, THRUST (12MM)
N
$1.48
You save $0.26
022
Required: 1
WASHER (16.5X26X2) (NOT AVAILABLE)
N
Price unavailable
023
Honda
OIL SEAL (25X38X7)91201-ZG9-U71
Required: 1
OIL SEAL (25X38X7)
N
$4.01
You save $0.71
023
Required: 1
OIL SEAL (25X38X7) (ARAI)
N
Price unavailable
024
Honda
OIL SEAL (15X28X7)91272-733-931
Required: 1
OIL SEAL (15X28X7)
N
In stock
Only 2 remaining
$6.74
You save $1.68
025
Required: 1
BOLT, HEX. (10X40) (NOT AVAILABLE)
N
Price unavailable
026
Honda
NUT, HEX. (10MM)94001-10080-0S
Required: 2
NUT, HEX. (10MM)
N
$1.50
You save $0.26
027
Honda
PIN, DOWEL (14X20)94301-14200
Required: 2
PIN, DOWEL (14X20)
N
$2.55
You save $0.45
028
Honda
PIN, DOWEL (10X16)94303-10160
Required: 1
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
029
Honda
CIRCLIP (12MM)94510-12000
Required: 1
CIRCLIP, OUTER (12MM)
N
$1.94
You save $0.34
030
Honda
CIRCLIP (16MM)94510-16000
Required: 1
CIRCLIP, OUTER (16MM)
N
$0.82
You save $0.14
031
Honda
BOLT, FLANGE (6X25)95701-06025-08
Required: 6
BOLT, FLANGE (6X25)
N
$1.87
You save $0.33
032
Honda
BOLT, FLANGE (6X28)95701-06028-07
Required: 1
BOLT, FLANGE (6X28)
N
$1.17
You save $0.21
033
Honda
BOLT, FLANGE (10X30)95701-10030-08
Required: 2
BOLT, FLANGE (10X30)
N
$2.38
You save $0.42
034
Honda
BEARING (6002)96100-60020-10
Required: 1
BEARING, RADIAL BALL (6002)
N
$12.87
You save $2.27
035
Required: 1
BEARING, RADIAL BALL (6201) (NOT AVAILABLE)
N
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
