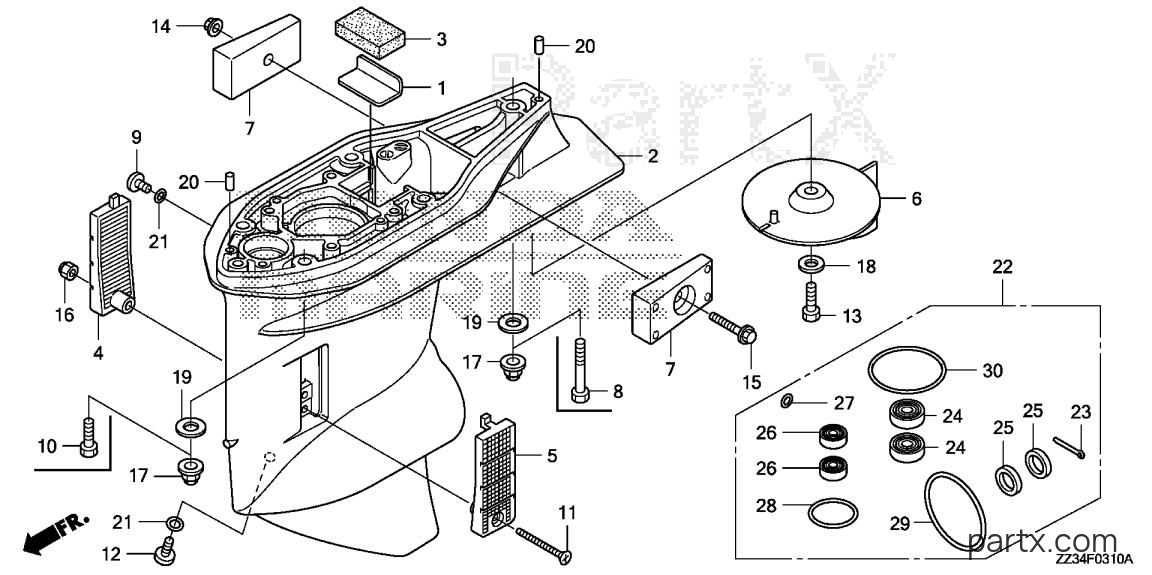

Pre 1997 Marine Engine BF - BF60A LRTA GEAR CASE diagram
001
Honda
PLATE19286-ZZ3-000
Required: 1
PLATE, RUBBER SETTING
N
$7.19
You save $1.27
002
Honda
CASE, GEAR *NH282MU*41101-ZZ3-000ZB
Required: 1
CASE, GEAR *NH282MU*(OYSTER SILVER METALLIC-U)
N
$885.33
You save $156.24
003
Honda
GROMMET, GEAR CASE41102-ZZ3-000
Required: 1
GROMMET, GEAR CASE
N
$7.19
You save $1.27
004
Honda
SCREEN, R. WATER41104-ZZ3-000
Required: 1
SCREEN, R. WATER
N
$8.72
You save $1.54
005
Honda
SCREEN, L. WATER41105-ZZ3-000
Required: 1
SCREEN, L. WATER (NOT AVAILABLE)
N
$8.09
You save $1.43
006
Honda
TAB, TRIM *NH282MU*41107-ZZ5-000ZA
Required: 1
TAB, TRIM *NH282MU*(OYSTER SILVER METALLIC-U)
N
$37.89
You save $6.69
007
Honda
METAL, ANODE41109-ZW1-B00
Required: 2
METAL, ANODE
N
$20.48
You save $3.62
008
Honda
BOLT, HEX. (10X60)90015-ZY3-000
Required: 1
BOLT, HEX. (10X60)
N
$9.52
You save $1.68
009
Honda
BOLT, OIL CHECK90101-ZW9-003
Required: 1
BOLT, OIL CHECK
N
$2.98
You save $0.74
010
Honda
BOLT, HEX. (10X32)90103-ZY3-000
Required: 4
BOLT, HEX. (10X32)
N
$6.09
You save $1.07
011
Honda
SCREW, FLAT (5X37)90103-ZZ3-000
Required: 1
SCREW, FLAT (5X37)
N
$2.18
You save $0.38
012
Honda
BOLT, DRAIN PLUG90120-ZY3-000
Required: 1
BOLT, DRAIN PLUG
N
$16.22
You save $2.86
013
Honda
BOLT, HEX. (8X20)90126-ZV5-000
Required: 1
BOLT, HEX. (8X20)
N
$4.59
You save $0.81
014
Honda
NUT, SELF-LOCK (6MM)90205-ZY1-000
Required: 1
NUT, SELF-LOCK (6MM)
N
$5.39
You save $0.95
015
Honda
BOLT, FLANGE (6X30)90206-HW1-671
Required: 1
BOLT, FLANGE (6X30)
N
$3.30
You save $0.58
016
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 1
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
018
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 1
WASHER, PLAIN (8MM)
N
$2.50
You save $0.44
019
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 5
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
020
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 2
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
021
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
022
Honda
CASE KIT, GEAR06125-ZZ3-000
Required: 1
CASE KIT, GEAR
N
$28.63
You save $5.05
023
Honda
PIN, SPLIT (4.0)90758-ZV5-000
Required: 1
PIN, SPLIT (4.0)
N
$2.55
You save $0.45
024
Honda
SEAL (17X36X6)91251-ZZ3-003
Required: 2
SEAL, WATER (17X36X6)
N
$6.00
You save $1.06
-50%
025
Honda
SEAL (22X35X7)91252-ZW4-003
Required: 2
SEAL, WATER (22X35X7)
N
In stock
Only 2 remaining
$3.95
You save $3.95
026
Honda
SEAL (12X21X6)91254-ZY3-003
Required: 2
SEAL, WATER (12X21X6)
N
$4.82
You save $1.20
027
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
028
Honda
O-RING (33.7X3.5)91351-ZZ3-000
Required: 1
O-RING (33.7X3.5)
N
$3.20
You save $0.56
029
Honda
O-RING (76.5X3)91352-ZZ3-000
Required: 1
O-RING (76.5X3)
N
$5.02
You save $0.88
030
Honda
O-RING (58.5X3.5)91359-MB0-000
Required: 1
O-RING (58.5X3.5)
N
$5.63
You save $1.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
