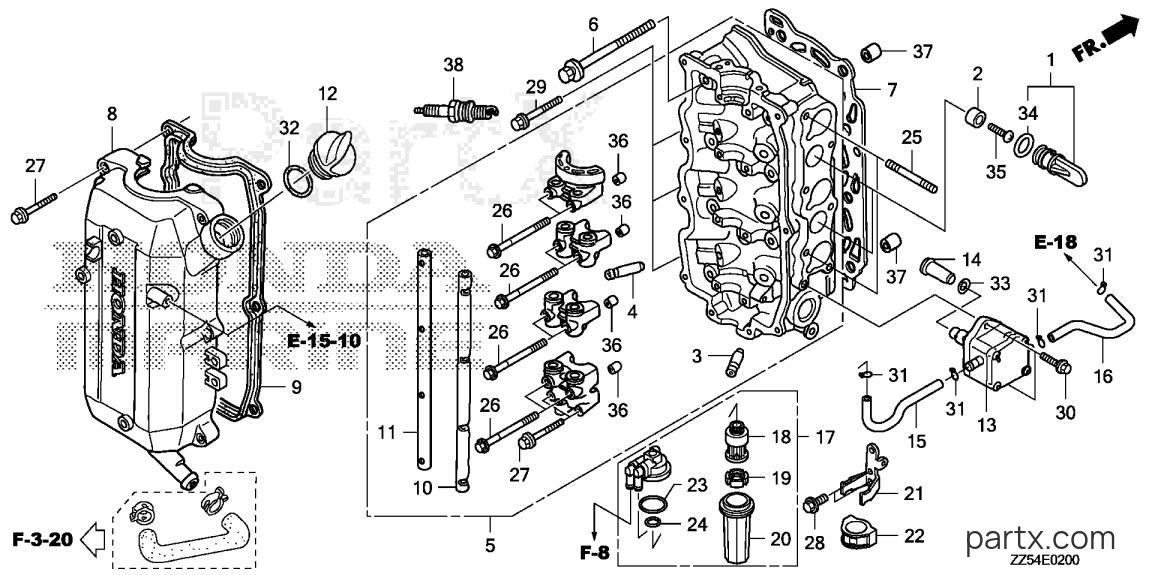

Pre 1997 Marine Engine BF - BF40D LHA CYLINDER HEAD diagram
001
Required: 2
CAP ASSY., ANODE METAL
N
Price unavailable
001
Honda
CAP, ANODE METAL12150-ZZ5-020
Required: 2
CAP ASSY., ANODE METAL
N
$4.83
You save $0.85
002
Honda
METAL KIT, ANODE06120-ZZ5-010
Required: 2
METAL KIT, ANODE
N
$9.88
You save $1.74
003
Honda
GUIDE, VALVE (OS)12204-ZZ5-305
Required: 3
GUIDE, VALVE (OVER SIZE)
N
$10.18
You save $1.80
004
Honda
GUIDE, VALVE (OS)12205-ZV5-325
Required: 3
GUIDE, VALVE (OVER SIZE)
N
$14.16
You save $2.50
005
Honda
CYL HEAD BARE *NH8*12206-ZZ5-M01ZA
Required: 1
CYLINDER HEAD ASSY. BARE *NH8*(DARK GRAY)
N
$740.08
You save $130.60
006
Honda
BOLT-WASHER (10X85)12228-ZV5-004
Required: 8
BOLT-WASHER (10X85)
N
$9.06
You save $1.60
007
Honda
GASKET, CYL HD12251-ZW4-H01
Required: 1
GASKET, CYLINDER HEAD
N
$39.34
You save $6.94
008
Honda
COVER, CYLINDER HEAD12310-ZZ5-M01
Required: 1
COVER, CYLINDER HEAD
N
$140.67
You save $24.83
009
Honda
GASKET, HEAD COVER12391-ZV5-010
Required: 1
GASKET, HEAD COVER
N
$21.84
You save $3.86
010
Honda
SHAFT14631-ZV5-000
Required: 1
SHAFT, IN. ROCKER ARM
N
$46.63
You save $8.23
011
Honda
SHAFT14632-ZV5-000
Required: 1
SHAFT, EX. ROCKER ARM
N
$46.63
You save $8.23
012
Honda
CAP, OIL15611-921-000
Required: 1
CAP, OIL (YELLOW)
N
$11.46
You save $2.02
013
Honda
PUMP ASSY., FUEL16700-ZZ5-003
Required: 1
PUMP ASSY., FUEL (MSDS)
N
$139.38
You save $24.60
014
Honda
LIFTER, FUEL PUMP16717-ZZ5-000
Required: 1
LIFTER, FUEL PUMP
N
$11.17
You save $1.97
015
Honda
TUBE B, FUEL16861-ZZ5-000
Required: 1
TUBE B, FUEL (NOT AVAILABLE)
N
$5.22
You save $0.92
015
Honda
TUBE B, FUEL16861-ZZ5-A00
Required: 1
TUBE B, FUEL (FKM)
N
$12.09
You save $2.13
016
Honda
TUBE C, FUEL16871-ZZ5-000
Required: 1
TUBE C, FUEL
N
$6.49
You save $1.15
016
Honda
TUBE C, FUEL16871-ZZ5-A00
Required: 1
TUBE C, FUEL (FKM)
N
$12.61
You save $2.23
017
Honda
FILTER ASSY., FUEL16900-ZZ5-003
Required: 1
FILTER ASSY., FUEL
N
$70.06
You save $12.36
$14.82
You save $2.62
$4.18
You save $0.74
$10.25
You save $1.81
021
Honda
STAY, FUEL STRAINER16914-ZZ5-010
Required: 1
STAY, FUEL STRAINER
N
$14.72
You save $2.60
022
Honda
SUSPENSION, STRAINER16915-ZZ5-000
Required: 1
SUSPENSION, STRAINER
N
$7.62
You save $1.34
$2.69
You save $0.47
$3.28
You save $0.58
025
Required: 2
BOLT, STUD (6X28)
N
Price unavailable
025
Honda
BOLT, STUD (6X28)90006-ZZ5-M01
Required: 2
BOLT, STUD (6X28)
N
$1.55
You save $0.27
026
Honda
BOLT, FLANGE (6X70)90018-ZV5-000
Required: 8
BOLT, FLANGE (6X70)
N
$2.94
You save $0.52
027
Honda
BOLT, FLANGE (6X35)90019-ZW9-000
Required: 9
BOLT, FLANGE (6X35)
N
$2.55
You save $0.45
028
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 2
BOLT, FLANGE (6X14)
N
$1.29
You save $0.23
029
Honda
BOLT, FLANGE (8X40)90055-ZZ5-M01
Required: 3
BOLT, FLANGE (8X40)
N
$2.11
You save $0.37
030
Honda
BOLT, FLANGE (6X20)90068-ZZ5-M01
Required: 2
BOLT, FLANGE (6X20)
N
$1.48
You save $0.26
031
Honda
CLIP, TUBE (B12)90604-ZV0-000
Required: 4
CLIP, TUBE (B12)
N
$1.55
You save $0.27
032
Honda
O-RING (26X2.7)91301-805-000
Required: 1
O-RING (26X2.7)
N
$4.13
You save $0.73
-50%
033
Honda
O-RING (20.8X2.4)91351-MG7-003
Required: 1
O-RING (20.8X2.4)
N
In stock
Only 2 remaining
$1.66
You save $1.66
034
Honda
O-RING (19.8X2.4)91310-PH7-000
Required: 2
O-RING (19.8X2.4)
N
$3.86
You save $0.68
034
Honda
O-RING (19.8X2.4)91310-ZZ5-003
Required: 2
O-RING (19.8X2.4)
N
$2.48
You save $0.44
035
Honda
SCREW, PAN (5X20)93500-05020-4J
Required: 2
SCREW, PAN (5X20)
N
$0.97
You save $0.17
036
Honda
PIN, DOWEL (8X14)94301-08140
Required: 8
PIN, DOWEL (8X14)
N
$2.33
You save $0.41
037
Honda
PIN A, DOWEL (12X16)94301-12160
Required: 2
PIN A, DOWEL (12X16)
N
$2.55
You save $0.45
038
Honda
S/PLG (X22ESR-UB)98069-57756
Required: 3
SPARK PLUG (X22ESR-UB)
N
$6.27
You save $1.11
038
Honda
SPARK PLUG (DR7EB)98069-5777P
Required: 3
SPARK PLUG (DR7EB)
N
In stock
5+ in stock
$4.83
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
