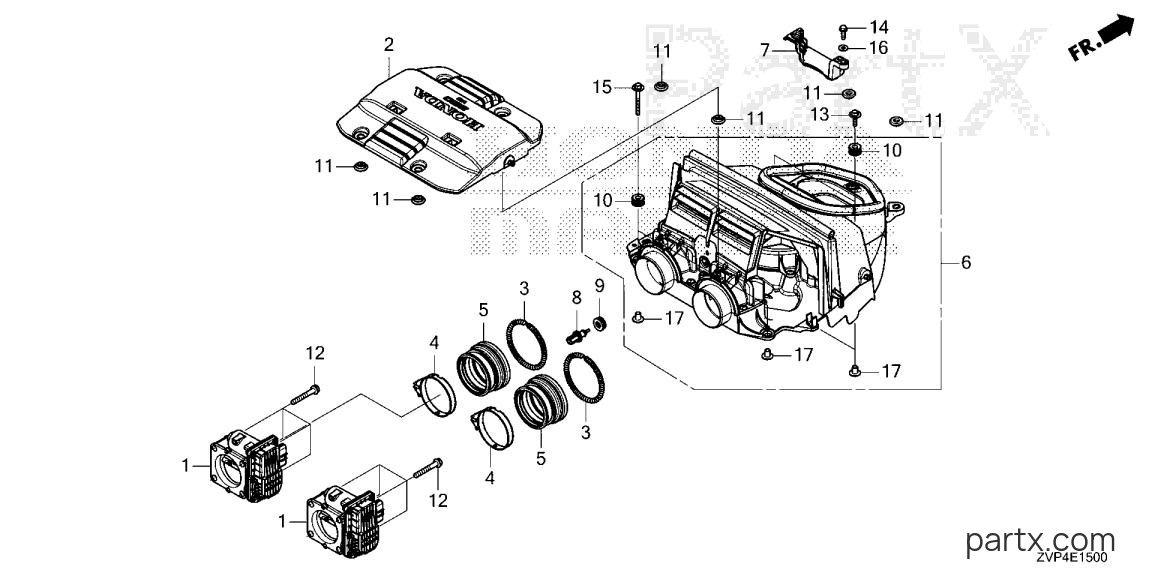

Pre 1997 Marine Engine BF - BF350A UCDA THROTTLE BODY diagram
001
Honda
THROTTLE BODY16400-ZVT-003
Required: 2
THROTTLE BODY, ELECTRONIC CONTROL (GMK3A)
N
$871.08
You save $153.72
002
Honda
GUARD, THROTTLE BODY16406-ZVP-000
Required: 1
GUARD, THROTTLE BODY
N
$30.60
You save $5.40
003
Honda
SPRING17249-PY3-000
Required: 2
SPRING, AIR FLOW TUBE
N
$10.18
You save $1.80
004
Honda
BAND, AIR FLOW17315-ZY9-M01
Required: 2
BAND, AIR FLOW
N
$13.38
You save $2.36
005
Honda
GROMMET, MUFFLER17374-ZY6-000
Required: 2
GROMMET, MUFFLER
N
$26.32
You save $4.64
006
Honda
COVER, COOLING FAN19540-ZVP-000
Required: 1
COVER ASSY., COOLING FAN
N
$223.89
You save $39.51
007
Honda
GUARD, FAN COVER19552-ZVP-000
Required: 1
GUARD, FAN COVER
N
$17.63
You save $3.11
008
Honda
SENSOR, AIR TEMP37880-RE1-Z01
Required: 1
SENSOR ASSY., AIR TEMPERATURE
N
$40.09
You save $7.07
009
Honda
GROMMET, TA SENSOR37881-P2A-000
Required: 1
GROMMET, TA SENSOR
N
$5.56
You save $0.98
010
Honda
GROM, CASE (LOWER)40102-ZV5-000
Required: 4
GROMMET, CASE (LOWER)
N
$2.99
You save $0.53
011
Honda
GROMMET, SIDE COVER83551-376-000
Required: 6
GROMMET, SIDE COVER
N
$3.38
You save $0.60
012
Honda
BOLT, FLANGE (8X55)90010-ZVL-010
Required: 8
BOLT, FLANGE (8X55)
N
$1.48
You save $0.26
013
Honda
BOLT-WASHER (6X25)90013-ZZ5-M01
Required: 2
BOLT-WASHER (6X25)
N
$2.77
You save $0.49
014
Honda
BOLT, FLANGE (6X20)90068-ZZ5-M01
Required: 1
BOLT, FLANGE (6X20)
N
$1.48
You save $0.26
015
Honda
BOLT-WASHER (6X60)90072-ZVL-010
Required: 2
BOLT-WASHER (6X60)
N
$5.20
You save $0.92
016
Honda
WASHER, PLAIN (6MM)90503-ZZ5-M01
Required: 1
WASHER, PLAIN (6MM)
N
$1.68
You save $0.30
017
Honda
COLLAR (12X6.5)91551-ZVL-010
Required: 4
COLLAR (12X6.5)
N
$2.53
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
