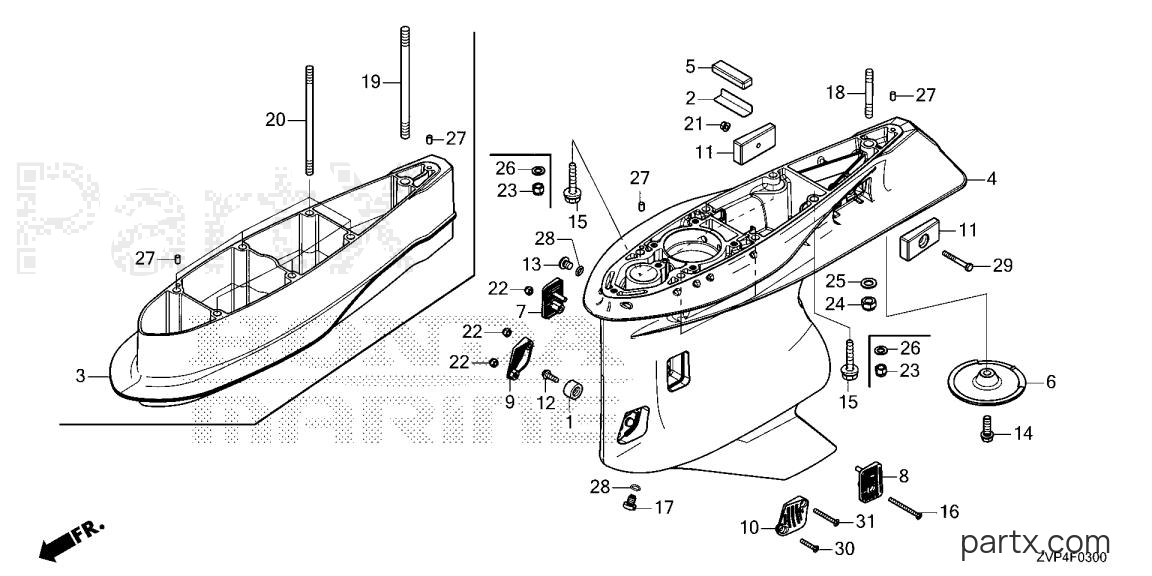

Pre 1997 Marine Engine BF - BF350A XDA GEAR CASE diagram
001
Honda
METAL, ANODE12155-ZV5-010
Required: 1
METAL, ANODE
N
In stock
Only 5 remaining
$10.14
You save $2.54
002
Honda
PLATE19286-ZW1-B00
Required: 1
PLATE, RUBBER SETTING
N
$7.11
You save $1.25
003
Honda
SEPARATOR *NH565*40202-ZVP-600ZA
Required: 1
SEPARATOR, EXTENSION *NH565*(GRAND PRIX WHITE)
N
$903.92
You save $159.52
003
Honda
SEPARATOR *NHB14M*40202-ZVP-600ZB
Required: 1
SEPARATOR, EXTENSION *NHB14M*(AQUA MARINE SILVER METALLIC)
N
$903.92
You save $159.52
004
Honda
CASE, GEAR *NH565*41101-ZVP-000ZA
Required: 1
CASE, GEAR *NH565*(GRAND PRIX WHITE)
N
$1119.23
You save $197.51
004
Honda
CASE, GEAR *NHB14M*41101-ZVP-000ZB
Required: 1
CASE, GEAR *NHB14M*(AQUA MARINE SILVER METALLIC)
N
$1119.23
You save $197.51
005
Honda
GROMMET, GEAR CASE41102-ZW1-B00
Required: 1
GROMMET, GEAR CASE
N
$7.11
You save $1.25
006
Honda
COVER *NHB14M*41102-ZX2-E00ZA
Required: 1
COVER, GEAR CASE *NHB14M*(AQUA MARINE SILVER METALLIC)
N
$37.54
You save $6.62
006
Honda
COVER *NH565*41102-ZX2-E00ZD
Required: 1
COVER, GEAR CASE *NH565*(GRAND PRIX WHITE)
N
$36.43
You save $6.43
007
Honda
SCREEN, R. RR. WATER41104-ZVP-000
Required: 1
SCREEN, R. RR. WATER
N
$6.60
You save $1.16
008
Honda
SCREEN, L. RR. WATER41105-ZVP-000
Required: 1
SCREEN, L. RR. WATER
N
$6.60
You save $1.16
009
Honda
SCREEN, R. FR. WATER41106-ZVP-000
Required: 1
SCREEN, R. FR. WATER
N
$5.81
You save $1.03
010
Honda
SCREEN, L. FR. WATER41107-ZVP-000
Required: 1
SCREEN, L. FR. WATER
N
$5.81
You save $1.03
011
Honda
METAL, ANODE41109-ZW1-B00
Required: 2
METAL, ANODE
N
$20.48
You save $3.62
012
Honda
BOLT, FLANGE (6X18)90004-ZX2-000
Required: 1
BOLT, FLANGE (6X18)
N
$2.13
You save $0.38
013
Honda
BOLT, OIL CHECK90101-ZW9-003
Required: 1
BOLT, OIL CHECK
N
$2.98
You save $0.74
014
Honda
BOLT-WASHER (10X32)90103-ZY6-000
Required: 1
BOLT-WASHER (10X32)
N
$3.52
You save $0.62
016
Honda
SCREW, OVAL (5X60)90116-ZVP-000
Required: 1
SCREW, OVAL (5X60)
N
$2.65
You save $0.47
017
Honda
BOLT, DRAIN PLUG90120-ZY3-000
Required: 1
BOLT, DRAIN PLUG
N
$16.22
You save $2.86
019
Honda
BOLT, STUD (12X170)90130-ZY3-620
Required: 1
BOLT, STUD (12X170)
N
$71.18
You save $12.56
020
Honda
BOLT, STUD (10X170)90131-ZY3-620
Required: 6
BOLT, STUD (10X170)
N
$47.48
You save $8.38
021
Honda
NUT, SELF-LOCK (6MM)90205-ZY1-000
Required: 1
NUT, SELF-LOCK (6MM)
N
$5.39
You save $0.95
022
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 3
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
023
Honda
NUT (10MM)90306-ZV5-003
Required: 6
NUT, SELF-LOCK (10MM)
N
$3.84
You save $0.68
024
Honda
NUT (12MM)90308-ZW1-003
Required: 1
NUT, SELF-LOCK (12MM)
N
$11.49
You save $2.03
025
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 1
WASHER, PLAIN (12MM)
N
$3.14
You save $0.78
026
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 6
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
027
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 4
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
028
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
029
Honda
BOLT, HEX. (6X50)92101-06050-4J
Required: 1
BOLT, HEX. (6X50)
N
$1.36
You save $0.24
030
Honda
SCREW, OVAL (5X30)93700-05030-4J
Required: 1
SCREW, OVAL (5X30)
N
$1.14
You save $0.20
031
Honda
SCREW, OVAL (5X45)93700-05045-4J
Required: 1
SCREW, OVAL (5X45)
N
$2.21
You save $0.39
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
