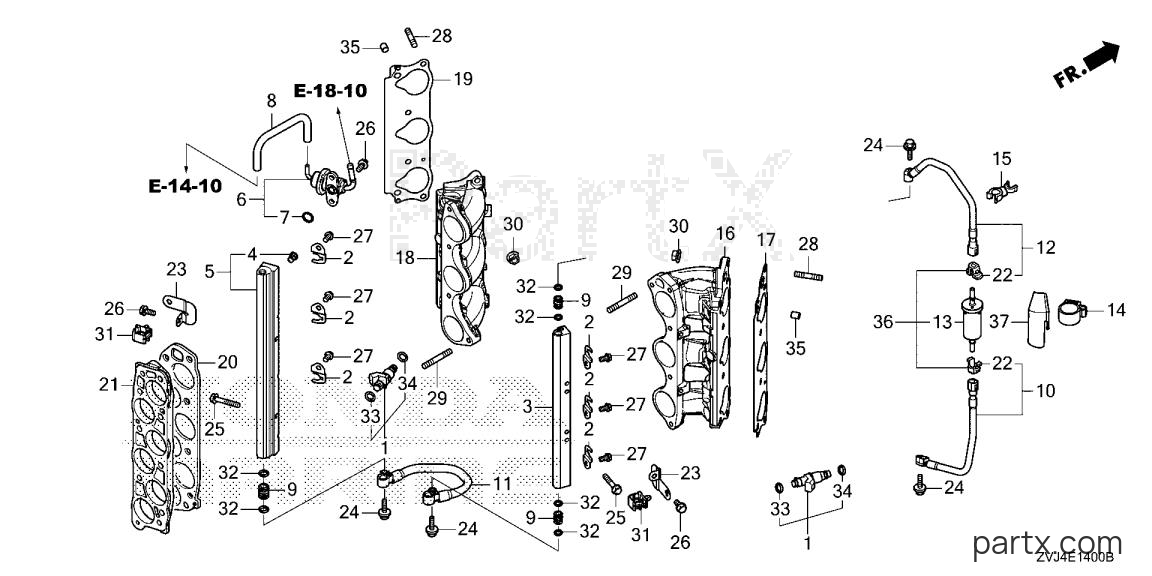

Pre 1997 Marine Engine BF - BF200D XCDA FUEL PIPE - INJECTOR diagram
001
Honda
INJECTOR ASSY., FUEL16450-ZY6-003
Required: 6
INJECTOR ASSY., FUEL
N
$94.95
You save $17.25
002
Honda
CLIP, INJECTOR16451-ZY3-000
Required: 6
CLIP, INJECTOR
N
$5.02
You save $0.88
003
Honda
PIPE, R. FUEL16611-ZY3-A00
Required: 1
PIPE, R. FUEL
N
$140.47
You save $24.79
004
Honda
MESH, FUEL FILTER16614-P5G-003
Required: 1
MESH, FUEL FILTER
N
$13.96
You save $2.46
005
Honda
PIPE, L. FUEL16620-ZY3-A00
Required: 1
PIPE, L. FUEL
N
$163.47
You save $28.85
006
Honda
REGULATOR, PRESSURE16740-ZY3-A01
Required: 1
REGULATOR ASSY., PRESSURE
N
$104.95
You save $18.75
007
Honda
O-RING16741-PG7-005
Required: 1
O-RING, PRESSURE REGULATOR
N
$4.32
You save $0.76
008
Honda
TUBE16748-ZVL-000
Required: 1
TUBE, PRESSURE REGULATOR CONTROL
N
$1.84
You save $0.32
009
Honda
JOINT, FUEL PIPE16752-ZY3-A00
Required: 3
JOINT, FUEL PIPE
N
$8.30
You save $1.46
010
Honda
HOSE, FUEL16755-ZVL-003
Required: 1
HOSE, FUEL
N
$59.09
You save $10.43
011
Honda
HOSE, FUEL JOINT16757-ZY3-003
Required: 1
HOSE, FUEL JOINT
N
$106.76
You save $18.84
012
Honda
HOSE B, FUEL16765-ZVL-B11
Required: 1
HOSE B, FUEL
N
$41.12
You save $7.26
013
Honda
FILTER, FUEL16910-ZVL-003
Required: 1
FILTER, FUEL (HIGH)
N
$22.68
You save $4.00
014
Honda
SUSPENSION, STRAINER16917-ZVL-010
Required: 1
SUSPENSION, STRAINER
N
$12.70
You save $2.24
016
Honda
BASE, R. INJECTOR17051-ZY3-A00
Required: 1
BASE, R. INJECTOR
N
$315.38
You save $55.66
017
Honda
GASKET, RR.17065-RCA-A01
Required: 1
GASKET, RR. INJECTOR BASE
N
$25.41
You save $4.48
018
Honda
BASE, L. INJECTOR17061-ZY3-A00
Required: 1
BASE, L. INJECTOR
N
$343.15
You save $60.56
019
Honda
GASKET, RR.17065-RCA-A01
Required: 1
GASKET, RR. INJECTOR BASE
N
$25.41
You save $4.48
020
Honda
GASKET, IN. MANIFOLD17105-P8E-A01
Required: 1
GASKET, IN. MANIFOLD
N
$31.91
You save $5.63
021
Honda
SPACER, IN. MANIFOLD17108-ZY3-000
Required: 1
SPACER, IN. MANIFOLD
N
$149.00
You save $26.30
022
Honda
RETAINER17711-S0X-931
Required: 2
RETAINER (BLUE GREEN) (TOKAI)
N
$4.23
You save $0.75
023
Honda
BRKT, HARNESS CLIP A32112-ZY3-000
Required: 4
BRACKET, HARNESS CLIP A
N
$6.94
You save $1.22
024
Honda
BOLT, FLANGE (6X25)90014-ZZ5-M01
Required: 4
BOLT, FLANGE (6X25)
N
$2.11
You save $0.37
025
Honda
BOLT, FLANGE (6X35)90019-ZZ5-M01
Required: 4
BOLT, FLANGE (6X35)
N
$2.55
You save $0.45
026
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 6
BOLT, FLANGE (6X14)
N
$1.29
You save $0.23
027
Honda
BOLT, FLANGE (6X10)90042-ZY9-M01
Required: 6
BOLT, FLANGE (6X10)
N
$1.29
You save $0.23
028
Honda
BOLT, STUD (8X25)92900-08025-0B
Required: 8
BOLT, STUD (8X25)
N
$2.28
You save $0.40
029
Honda
BOLT, STUD (8X45)90044-ZVL-010
Required: 2
BOLT, STUD (8X45)
N
$3.33
You save $0.59
030
Honda
NUT (8MM)90201-ZVP-000
Required: 8
NUT, FLANGE CAP (8MM)
N
$1.82
You save $0.32
031
Honda
CLIP, HARN (10MM)90650-SB2-003
Required: 4
CLIP, WIRE HARNESS (10MM)
N
$7.16
You save $1.26
032
Honda
O-RING (7.8X1.9)91301-MJ0-003
Required: 6
O-RING (7.8X1.9) (ARAI)
N
$2.36
You save $0.42
033
Honda
O-RING (7.47X3.6)91301-PLC-000
Required: 6
O-RING (7.47X3.6)
N
$3.86
You save $0.68
034
Honda
O-RING (7.45X3.61)91302-PNA-003
Required: 6
O-RING (7.45X3.61) (NOK)
N
$3.03
You save $0.53
035
Honda
PIN, DOWEL (10X12)94301-10120
Required: 4
PIN, DOWEL (10X12)
N
$2.55
You save $0.45
036
Honda
FILTER ASSY., FUEL06160-ZVL-010
Required: 1
FILTER ASSY., FUEL (HIGH)
N
$15.72
You save $2.77
037
Honda
COVER, STRAINER16918-ZVL-000
Required: 1
COVER, STRAINER
N
$7.33
You save $1.29
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
