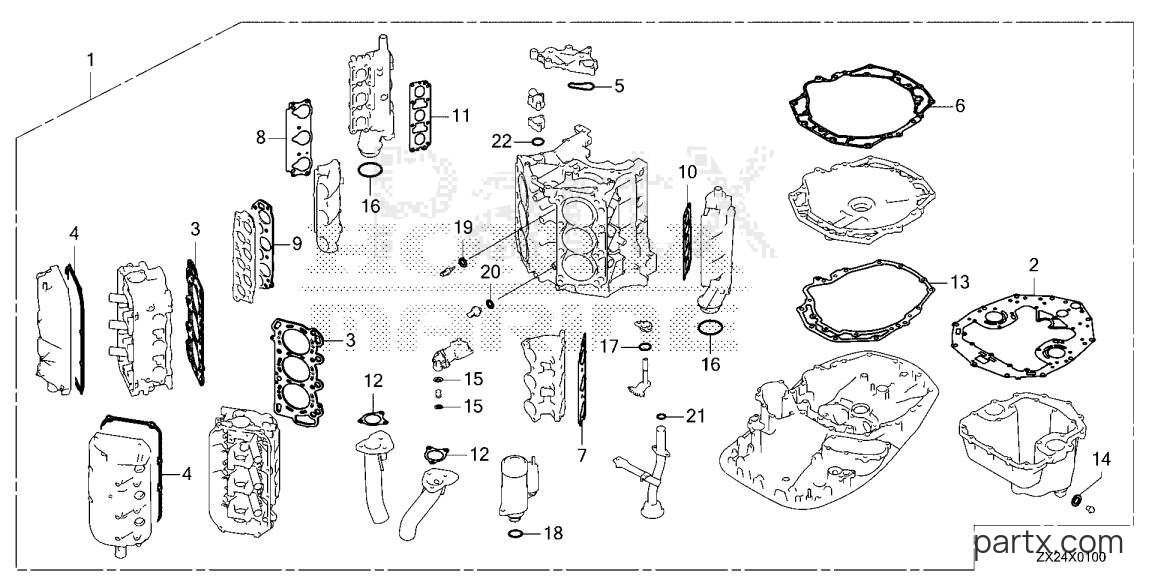

Pre 1997 Marine Engine BF - BF250A XXCA GASKET KIT diagram
001
Honda
GASKET KIT (BF250)06115-ZX2-010
Required: 1
GASKET KIT (BF250)
N
$520.61
You save $91.87
002
Honda
GASKET, OIL PAN11381-ZX2-003
Required: 1
GASKET, OIL PAN
N
$76.04
You save $13.42
003
Honda
GASKET, CYL HD12251-ZY3-A01
Required: 2
GASKET, CYLINDER HEAD (NIPPON LEAKLESS)
N
$63.14
You save $11.14
004
Honda
GASKET, HEAD COVER12312-ZY3-000
Required: 2
GASKET, HEAD COVER
N
$41.70
You save $7.36
005
Honda
O-RING14529-ZY3-000
Required: 1
O-RING, TIMING BELT TENSIONER BASE
N
$5.92
You save $1.04
006
Honda
GSKT, OIL PUMP BODY15112-ZY3-013
Required: 1
GASKET, OIL PUMP BODY
N
$61.90
You save $10.92
007
Honda
GASKET, FR.17055-RCA-A01
Required: 1
GASKET, FR. INJECTOR BASE
N
$25.41
You save $4.48
008
Honda
GASKET, RR.17065-RCA-A01
Required: 1
GASKET, RR. INJECTOR BASE
N
$25.41
You save $4.48
009
Honda
GASKET, IN. MANIFOLD17105-P8E-A01
Required: 1
GASKET, IN. MANIFOLD
N
$31.91
You save $5.63
010
Honda
GASKET, R.18115-ZY3-003
Required: 1
GASKET, R. EX. MANIFOLD
N
$33.63
You save $8.41
011
Honda
GASKET, L.18125-ZY3-003
Required: 1
GASKET, L. EX. MANIFOLD
N
In stock
Only 1 remaining
$33.66
You save $8.42
012
Honda
GASKET, EX. PIPE18333-ZY3-003
Required: 2
GASKET, EX. PIPE
N
$6.83
You save $1.21
012
Honda
GASKET, EX. PIPE18333-ZVL-003
Required: 2
GASKET, EX. PIPE
N
$6.83
You save $1.21
013
Honda
GASKET, MOUNT CASE23172-ZY3-003
Required: 1
GASKET, MOUNT CASE
N
$123.88
You save $21.86
014
Honda
WASHER, DRAIN (12MM)90601-ZE2-000
Required: 1
WASHER, DRAIN PLUG (12MM)
N
$2.53
You save $0.63
015
Honda
O-RING (7.8X1.9)91301-MJ0-003
Required: 2
O-RING (7.8X1.9) (ARAI)
N
$2.36
You save $0.42
016
Honda
O-RING (66.4X3.1)91301-ZY3-003
Required: 2
O-RING (66.4X3.1)
N
In stock
Only 4 remaining
$9.52
You save $1.68
-50%
017
Honda
O-RING (26.9X2.4)91302-PF0-003
Required: 1
O-RING (26.9X2.4) (NOK)
N
In stock
Only 1 remaining
$2.09
You save $2.09
018
Honda
O-RING (59.4X3.1)91303-ZY3-000
Required: 1
O-RING (59.4X3.1)
N
$8.33
You save $1.47
019
Honda
O-RING (9.5X1.9)91307-PNA-003
Required: 1
O-RING (9.5X1.9)
N
$2.28
You save $0.40
020
Honda
O-RING (13X1.5)91319-PR3-003
Required: 1
O-RING (13X1.5) (ARAI)
N
$5.18
You save $0.92
021
Honda
O-RING (20.6X2.6)91324-PC6-000
Required: 1
O-RING (20.6X2.6)
N
$3.38
You save $0.60
022
Honda
O-RING (31.5X2.4)91356-SD4-952
Required: 1
O-RING (31.5X2.4) (ARAI)
N
$3.70
You save $0.92
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
