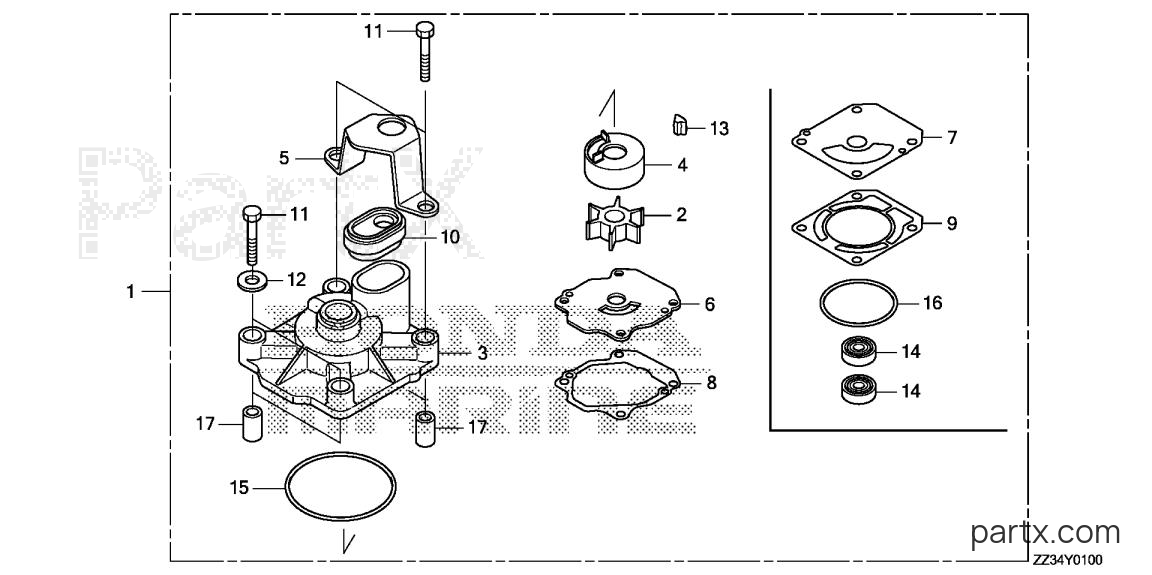

All Years Marine Engine BFP - BFP60A XRTA IMPELLER PUMP KIT diagram
001
Honda
PUMP KIT, IMPELLER06194-ZZ3-020
Required: 1
PUMP KIT, IMPELLER (POWER THRUST)
N
$155.02
You save $27.36
002
Honda
IMPELLER, PUMP19210-ZV5-003
Required: 1
IMPELLER, PUMP
N
$28.87
You save $5.09
003
Honda
HOUSING, IMPELLER19221-ZZ3-000
Required: 1
HOUSING, IMPELLER
N
$38.37
You save $6.77
004
Honda
LINER, PUMP19223-ZZ3-000
Required: 1
LINER, PUMP
N
$20.18
You save $3.56
005
Honda
HOLDER19228-ZZ3-000
Required: 1
HOLDER, WATER TUBE SEAL
N
$15.89
You save $2.80
006
Honda
COVER, IMPELLER19231-ZZ3-000
Required: 1
COVER, IMPELLER
N
$24.99
You save $4.41
007
Honda
GASKET B, IMPELLER19234-ZZ3-E00
Required: 1
GASKET B, IMPELLER (POWER THRUST)
N
$7.00
You save $1.24
009
Honda
GASKET, WATER PUMP19242-ZW1-B00
Required: 1
GASKET, WATER PUMP
N
$10.61
You save $1.87
010
Honda
RUB, WATER TUBE SEAL19253-ZZ3-000
Required: 1
RUBBER, WATER TUBE SEAL
N
$11.59
You save $2.05
011
Honda
BOLT, HEX. (8X55)90010-ZV5-000
Required: 4
BOLT, HEX. (8X55)
N
$5.30
You save $0.94
012
Honda
WASHER (8MM)90514-921-000
Required: 2
WASHER (8MM)
N
$1.12
You save $0.20
013
Honda
KEY, WOODRUFF90752-ZV5-003
Required: 1
KEY, WOODRUFF
N
$8.53
You save $1.51
014
Honda
SEAL (23X36X6)91253-ZZ3-003
Required: 2
SEAL, WATER (23X36X6)
N
$6.26
You save $1.10
015
Honda
O-RING, WATER PUMP91356-ZZ3-000
Required: 1
O-RING, WATER PUMP
N
$4.18
You save $0.74
016
Honda
O-RING (58.5X3.5)91359-MB0-000
Required: 1
O-RING (58.5X3.5)
N
$5.63
You save $1.41
017
Honda
COLLAR, DISTANCE91552-ZY6-000
Required: 4
COLLAR, DISTANCE
N
$5.02
You save $0.88
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
