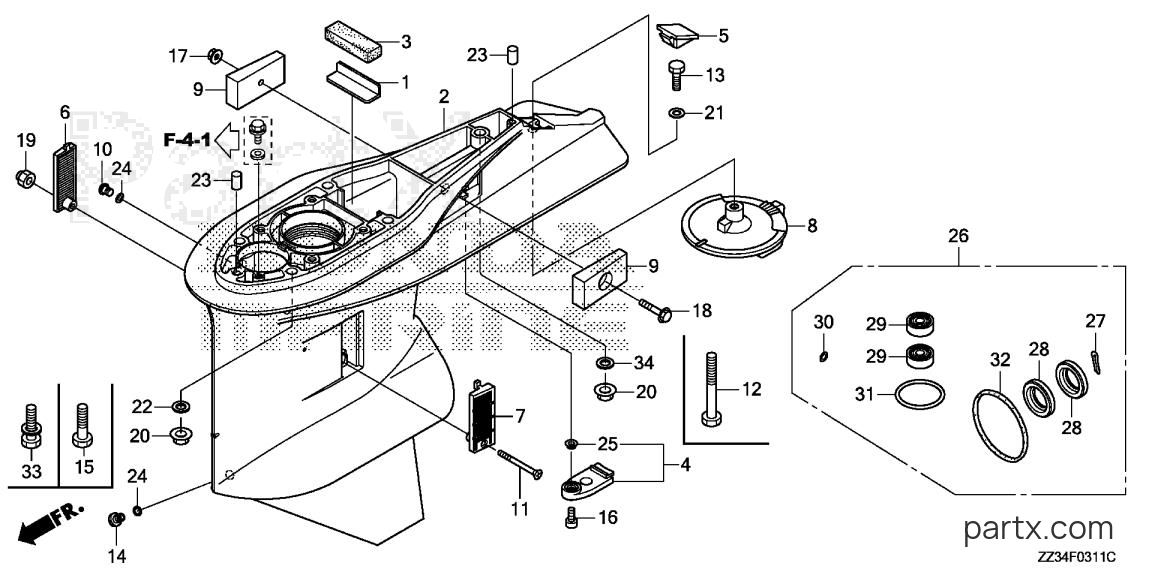

All Years Marine Engine BFP - BFP60A LRTA GEAR CASE (POWER THRUST) diagram
001
Honda
PLATE19286-ZW1-B00
Required: 1
PLATE, RUBBER SETTING
N
$7.11
You save $1.25
002
Honda
CASE,GEA*NH282MU*41101-ZY9-H00ZC
Required: 1
CASE,GEA*NH282MU*
N
$894.92
You save $157.93
003
Honda
GROMMET, GEAR CASE41102-ZW1-B00
Required: 1
GROMMET, GEAR CASE
N
$7.11
You save $1.25
004
Honda
COVER B, GEAR CASE41102-ZZ0-000
Required: 1
COVER B, GEAR CASE
N
$10.64
You save $1.88
005
Honda
GROMMET, GEAR CASE41103-ZZ0-000
Required: 1
GROMMET, GEAR CASE
N
$11.76
You save $2.08
006
Honda
SCREEN, R. WATER41104-ZZ0-000
Required: 1
SCREEN, R. WATER
N
$8.38
You save $1.48
007
Honda
SCREEN, L. WATER41105-ZZ0-000
Required: 1
SCREEN, L. WATER
N
$8.38
You save $1.48
008
Honda
TAB, TRIM *NH282MU*41107-ZZ0-000ZA
Required: 1
TAB, TRIM *NH282MU*(OYSTER SILVER METALLIC-U)
N
$45.30
You save $7.99
009
Honda
METAL, ANODE41109-ZW1-B00
Required: 2
METAL, ANODE
N
$20.48
You save $3.62
010
Honda
BOLT, OIL CHECK90101-ZW9-003
Required: 1
BOLT, OIL CHECK
N
$2.98
You save $0.74
011
Honda
SCREW, FLAT (5X55)90101-ZZ0-000
Required: 1
SCREW, FLAT (5X55)
N
$2.75
You save $0.49
012
Honda
BOLT, HEX. (10X80)90104-ZW1-900
Required: 1
BOLT, HEX. (10X80)
N
$14.67
You save $2.59
013
Honda
BOLT, HEX. (8X25)90115-ZV5-000
Required: 1
BOLT, HEX. (8X25)
N
$4.32
You save $0.76
014
Honda
BOLT, DRAIN PLUG90120-ZY3-000
Required: 1
BOLT, DRAIN PLUG
N
$16.22
You save $2.86
015
Honda
BOLT, HEX. (10X40)90123-ZV5-010
Required: 4
BOLT, HEX. (10X40)
N
$7.36
You save $1.30
016
Honda
BOLT, SOCKET (6X16)90133-ZY3-000
Required: 1
BOLT, SOCKET (6X16)
N
$3.16
You save $0.56
017
Honda
NUT, SELF-LOCK (6MM)90205-ZY1-000
Required: 1
NUT, SELF-LOCK (6MM)
N
$5.39
You save $0.95
018
Honda
BOLT, FLANGE (6X35)90225-HW1-670
Required: 1
BOLT, FLANGE (6X35)
N
$2.40
You save $0.42
019
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 1
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
021
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 1
WASHER, PLAIN (8MM)
N
$2.50
You save $0.44
022
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 4
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
023
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 2
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
024
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
025
Honda
COLLAR (6.5X9X3)91556-ZY3-000
Required: 1
COLLAR, DISTANCE (6.5X9X3)
N
$2.80
You save $0.50
026
Honda
CASE KIT, GEAR06125-ZZ3-E00
Required: 1
CASE KIT, GEAR (P/T)
N
$22.21
You save $3.92
027
Honda
PIN, SPLIT (4.0)90758-ZW1-B00
Required: 1
PIN, SPLIT (4.0)
N
$1.98
You save $0.50
028
Honda
SEAL (30X45X7)91252-ZZ3-003
Required: 2
SEAL, WATER (30X45X7)
N
$7.50
You save $1.32
029
Honda
SEAL (12X21X6)91254-ZY3-003
Required: 2
SEAL, WATER (12X21X6)
N
$4.82
You save $1.20
030
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
$3.84
You save $0.96
032
Honda
O-RING (94X4.1)91351-ZW1-B02
Required: 1
O-RING (94X4.1)
N
$7.31
You save $1.29
033
Honda
BOLT-WASHER (10X40)90123-ZY6-000
Required: 4
BOLT-WASHER (10X40)
N
$7.29
You save $1.29
034
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 1
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
