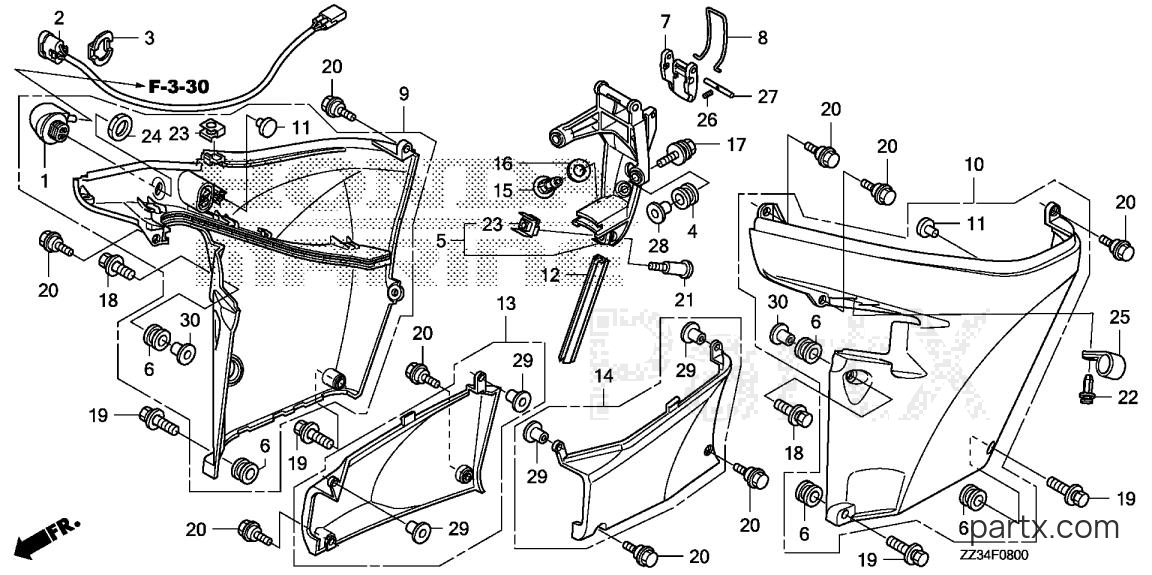

All Years Marine Engine BFP - BFP60A XRTA ENGINE UNDER COVER diagram
001
Honda
CAP, WATER JOINT19289-ZY6-000
Required: 1
CAP, WATER JOINT
N
$31.57
You save $5.57
002
Honda
SWITCH, POWER TILT35640-ZZ3-003
Required: 1
SWITCH ASSY., POWER TILT
N
$58.33
You save $10.29
003
Honda
STAY35645-ZY9-000
Required: 1
STAY, POWER TILT SWITCH
N
$8.77
You save $1.55
004
Honda
GROM, CASE (LOWER)40102-ZV5-000
Required: 2
GROMMET, CASE (LOWER)
N
$2.99
You save $0.53
005
Honda
BRACKET, RR. COVER40155-ZZ3-000
Required: 1
BRACKET, RR. COVER (LOWER)
N
$56.97
You save $10.05
006
Honda
RUB, FENDER MOUNTING61102-MB6-631
Required: 6
RUBBER, FENDER MOUNTING
N
$2.33
You save $0.41
007
Honda
LEVER, FASTENER63232-ZY9-000
Required: 1
LEVER, FASTENER
N
$14.79
You save $2.61
008
Honda
WIRE, FASTENER63237-ZY9-000
Required: 1
WIRE, FASTENER
N
$9.01
You save $1.59
009
Honda
CVR, R. *NH282MU*63710-ZZ3-000ZB
Required: 1
COVER ASSY., R. ENGINE (LOWER)*NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$279.36
You save $49.30
010
Honda
CVR, L. *NH282MU*63715-ZZ3-000ZB
Required: 1
COVER ASSY., L. ENGINE (LOWER)*NH282MU*(OYSTER SILVER METALLIC-U)
N
$279.36
You save $49.30
011
Honda
RUBBER, CUSHION63718-ZW9-000
Required: 2
RUBBER, CUSHION
N
$2.40
You save $0.42
012
Honda
SEAL, RR. COVER63724-ZZ3-000
Required: 1
SEAL, RR. COVER (LOWER)
N
$4.90
You save $0.86
013
Honda
COVER, R. *NH282MU*63731-ZZ3-000ZA
Required: 1
COVER, R. MOUNTING (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$94.38
You save $16.66
014
Honda
COVER, L. *NH282MU*63736-ZZ3-000ZA
Required: 1
COVER, L. MOUNTING (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$98.63
You save $17.41
015
Honda
GROMMET, WATER CHECK82873-ZY9-000
Required: 1
GROMMET, WATER CHECK
N
$4.95
You save $0.87
016
Honda
SEAL82874-ZY9-000
Required: 1
SEAL, WATER CHECK GROMMET
N
$4.23
You save $0.75
017
Honda
BOLT-WASHER (6X25)90013-ZW1-000
Required: 2
BOLT-WASHER (6X25)
N
$2.80
You save $0.50
018
Honda
BOLT-WASHER (6X22)90103-ZY9-000
Required: 2
BOLT-WASHER (6X22)
N
$3.09
You save $0.55
019
Honda
BOLT-WASHER (6X27)90106-ZZ3-000
Required: 4
BOLT-WASHER (6X27)
N
$4.00
You save $0.71
020
Honda
BOLT, SPECIAL (6X17)90111-ZY3-000
Required: 9
BOLT, SPECIAL (6X17)
N
$2.26
You save $0.56
021
Honda
BOLT, RR. BRACKET90113-ZY9-003
Required: 1
BOLT, RR. BRACKET
N
$10.76
You save $1.90
022
Honda
SCREW, RIVET (5X10)90127-ZV5-003
Required: 1
SCREW, RIVET (5X10)
N
$2.19
You save $0.39
$4.20
You save $0.74
024
Honda
NUT, HEX. (16MM)90302-921-000
Required: 1
NUT, HEX. (16MM)
N
$4.64
You save $0.82
025
Honda
CLIP (10.7MM)90602-SB0-003
Required: 1
CLIP (10.7MM)
N
$4.57
You save $0.81
026
Honda
PIN, SPRING (2.0X12)90751-ZY9-000
Required: 1
PIN, SPRING (2.0X12)
N
$2.57
You save $0.45
027
Honda
PIN (5X59)90755-ZY9-000
Required: 1
PIN (5X59)
N
$13.52
You save $2.38
028
Honda
COLLAR91553-ZV5-010
Required: 2
COLLAR, MODULE IGNITION CONTROL CASE (CDI)
N
$3.03
You save $0.53
029
Honda
COLLAR (6.5X9X11.5)91553-ZY6-000
Required: 4
COLLAR, DISTANCE (6.5X9X11.5)
N
$4.61
You save $0.81
030
Honda
COLLAR (6.2X7.5)91554-ZY9-000
Required: 2
COLLAR, DISTANCE (6.2X7.5)
N
$3.21
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
