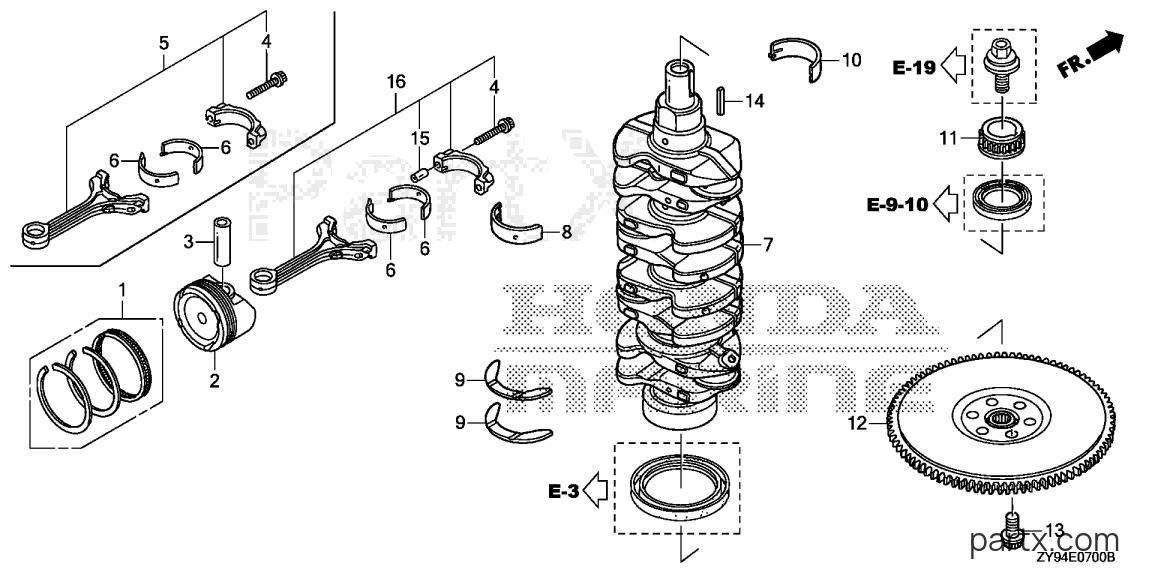

2007 And Later Marine Engine BF - BF90DK0 XRTA CRANKSHAFT - PISTON diagram
001
Honda
RING SET (STD)13010-ZY9-010
Required: 4
RING SET, PISTON (STD)
N
$63.16
You save $11.15
001
Honda
RING SET (0.25)13011-ZY9-010
Required: 4
RING SET, PISTON (0.25)
N
$58.68
You save $10.36
002
Honda
PISTON (STD)13101-ZZ0-000
Required: 4
PISTON (STD)
N
$72.56
You save $12.80
002
Honda
PISTON (0.25)13102-ZZ0-000
Required: 4
PISTON (0.25)
N
$71.38
You save $12.60
003
Honda
PIN, PISTON13111-PWA-000
Required: 4
PIN, PISTON
N
$23.78
You save $4.20
004
Honda
BOLT, CONNECTING ROD13204-PWA-003
Required: 8
BOLT, CONNECTING ROD
N
$8.91
You save $1.57
005
Honda
ROD, CONNECTING13210-ZY9-010
Required: 4
ROD, CONNECTING
N
$132.87
You save $23.45
006
Honda
BEARING A, CONN ROD13211-PWA-003
Required: 8
BEARING A, CONNECTING ROD (BLUE) (DAIDO)
N
$24.58
You save $4.34
006
Honda
BEARING B, CONN ROD13212-PWA-003
Required: 8
BEARING B, CONNECTING ROD (BLACK) (DAIDO)
N
$26.28
You save $4.64
006
Honda
BEARING C, CONN ROD13213-PWA-003
Required: 8
BEARING C, CONNECTING ROD (BROWN) (DAIDO)
N
$24.58
You save $4.34
006
Honda
BEARING D, CONN ROD13214-PWA-003
Required: 8
BEARING D, CONNECTING ROD (GREEN) (DAIDO)
N
$27.47
You save $4.85
006
Honda
BEARING E, CONN ROD13215-PWA-003
Required: 8
BEARING E, CONNECTING ROD (YELLOW) (DAIDO)
N
$27.47
You save $4.85
006
Honda
BEARING F, CONN ROD13216-PWA-003
Required: 8
BEARING F, CONNECTING ROD (PINK) (DAIDO)
N
$23.51
You save $4.15
006
Honda
BEARING G, CONN ROD13217-PWA-003
Required: 8
BEARING G, CONNECTING ROD (RED) (DAIDO)
N
$24.58
You save $4.34
007
Honda
CRANKSHAFT13310-ZY9-010
Required: 1
CRANKSHAFT
N
$768.50
You save $135.62
008
Honda
BRG B, MAIN (UPPER)13322-PWA-003
Required: 5
BEARING B, MAIN (UPPER) (BLACK) (DAIDO)
N
$23.83
You save $4.21
008
Honda
BRG C, MAIN (UPPER)13323-PWA-003
Required: 5
BEARING C, MAIN (UPPER) (BROWN) (DAIDO)
N
$25.41
You save $4.48
008
Honda
BRG D, MAIN (UPPER)13324-PWA-003
Required: 5
BEARING D, MAIN (UPPER) (GREEN) (DAIDO)
N
$25.41
You save $4.48
008
Honda
BRG E, MAIN (UPPER)13325-PWA-003
Required: 5
BEARING E, MAIN (UPPER) (YELLOW) (DAIDO)
N
$25.41
You save $4.48
008
Honda
BEARING F, MAIN13326-PWA-003
Required: 5
BEARING F, MAIN (UPPER) (PINK)(DAIDO)
N
$24.31
You save $4.29
008
Honda
BEARING G, MAIN13327-PWA-003
Required: 5
BEARING G, MAIN (UPPER) (RED) (DAIDO)
N
$22.81
You save $4.03
008
Honda
BEARING H, MAIN13328-PWA-003
Required: 5
BEARING H, MAIN (UPPER) (WHITE) (DAIDO)
N
$25.09
You save $4.43
009
Honda
WASHER, THRUST13331-ZY9-003
Required: 2
WASHER, THRUST
N
$10.35
You save $1.83
010
Honda
BRG B, MAIN (LOWER)13342-PWA-003
Required: 5
BEARING B, MAIN (LOWER) (BLACK) (DAIDO)
N
$23.83
You save $4.21
010
Honda
BRG C, MAIN (LOWER)13343-PWA-003
Required: 5
BEARING C, MAIN (LOWER) (BROWN) (DAIDO)
N
$25.41
You save $4.48
010
Honda
BRG D, MAIN (LOWER)13344-PWA-003
Required: 5
BEARING D, MAIN (LOWER) (GREEN) (DAIDO)
N
$25.41
You save $4.48
010
Honda
BRG E, MAIN (LOWER)13345-PWA-003
Required: 5
BEARING E, MAIN (LOWER) (YELLOW) (DAIDO)
N
$25.41
You save $4.48
010
Honda
BEARING F, MAIN13346-PWA-003
Required: 5
BEARING F, MAIN (LOWER) (PINK)(DAIDO)
N
$24.31
You save $4.29
010
Honda
BEARING G, MAIN13347-PWA-003
Required: 5
BEARING G, MAIN (LOWER) (RED) (DAIDO)
N
$22.81
You save $4.03
010
Honda
BEARING H, MAIN13348-PWA-003
Required: 5
BEARING H, MAIN (LOWER) (WHITE) (DAIDO)
N
$24.02
You save $4.24
011
Honda
SPROCKET (23T)13621-ZY9-000
Required: 1
SPROCKET, CAM CHAIN (23T)
N
$64.43
You save $11.37
012
Honda
FLYWHEEL *BLACK*31110-ZY9-000ZA
Required: 1
FLYWHEEL *BLACK*(BLACK)
N
$621.31
You save $109.64
013
Honda
BOLT (12MM)90002-ZW1-010
Required: 6
BOLT (12MM)
N
$5.80
You save $1.02
014
Honda
KEY, SPECIAL90704-PH7-000
Required: 1
KEY, SPECIAL
N
$12.68
You save $2.24
015
Honda
PIN, DOWEL (8X10)94301-08100
Required: 8
PIN, DOWEL (8X10)
N
$2.33
You save $0.41
016
Honda
ROD, CONNECTING13210-ZY9-010
Required: 4
ROD, CONNECTING
N
$132.87
You save $23.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
