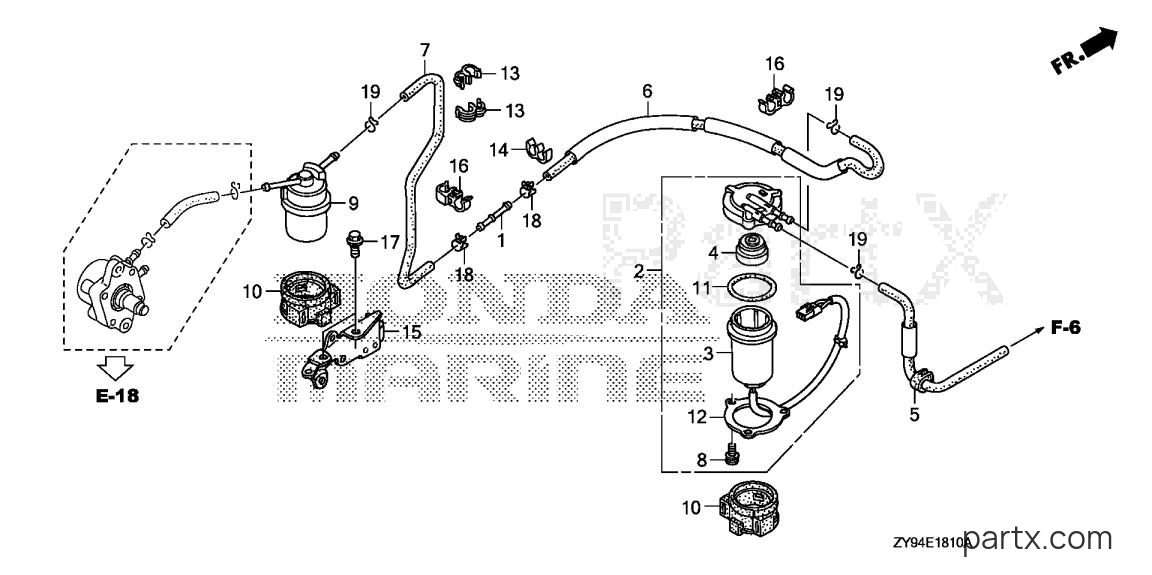

2007 And Later Marine Engine BF - BF90DK0 XRTA WATER SEPARATOR diagram
001
Honda
JOINT16723-RMA-E00
Required: 1
JOINT, FUEL FEED HOSE
N
$7.28
You save $1.28
002
Honda
SEPARATOR, WATER16800-ZY9-003
Required: 1
SEPARATOR ASSY., WATER
N
$260.52
You save $45.98
003
Honda
CUP, WATER SEPARATOR16805-ZY9-003
Required: 1
CUP, WATER SEPARATOR
N
$186.32
You save $32.88
004
Honda
BUFFER, PLATE16807-ZY3-003
Required: 1
BUFFER, PLATE
N
$49.88
You save $8.80
005
Honda
TUBE A, FUEL16850-ZY9-000
Required: 1
TUBE A, FUEL (TO 1016251) (NOT AVAILABLE)
N
$8.62
You save $1.52
006
Required: 1
TUBE B, FUEL (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
TUBE C, FUEL (NOT AVAILABLE)
N
Price unavailable
008
Honda
SCREW, PAN (5X12)16904-ZY3-003
Required: 3
SCREW, PAN (5X12)
N
$4.76
You save $0.84
009
Honda
FILTER, FUEL16910-ZY9-004
Required: 1
FILTER, FUEL
N
$18.91
You save $4.73
010
Honda
SUSPENSION, STRAINER16915-ZY3-010
Required: 2
SUSPENSION, STRAINER
N
$13.69
You save $2.42
$6.96
You save $1.74
$12.95
You save $2.29
013
Honda
CLAMP (7.5-11.5)17439-PY3-A01
Required: 2
CLAMP, TUBE (7.5-11.5) (BLACK)
N
$6.12
You save $1.08
014
Required: 1
CLAMP, TUBE (NOT AVAILABLE)
N
Price unavailable
015
Honda
BRKT B, HARNESS CLIP32112-ZY9-000
Required: 1
BRACKET B, HARNESS CLIP
N
$20.13
You save $3.55
016
Honda
CLIP, SENSOR HOSE53740-SE0-953
Required: 2
CLIP, SENSOR HOSE
N
$3.40
You save $0.60
017
Honda
BOLT (6X14) (CT200)90011-ZW9-000
Required: 2
BOLT, FLANGE (6X14) (CT200)
N
$1.94
You save $0.34
018
Honda
CLAMP, TUBE (D12)90602-ZW5-030
Required: 2
CLAMP, TUBE (D12)
N
$2.06
You save $0.36
019
Honda
CLIP, TUBE (B12)90604-ZV0-000
Required: 3
CLIP, TUBE (B12)
N
$1.55
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
