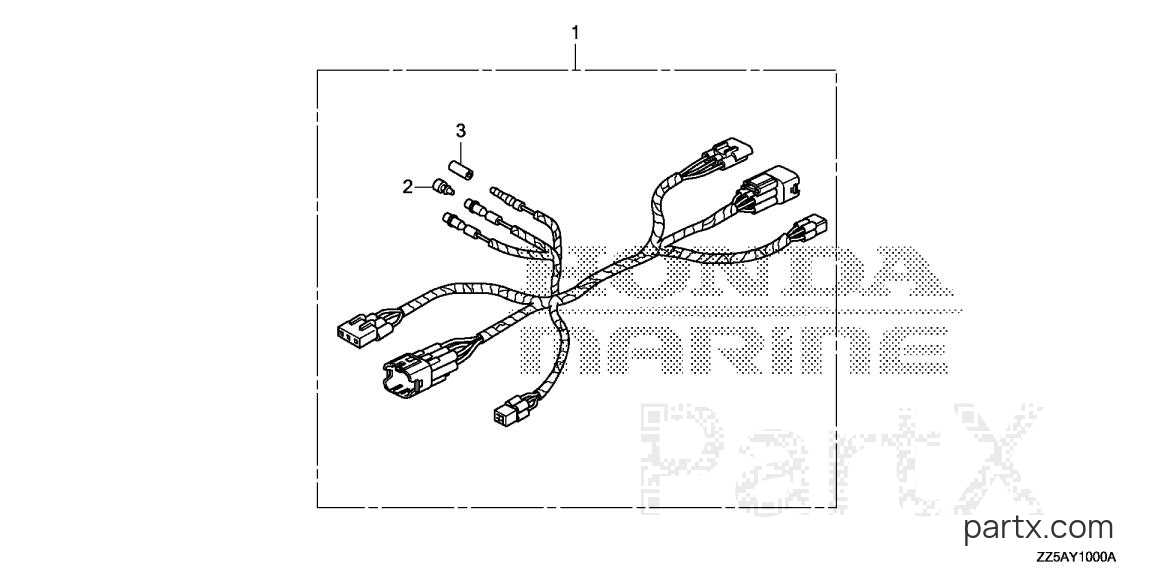

2007 And Later Marine Engine BF - BF50DK2 LRTA SUB HARNESS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF50DK2 LRTA - SUB HARNESS
Change View:
HARNESS ASSY.
001
Honda
HARNESS ASSY.32186-ZZ3-000
Required: 1
HARNESS ASSY., REMOTE CONTROL SUB (ENGINE NO.)
N
Cross Ship
Leaves in 2-5 days
$197.36
$167.76
You save $29.60
More details
PLUG, CONNECTOR
002
Honda
PLUG, CONNECTOR32823-ZV5-003
Required: 2
PLUG, CONNECTOR (INNER) (ENGINE NO.)
N
Cross Ship
Leaves in 2-5 days
$3.92
$3.33
You save $0.59
More details
PLUG, CONNECTOR
003
Honda
PLUG, CONNECTOR32824-ZV5-003
Required: 1
PLUG, CONNECTOR (OUTER) (ENGINE NO.)
N
Cross Ship
Leaves in 2-5 days
$4.14
$3.52
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
