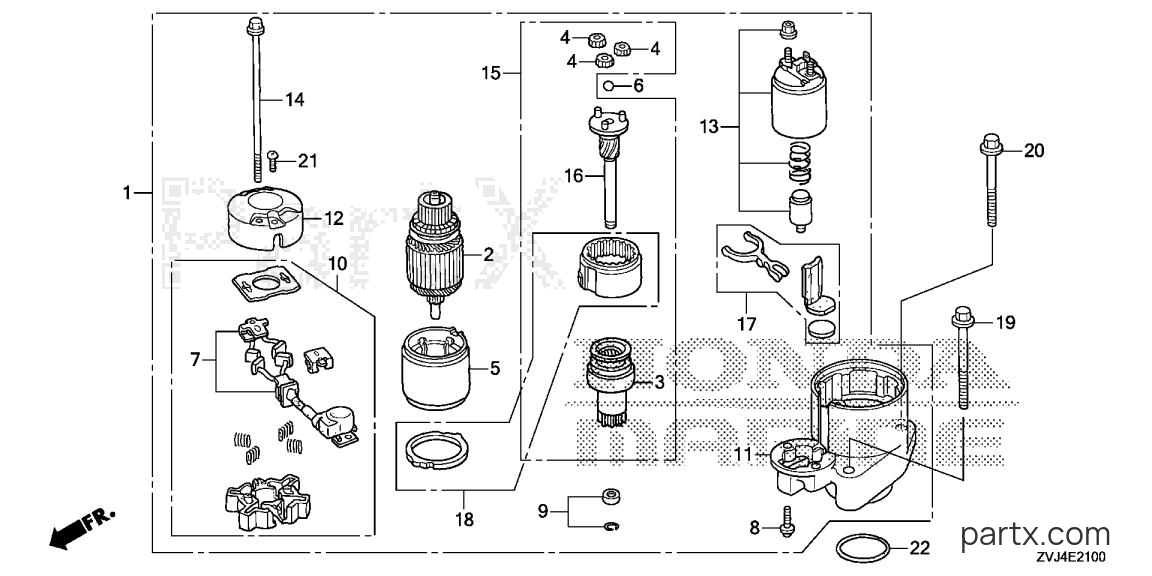

2007 And Later Marine Engine BF - BF225DK1 URA STARTER MOTOR diagram
001
Honda
STARTER MOTOR ASSY.31200-ZVL-B11
Required: 1
STARTER MOTOR ASSY.
N
$477.17
You save $84.21
$159.29
You save $28.11
003
Honda
CLUTCH, OVERRUNNING31207-ZY9-H01
Required: 1
CLUTCH, OVERRUNNING
N
$229.81
You save $40.55
004
Honda
GEAR, PLANETARY31215-RAA-A01
Required: 3
GEAR ASSY., PLANETARY (N/A FOR USA: SEE ASSEMBLY)
N
$50.37
You save $8.89
$110.26
You save $19.46
008
Honda
SCREW, PAN (6X22)31226-ZY9-H01
Required: 2
SCREW, PAN (6X22)
N
$2.46
You save $0.44
009
Honda
STOPPER SET, SLEEVE31229-ZY9-H01
Required: 1
STOPPER SET, SLEEVE
N
$17.00
You save $3.00
010
Honda
HOLDER, BRUSH31232-ZVL-B11
Required: 1
HOLDER, BRUSH
N
$49.35
You save $8.71
011
Honda
BRACKET, FR.31235-ZVL-B11
Required: 1
BRACKET, FR.
N
$94.35
You save $16.65
012
Honda
BRACKET, RR.31236-ZVL-B11
Required: 1
BRACKET, RR.
N
$22.73
You save $4.01
013
Honda
SWITCH ASSY., MAGNET31240-ZVL-B11
Required: 1
SWITCH ASSY., MAGNET
N
$184.81
You save $32.61
014
Honda
BOLT, THROUGH31261-ZVL-B11
Required: 2
BOLT, THROUGH
N
$3.16
You save $0.56
015
Honda
SHAFT ASSY., CLUTCH31242-ZVL-B11
Required: 1
SHAFT ASSY., CLUTCH
N
$296.55
You save $52.33
016
Honda
SHAFT ASSY., GEAR31246-ZVL-B11
Required: 1
SHAFT ASSY., GEAR
N
$99.06
You save $17.48
$7.68
You save $1.36
018
Honda
GEAR ASSY. (INNER)31251-ZVL-B11
Required: 1
GEAR ASSY. (INNER)
N
$34.29
You save $6.05
019
Honda
BOLT, FLG (10X110)90003-ZVL-010
Required: 1
BOLT, FLANGE (10X110)
N
$5.92
You save $1.04
020
Honda
BOLT, FLG (10X100)90018-ZVL-B10
Required: 1
BOLT, FLANGE (10X100)
N
$8.13
You save $1.43
021
Honda
SCREW, PAN (5X8)90107-ZW1-004
Required: 2
SCREW, PAN (5X8)
N
$2.75
You save $0.49
022
Honda
O-RING (59.4X3.1)91303-ZVT-000
Required: 1
O-RING (59.4X3.1)
N
$6.24
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
