All diagrams for this model

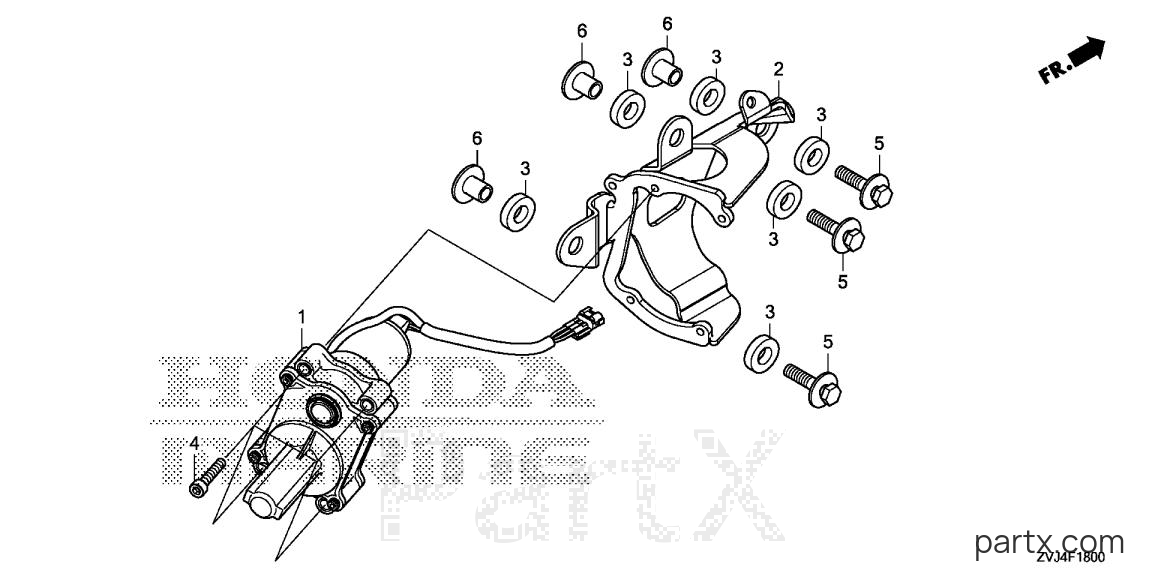

Pre 1997 Marine Engine BF - BF250D UDA ACTUATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF250D UDA - ACTUATOR
Change View:
ACTUATOR, SHIFT
001
Honda
ACTUATOR, SHIFT36520-ZVL-611
Required: 1
ACTUATOR ASSY., SHIFT
N
Cross Ship
Leaves in 2-5 days
$676.82
$575.30
You save $101.52
More details
BRKT, SHIFT ACTUATOR
002
Honda
BRKT, SHIFT ACTUATOR36521-ZVL-A10
Required: 1
BRACKET, SHIFT ACTUATOR
N
Cross Ship
Leaves in 2-5 days
$142.32
$120.97
You save $21.35
More details
RUBBER, CUSHION
003
Honda
RUBBER, CUSHION36522-ZVL-000
Required: 6
RUBBER, CUSHION
N
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
BOLT, SOCKET (6X30)
004
Honda
BOLT, SOCKET (6X30)90106-ZVL-010
Required: 4
BOLT, SOCKET (6X30)
N
Cross Ship
Leaves in 2-5 days
$4.64
$3.94
You save $0.70
More details
BOLT-WASHER (8X35)
005
Honda
BOLT-WASHER (8X35)90014-ZY9-M01
Required: 3
BOLT-WASHER (8X35)
N
Cross Ship
Leaves in 2-5 days
$3.64
$3.09
You save $0.55
More details
COLLAR (8.5X14.5)
006
Honda
COLLAR (8.5X14.5)91504-ZY9-M03
Required: 3
COLLAR (8.5X14.5)
N
Cross Ship
Leaves in 2-5 days
$7.52
$6.39
You save $1.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
