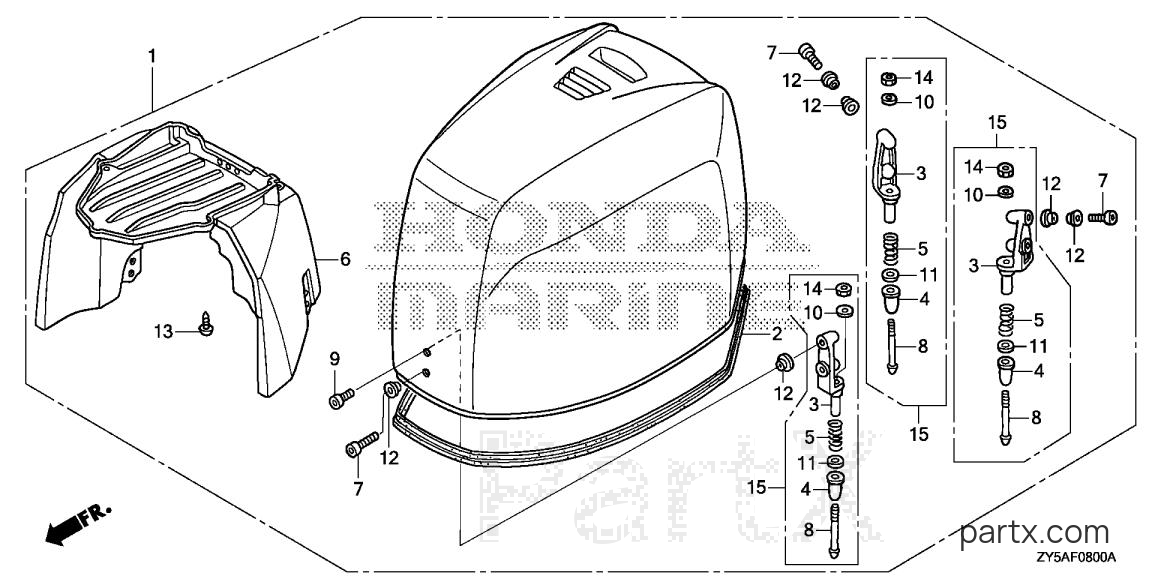

2007 And Later Marine Engine BF - BF150AK2 JA ENGINE COVER ASSY. diagram
001
Honda
COVER, ENG *NHB14M*63100-ZY6-050ZB
Required: 1
COVER ASSY., ENGINE *NHB14M*(AQUA MARINE SILVER METALLIC)
N
$1529.95
You save $269.99
001
Honda
COVER, ENG *NH565*63100-ZY6-050ZE
Required: 1
COVER ASSY., ENGINE *NH565*(GRAND PRIX WHITE)
N
$1462.15
You save $258.03
002
Honda
SEAL, ENGINE COVER63102-ZY6-010
Required: 1
SEAL, ENGINE COVER
N
$62.98
You save $11.12
003
Honda
BRACKET, HOOK63107-ZY3-010
Required: 3
BRACKET, HOOK
N
$36.86
You save $6.50
004
Honda
DAMPER, HOOK63108-ZY3-000
Required: 3
DAMPER, HOOK
N
$5.92
You save $1.04
005
Honda
SPRING63119-ZY3-000
Required: 3
SPRING, LOCK ADJUSTER
N
$3.33
You save $0.59
006
Honda
GUIDE63144-ZY6-000
Required: 1
GUIDE, ENGINE COVER AIR
N
$208.22
You save $36.74
007
Honda
BOLT, SOCKET (6X20)90101-ZY6-000
Required: 5
BOLT, SOCKET (6X20)
N
$3.16
You save $0.56
008
Honda
BOLT, COVER LOCK90109-ZY3-010
Required: 3
BOLT, COVER LOCK
N
$4.13
You save $0.73
009
Honda
BOLT, SOCKET (6X16)90133-ZY3-000
Required: 1
BOLT, SOCKET (6X16)
N
$3.16
You save $0.56
010
Honda
WASHER, PLAIN (6MM)90504-921-010
Required: 3
WASHER, PLAIN (6MM)
N
$1.43
You save $0.25
011
Honda
WASHER, PLAIN (12MM)90507-ZY3-000
Required: 3
WASHER, PLAIN (12MM)
N
$2.53
You save $0.45
012
Honda
COLLAR (6.5X9X3)91556-ZY3-000
Required: 11
COLLAR, DISTANCE (6.5X9X3)
N
$2.80
You save $0.50
013
Honda
SCREW, TAP (4X12)93913-142J0
Required: 8
SCREW, TAPPING (4X12)
N
$2.07
You save $0.37
014
Honda
NUT, HEX. (6MM)94002-06490-0S
Required: 3
NUT, HEX. (6MM)
N
$2.79
You save $0.49
015
Honda
HOOK KIT, COVER06631-ZY6-010
Required: 3
HOOK KIT, COVER
N
$43.21
You save $7.63
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
