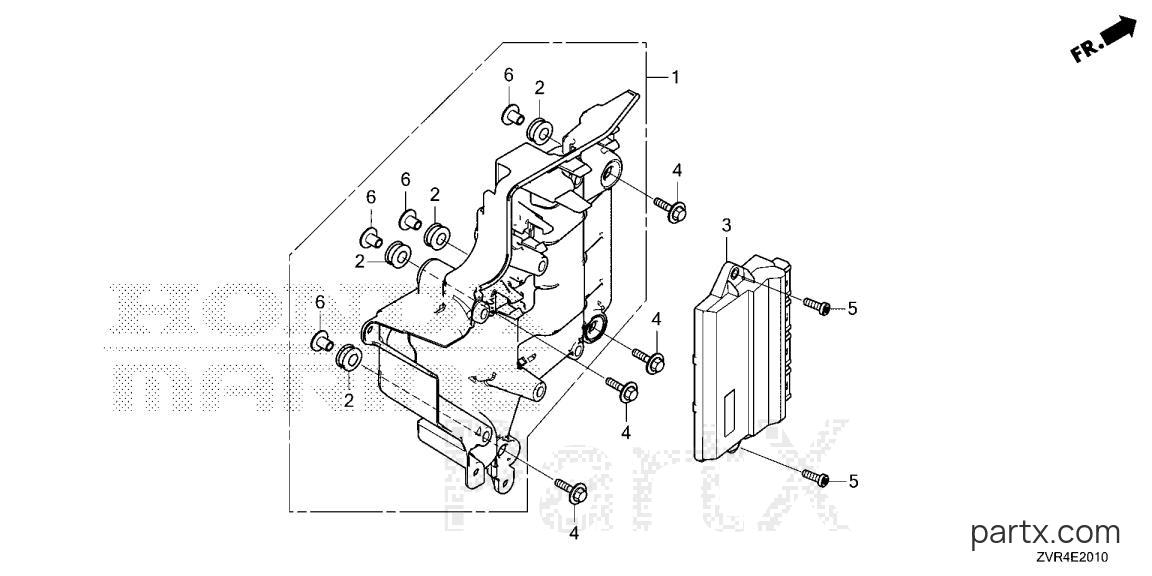

Pre 1997 Marine Engine BF - BF115J LRA ELECTRONIC CONTROL UNIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF115J LRA - ELECTRONIC CONTROL UNIT
Change View:
CASE ASSY.
001
Honda
CASE ASSY.30410-ZVT-000
Required: 1
CASE ASSY., ELECTRONIC PARTS
N
Cross Ship
Leaves in 2-5 days
$87.82
$74.65
You save $13.17
More details
GROMMET
002
Honda
GROMMET30419-ZY9-003
Required: 4
GROMMET, ELECTRONIC PARTS CASE
N
Cross Ship
Leaves in 2-5 days
$5.66
$4.81
You save $0.85
More details
CONTROL UNIT, EL
003
Honda
CONTROL UNIT, EL34750-ZVR-G11
Required: 1
CONTROL UNIT, ELECTRONIC
N
Cross Ship
Leaves in 2-5 days
$1127.70
$958.54
You save $169.16
More details
BOLT-WASHER (6X27)
004
Honda
BOLT-WASHER (6X27)90003-ZZ5-M01
Required: 4
BOLT-WASHER (6X27) (CT200)
N
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
BOLT, TORX (M6X20)
005
Honda
BOLT, TORX (M6X20)90102-ZZ0-M01
Required: 2
BOLT, TORX (M6X20)
N
Cross Ship
Leaves in 2-5 days
$5.58
$4.74
You save $0.84
More details
COLLAR (12X6.5)
006
Honda
COLLAR (12X6.5)91551-ZVL-010
Required: 4
COLLAR (12X6.5)
N
Cross Ship
Leaves in 2-5 days
$2.98
$2.53
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
