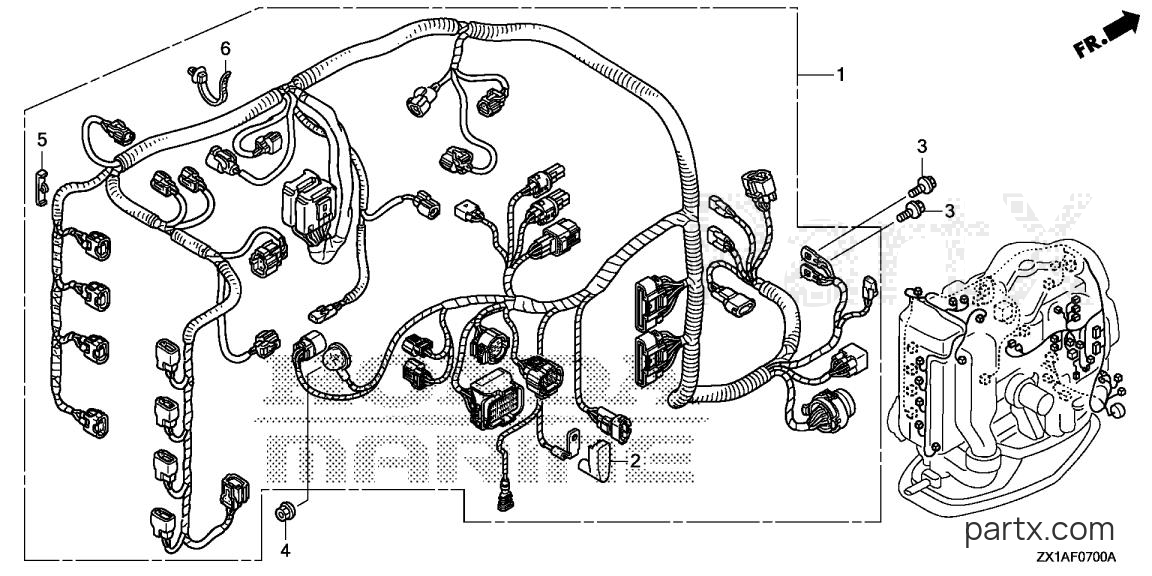

2007 And Later Marine Engine BF - BF115DK1 XA WIRE HARNESS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

001

Honda

WIRE HARNESS, MAIN32100-ZX1-000

Required: 1

WIRE HARNESS ASSY., MAIN

~~$1072.42~~

$911.56

You save $160.86

More details

001

Honda

WIRE HARNESS, MAIN32100-ZX1-020

Required: 1

WIRE HARNESS ASSY., MAIN

~~$1050.50~~

$892.92

You save $157.58

More details

002

Honda

COVER B, TERMINAL32414-ZY6-300

Required: 1

COVER B, TERMINAL (L)

~~$5.50~~

$4.68

You save $0.83

More details

-50%

003

Honda

BOLT, FLANGE (6X12)90013-ZW9-000

Required: 2

BOLT, FLANGE (6X12)

In stock

Only 4 remaining

~~$1.96~~

$0.98

You save $0.98

More details

004

Honda

NUT-WASHER (6MM)90304-ZY3-000

Required: 1

NUT-WASHER (6MM)

~~$1.18~~

$1.00

You save $0.18

More details

005

Honda

CLIP, WIRE HARNESS90653-ZY3-003

Required: 3

CLIP, WIRE HARNESS

~~$3.22~~

$2.74

You save $0.48

More details

006

Honda

CLIP (145MM)91541-S0A-003

Required: 22

CLIP, HARNESS BAND (145MM) (BLACK)

~~$4.84~~

$4.11

You save $0.73

More details
