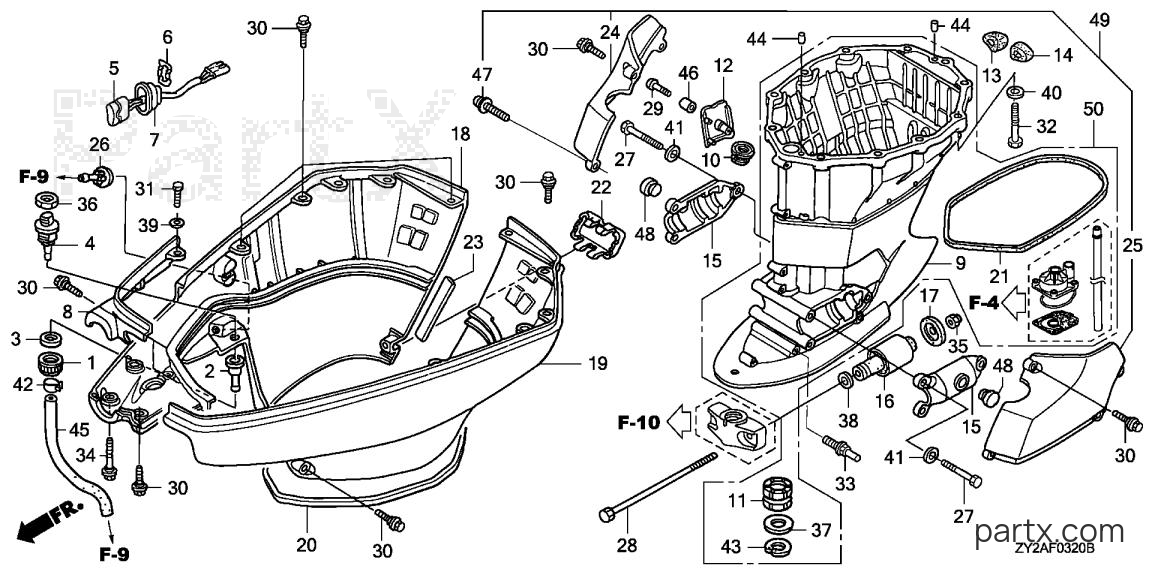

2007 And Later Marine Engine BF - BF225AK0 XA EXTENSION CASE diagram
001
Honda
NUT, WATER MOUTH19270-ZY3-000
Required: 1
NUT, WATER MOUTH
N
$14.72
You save $2.60
002
Honda
JOINT, WATER HOSE19271-ZY3-000
Required: 1
JOINT, WATER HOSE
N
$10.00
You save $1.76
003
Honda
SEAT, WATER MOUTH19272-ZY3-000
Required: 1
SEAT, WATER MOUTH
N
$4.57
You save $0.81
004
Honda
CAP, WATER JOINT19289-ZY3-000
Required: 1
CAP, WATER JOINT
N
$3.33
You save $0.59
005
Honda
SWITCH, POWER TILT35640-ZY3-013
Required: 1
SWITCH ASSY., POWER TILT
N
$55.13
You save $9.73
006
Honda
STAY35645-ZY3-000
Required: 1
STAY, POWER TILT SWITCH
N
$10.95
You save $1.93
007
Honda
GROMMET40114-ZY3-010
Required: 1
GROMMET, POWER TILT SWITCH
N
$13.28
You save $2.34
008
Honda
COVER, FR. *NH282MU*40151-ZY3-000ZA
Required: 1
COVER, FR. SEPARATE *NH282MU*(OYSTER SILVER METALLIC-U)
N
$171.21
You save $30.21
009
Required: 1
CASE, EXTENSION *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
Price unavailable
010
Honda
RUBBER, DRAIN PLUG40209-ZW1-000
Required: 1
RUBBER, DRAIN PLUG
N
$16.88
You save $2.98
011
Honda
BUSH, VERTICAL SHAFT40210-ZY3-610
Required: 1
BUSH, VERTICAL SHAFT
N
$35.63
You save $6.29
012
Required: 1
COVER, DRAIN PLUG *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
Price unavailable
012
Honda
CVR, DRAIN *NH282MU*40212-ZY3-611ZA
Required: 1
COVER, DRAIN PLUG *NH282MU* (XL)(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$34.83
You save $6.15
013
Honda
SEAL, R. IDOL PORT40225-ZY3-010
Required: 1
SEAL, R. IDOL PORT
N
$9.54
You save $1.68
014
Honda
SEAL, L. IDOL PORT40226-ZY3-010
Required: 1
SEAL, L. IDOL PORT
N
$9.54
You save $1.68
015
Honda
HOUSING, MOUNTING50111-ZY3-020
Required: 2
HOUSING, MOUNTING (LOWER)
N
$71.95
You save $12.70
016
Honda
MNT, RUBBER (LOWER)50155-ZY3-000
Required: 2
MOUNT, RUBBER (LOWER)
N
$97.02
You save $17.12
017
Honda
STOPPER, MOUNT50157-ZY3-010
Required: 2
STOPPER, MOUNT (LOWER)
N
$15.83
You save $2.79
018
Required: 1
COVER, R. ENGINE (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
Price unavailable
018
Honda
COVER, R. *NH282MU*63710-ZY3-A03ZA
Required: 1
COVER, R. ENGINE (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$356.10
You save $62.84
019
Honda
CVR,ENG L UNDER63715-ZY3-040ZA
Required: 1
CVR,ENG L UNDER
N
$364.06
You save $64.25
020
Honda
SEAL A, COVER63718-ZY3-000
Required: 1
SEAL A, COVER (LOWER)
N
$32.79
You save $5.79
021
Honda
SEAL B, COVER63719-ZY3-000
Required: 1
SEAL B, COVER (LOWER)
N
$14.08
You save $2.48
022
Honda
CAP, COVER *NH282MU*63722-ZY3-010ZA
Required: 1
CAP, COVER (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$43.71
You save $7.71
023
Honda
SEAL C, COVER63728-ZY3-000
Required: 1
SEAL C, COVER (LOWER)
N
$2.48
You save $0.44
024
Honda
COVER, R. *NH282MU*63731-ZY3-A12ZA
Required: 1
COVER, R. MOUNTING (LOWER) *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
$174.73
You save $30.83
025
Required: 1
COVER, L. MOUNTING (LOWER) *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
Price unavailable
025
Honda
COVER, L. *NH282MU*63736-ZY3-A12ZA
Required: 1
COVER, L. MOUNTING (LOWER) *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
$177.79
You save $31.37
026
Required: 1
GROMMET, WATER CHECK
N
Price unavailable
027
Honda
BOLT, HEX. (10X35)90102-ZY3-A00
Required: 6
BOLT, HEX. (10X35)
N
$7.21
You save $1.27
028
Honda
BOLT, HEX. (14X180)90105-ZY3-010
Required: 2
BOLT, HEX. (14X180)
N
$67.05
You save $11.83
029
Honda
SCREW (6X35)90110-ZV5-000
Required: 1
SCREW, SPECIAL (6X35)
N
$3.79
You save $0.67
030
Honda
BOLT, SPECIAL (6X17)90111-ZY3-000
Required: 27
BOLT, SPECIAL (6X17)
N
$2.26
You save $0.56
-50%
031
Honda
BOLT, HEX. (6X25)90113-ZV5-000
Required: 2
BOLT, HEX. (6X25)
N
In stock
Only 1 remaining
$1.73
You save $1.73
032
Honda
BOLT, HEX. (12X50)90122-ZY3-000
Required: 11
BOLT, HEX. (12X50)
N
$6.97
You save $1.23
033
Honda
BOLT, SPECIAL (6X12)90129-ZY3-A00
Required: 2
BOLT, SPECIAL (6X12)
N
$2.69
You save $0.47
034
Honda
BOLT, SPECIAL (6X37)90132-ZY3-000
Required: 2
BOLT, SPECIAL (6X37)
N
$3.62
You save $0.64
035
Honda
NUT (14MM)90302-ZY3-000
Required: 2
NUT, SELF-LOCK (14MM)
N
$26.06
You save $4.60
036
Honda
NUT, HEX. (16MM)90302-921-000
Required: 1
NUT, HEX. (16MM)
N
$4.64
You save $0.82
037
Honda
WASHER (30MM)90503-ZY3-610
Required: 1
WASHER (30MM)
N
$9.06
You save $1.60
038
Honda
WASHER, PLAIN (14MM)90511-ZY3-000
Required: 2
WASHER, PLAIN (14MM)
N
$3.86
You save $0.68
039
Honda
WASHER (6MM)90512-921-010
Required: 2
WASHER (6MM)
N
$1.21
You save $0.21
040
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 11
WASHER, PLAIN (12MM)
N
$3.14
You save $0.78
041
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 6
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
042
Honda
CLIP, TUBE (B12.5)90605-ZV4-000
Required: 1
CLIP, TUBE (B12.5)
N
$1.55
You save $0.27
043
Honda
CIRCLIP (INNER) (43)90652-ZY3-000
Required: 1
CIRCLIP (INNER) (43)
N
$12.33
You save $2.18
044
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 2
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
045
Honda
TUBE KIT,WATER JO04601-ZVL-000
Required: 1
TUBE KIT,WATER JO
N
$13.28
You save $2.34
046
Honda
COLLAR (6X10.5X25)91563-ZV5-000
Required: 1
COLLAR, DISTANCE (6X10.5X25)
N
$7.06
You save $1.25
047
Honda
SCREW, PAN (6X25)93500-06025-4J
Required: 1
SCREW, PAN (6X25)
N
$1.89
You save $0.33
048
Honda
RUBBER C95011-63000
Required: 2
RUBBER C, STAND STOPPER
N
$4.45
You save $0.79
050
Required: 1
CASE KIT, EXTENSION *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
