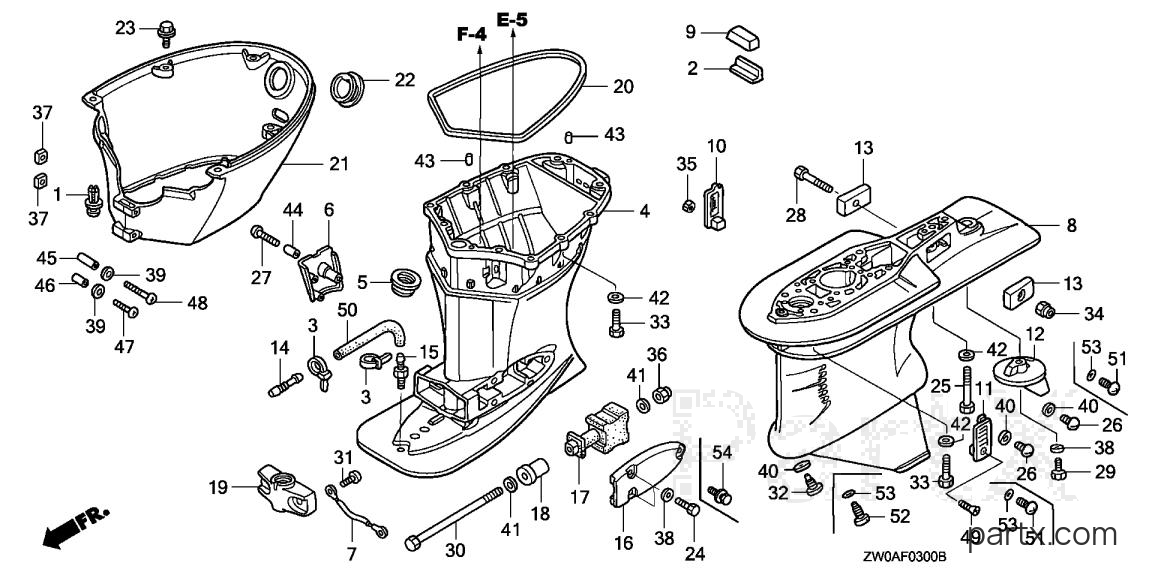

2006 Marine Engine BF - BF90A6 JRTA GEAR CASE - EXTENSION CASE diagram
001
Honda
CLIP, FUEL PIPE17738-SP0-003
Required: 2
CLIP, FUEL PIPE (BLACK)
N
$9.21
You save $1.63
002
Honda
PLATE19286-ZW1-B00
Required: 1
PLATE, RUBBER SETTING
N
$7.11
You save $1.25
003
Honda
BAND, WIRE32161-KM3-003
Required: 2
BAND, WIRE
N
$2.94
You save $0.52
004
Honda
CASE *NH282MU*40201-ZW1-020ZA
Required: 1
CASE, EXTENSION *NH282MU* (L)(OYSTER SILVER METALLIC-U)
N
$995.69
You save $175.71
005
Honda
RUBBER, DRAIN PLUG40209-ZW1-000
Required: 1
RUBBER, DRAIN PLUG
N
$16.88
You save $2.98
006
Required: 1
COVER, DRAIN PLUG *NH282MU*(OYSTER SILVER METALLIC-U)
N
Price unavailable
007
Required: 1
WIRE, LEAD (1.2X116MM)
N
Price unavailable
008
Required: 1
CASE, GEAR *NH282MU*(OYSTER SILVER METALLIC-U) (NA USE ALT: 41101-ZW1-B05ZA)
N
Price unavailable
008
Honda
CASE, GEAR *NH282MU*41101-ZW1-B06ZA
Required: 1
CASE, GEAR *NH282MU*(OYSTER SILVER METALLIC-U)
N
$949.97
You save $167.64
009
Honda
GROMMET, GEAR CASE41102-ZW1-B00
Required: 1
GROMMET, GEAR CASE
N
$7.11
You save $1.25
010
Honda
SCREEN, R. WATER41104-ZV5-000
Required: 1
SCREEN, R. WATER
N
$8.65
You save $1.53
011
Honda
SCREEN, L. WATER41105-ZV5-000
Required: 1
SCREEN, L. WATER
N
$8.65
You save $1.53
012
Honda
TAB, TRIM *NH282MU*41107-ZW1-B01ZA
Required: 1
TAB, TRIM *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
$42.81
You save $7.55
013
Honda
METAL, ANODE41109-ZW1-B00
Required: 2
METAL, ANODE
N
$20.48
You save $3.62
014
Honda
END, NIPPLE41171-ZV5-000
Required: 1
END, NIPPLE
N
$6.83
You save $1.21
015
Honda
NIPPLE, SENSOR41172-ZV5-000
Required: 1
NIPPLE, SENSOR
N
$8.65
You save $1.53
016
Honda
HOUSING *NH282MU*50111-ZW1-010ZA
Required: 2
HOUSING, MOUNTING (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$60.50
You save $10.68
017
Required: 2
RUBBER, MOUNT (LOWER) (NOT AVAILABLE)
N
Price unavailable
018
Honda
COLLAR, MOUNTING50156-ZW1-010
Required: 2
COLLAR, MOUNTING (LOWER)
N
$19.79
You save $3.49
019
Honda
HOUSING *NH282MU*50161-ZW1-020ZA
Required: 1
HOUSING, CENTER MOUNTING (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$131.22
You save $23.16
020
Honda
SEAL B, COVER63719-ZW5-000
Required: 1
SEAL B, COVER (LOWER)
N
$10.76
You save $1.90
021
Required: 1
COVER (LOWER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
Price unavailable
022
Honda
GROM, COVER (LOWER)63719-ZW1-000
Required: 1
GROMMET, COVER (LOWER)
N
$14.96
You save $2.64
023
Honda
BOLT, FLANGE (6X12)90056-ZY9-M01
Required: 3
BOLT, FLANGE (6X12)
N
$1.24
You save $0.22
024
Required: 6
BOLT, HEX. (8X30) (NOT AVAILABLE)
N
Price unavailable
025
Honda
BOLT, HEX. (10X80)90104-ZW1-900
Required: 1
BOLT, HEX. (10X80)
N
$14.67
You save $2.59
026
Honda
BOLT, OIL CHECK90105-ZVA-000
Required: 2
BOLT, OIL CHECK
N
$4.76
You save $0.84
027
Honda
SCREW (6X35)90110-ZV5-000
Required: 1
SCREW, SPECIAL (6X35)
N
$3.79
You save $0.67
028
Honda
BOLT, HEX. (6X32)90111-881-000
Required: 1
BOLT, HEX. (6X32)
N
$3.28
You save $0.58
029
Honda
BOLT, HEX. (8X25)90115-ZV5-000
Required: 1
BOLT, HEX. (8X25)
N
$4.32
You save $0.76
030
Honda
BOLT, HEX. (12X225)90118-ZY6-000
Required: 2
BOLT, HEX. (12X225)
N
$44.05
You save $7.77
031
Honda
SCREW, PAN (6X8)90119-ZV5-000
Required: 2
SCREW, PAN (6X8)
N
$1.87
You save $0.33
032
Honda
BOLT, DRAIN (8MM)90120-ZV5-003
Required: 1
BOLT, DRAIN PLUG (8MM)
N
$6.75
You save $1.19
033
Honda
BOLT, HEX. (10X40)90123-ZV5-010
Required: 14
BOLT, HEX. (10X40)
N
$7.36
You save $1.30
034
Honda
NUT, SELF-LOCK (6MM)90205-PP9-020
Required: 1
NUT, SELF-LOCK (6MM)
N
$10.01
You save $1.77
035
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 1
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
036
Honda
NUT (12MM)90308-ZW1-003
Required: 2
NUT, SELF-LOCK (12MM)
N
$11.49
You save $2.03
037
Honda
NUT, PLATE (5MM)90311-ZV5-000
Required: 2
NUT, PLATE (5MM)
N
$8.65
You save $1.53
038
Honda
WASHER, PLAIN (8MM)90401-ZW1-000
Required: 7
WASHER, PLAIN (8MM)
N
$2.53
You save $0.45
039
Honda
WASHER, PLAIN (5MM)90452-GK4-600
Required: 2
WASHER, PLAIN (5MM)
N
$1.44
You save $0.26
040
Honda
WASHER, NYLON (8MM)90507-921-000
Required: 3
WASHER, NYLON (8MM)
N
In stock
Only 5 remaining
$1.00
You save $0.18
041
Honda
WASHER, PLAIN (12MM)90559-ZW1-000
Required: 4
WASHER, PLAIN (12MM)
N
$6.39
You save $1.13
042
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 15
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
043
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 2
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
044
Honda
COLLAR (6X10.5X25)91563-ZV5-000
Required: 1
COLLAR, DISTANCE (6X10.5X25)
N
$7.06
You save $1.25
045
Honda
COLLAR (5X7X38)91568-ZV5-000
Required: 1
COLLAR, DISTANCE (5X7X38)
N
$4.39
You save $0.77
046
Honda
COLLAR (5X7X23)91569-ZV5-000
Required: 1
COLLAR, DISTANCE (5X7X23)
N
$5.46
You save $0.96
047
Honda
SCREW, PAN (5X30)93500-05030-4J
Required: 1
SCREW, PAN (5X30)
N
$1.92
You save $0.34
048
Honda
SCREW, PAN (5X45)93500-05045-4J
Required: 1
SCREW, PAN (5X45)
N
$2.82
You save $0.50
049
Honda
SCREW, OVAL (5X45)93700-05045-4J
Required: 1
SCREW, OVAL (5X45)
N
$2.21
You save $0.39
050
Honda
BULK HOSE (5X3000)95005-50003-30M
Required: 1
BULK HOSE, VACUUM (5X3000) OEM CUT SIZE: (5X200)
N
$25.02
You save $4.42
051
Honda
BOLT, OIL CHECK90101-ZW9-003
Required: 2
BOLT, OIL CHECK
N
$2.98
You save $0.74
052
Honda
BOLT, DRAIN PLUG90120-ZY3-000
Required: 1
BOLT, DRAIN PLUG
N
$16.22
You save $2.86
053
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 3
O-RING (6.9X1.45)
N
$1.06
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
