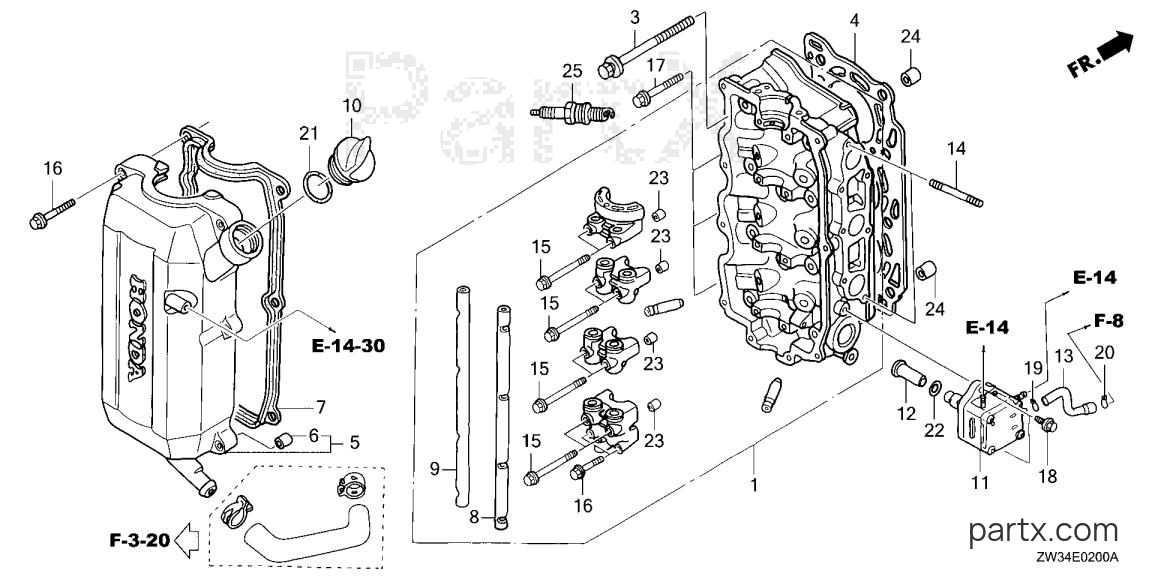

2007 And Later Marine Engine BF - BF50AK0 LRTA CYLINDER HEAD diagram
001
Honda
CYL HEAD BARE *NH8*12200-ZW4-H01ZA
Required: 1
CYLINDER HEAD ASSY. BARE *NH8*(DARK GRAY)
N
$1006.48
You save $177.62
002
Honda
GUIDE, VALVE (OS)12205-ZV5-325
Required: 6
GUIDE, VALVE (OVER SIZE)
N
$14.16
You save $2.50
003
Honda
BOLT-WASHER (10X85)12228-ZV5-004
Required: 8
BOLT-WASHER (10X85)
N
$9.06
You save $1.60
004
Honda
GASKET, CYL HD12251-ZW4-H01
Required: 1
GASKET, CYLINDER HEAD
N
$39.34
You save $6.94
005
Honda
COVER, CYLINDER HEAD12310-ZZ5-M01
Required: 1
COVER, CYLINDER HEAD
N
$140.67
You save $24.83
006
Honda
COLLAR, HEAD COVER12314-ZV5-300
Required: 7
COLLAR, HEAD COVER
N
$5.46
You save $0.96
007
Honda
GASKET, HEAD COVER12391-ZV5-010
Required: 1
GASKET, HEAD COVER
N
$21.84
You save $3.86
008
Honda
SHAFT14631-ZV5-000
Required: 1
SHAFT, IN. ROCKER ARM
N
$46.63
You save $8.23
009
Honda
SHAFT14632-ZV5-000
Required: 1
SHAFT, EX. ROCKER ARM
N
$46.63
You save $8.23
010
Honda
CAP, OIL15611-921-000
Required: 1
CAP, OIL (YELLOW)
N
$11.46
You save $2.02
011
Honda
PUMP ASSY., FUEL16700-ZW1-004
Required: 1
PUMP ASSY., FUEL (MSDS)
N
$131.85
You save $23.27
012
Honda
LIFTER, FUEL PUMP16716-ZV5-000
Required: 1
LIFTER, FUEL PUMP
N
$10.40
You save $1.84
013
Required: 1
TUBE B, FUEL (NOT AVAILABLE)
N
Price unavailable
014
Required: 2
BOLT, STUD (6X28)
N
Price unavailable
014
Honda
BOLT, STUD (6X28)90006-ZZ5-M01
Required: 2
BOLT, STUD (6X28)
N
$1.55
You save $0.27
015
Honda
BOLT, FLANGE (6X70)90018-ZV5-000
Required: 8
BOLT, FLANGE (6X70)
N
$2.94
You save $0.52
016
Honda
BOLT, FLANGE (6X35)90019-ZW9-000
Required: 9
BOLT, FLANGE (6X35)
N
$2.55
You save $0.45
017
Honda
BOLT, FLANGE (8X40)90055-ZZ5-M01
Required: 3
BOLT, FLANGE (8X40)
N
$2.11
You save $0.37
018
Honda
BOLT, FLANGE (6X20)90068-ZZ5-M01
Required: 2
BOLT, FLANGE (6X20)
N
$1.48
You save $0.26
019
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 1
CLIP, TUBE (B10)
N
$1.60
You save $0.28
020
Honda
CLIP, TUBE (B12)90604-ZV0-000
Required: 1
CLIP, TUBE (B12)
N
$1.55
You save $0.27
021
Honda
O-RING (26X2.7)91301-805-000
Required: 1
O-RING (26X2.7)
N
$4.13
You save $0.73
-50%
022
Honda
O-RING (20.8X2.4)91351-MG7-003
Required: 1
O-RING (20.8X2.4)
N
In stock
Only 2 remaining
$1.66
You save $1.66
023
Honda
PIN, DOWEL (8X14)94301-08140
Required: 8
PIN, DOWEL (8X14)
N
$2.33
You save $0.41
024
Honda
PIN A, DOWEL (12X16)94301-12160
Required: 2
PIN A, DOWEL (12X16)
N
$2.55
You save $0.45
024
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
N
$2.33
You save $0.41
025
Honda
SPARK PLUG (DR7EA)98069-5771P
Required: 3
SPARK PLUG (DR7EA) (NGK)
N
$2.38
You save $0.60
-50%
025
Honda
S/PLG (X22ESR-U)98069-57726
Required: 3
SPARK PLUG (X22ESR-U) (DENSO)
N
In stock
Only 1 remaining
$1.49
You save $1.49
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
